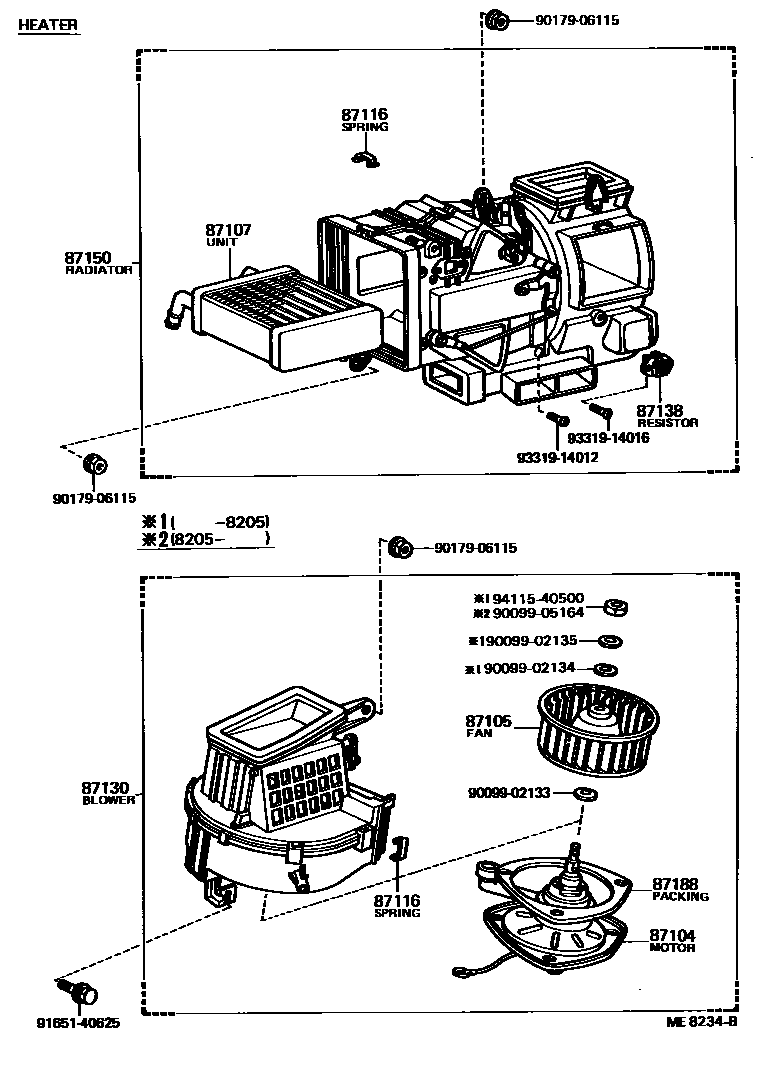

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1 0002 1

87104MOTOR SUB-ASSY, HEATER BLOWER

main87104-14060iRT133;RT130,132,TT13#,XT130..RHD197809-198301

main87104-14070iRT130,132,TT13#..LHD..(EUR,GEN)197809-198205

87105FAN SUB-ASSY, HEATER BLOWER

main87105-14020iRT133;RT130,132,TT13#,XT130..RHD197809-198301

main87105-14030iRT130,132,TT13#..LHD..(EUR,GEN)197809-198205

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-20230iRT13#,TT13#..RHD197809-198112

main87107-20250iRT130,132,TT13#..LHD..(EUR,GEN)197809-198205

87116SPRING, HEATER CASE FASTENING

main87116-14010×12iRT130,132,TT13#..EUR,GEN197809-198205

87130BLOWER ASSY, HEATER, FRONT

main87130-20100iRT13#,TT13#..RHD197809-198112

main87130-20110iRT130,132,TT13#..LHD..(EUR,GEN)197809-198205

87138RESISTOR, HEATER BLOWER

main87138-14040iRT13#,TT13#..EUR,GEN197809-198008

main87138-14050iRT132,TT13#..LHD198008-198205

main87138-20050iRT132,133,TT13#..RHD198008-198112

87150RADIATOR ASSY, HEATER

main87150-20210iRT13#,TT13#..RHD197809-198008

main87150-20220iRT13#,TT132..LHD..(EUR,GEN)197809-197906

main87150-20221iRT13#,TT13#..LHD..(EUR,GEN)197906-198008

main87150-20230iRT132,133,TT13#..RHD198008-198112

main87150-20240iRT132,TT13#..LHD198008-198205

87188PACKING, HEATER BLOWER MOTOR

main87127-14010iRT130,132,TT13#..EUR,GEN197809-198205

9009902133

main90099-02133

9009902134

main90099-02134

9009902135

main90099-02135

9009905164

main90099-05164

9017906115

main90179-06115

9165140625

main91651-40625

9331914012

main93319-14012

9331914016

main93319-14016

9411540500

main94115-40500

17 parts on this diagram · 2 diagrams in section
