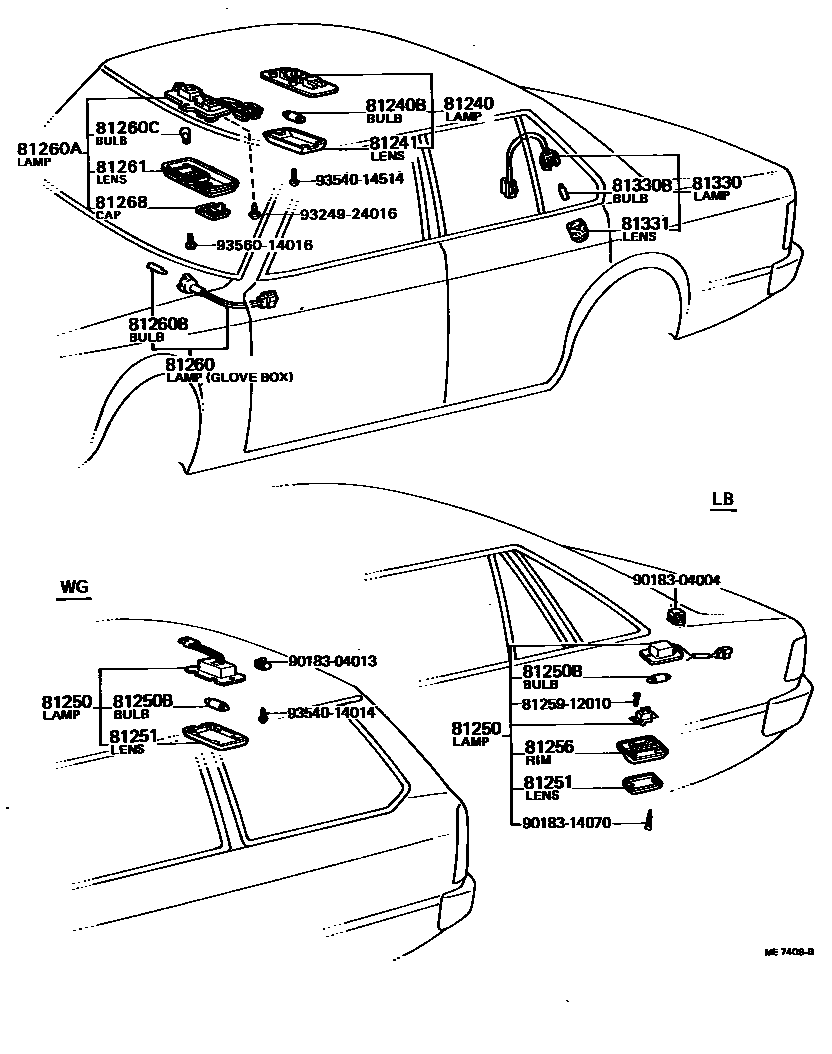

INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-16010-05iRT130,TT133..SED..LEF..GEN; RT132..LNK; TT132..LNK197809-198008

BEIGE,BEIGE

main81240-16010-08iRT130,TT133..SED..LEF..GEN; RT132..LNK; TT132..LNK197809-198008

IVORY,IVORY

main81240-20060-05iRT13#,TT13#..WG; RT130,TT133..LNK;RT130..SED..LEF..PHL; XT130;RT132..SED..LEF197809-198008

BEIGE,BEIGE

main81240-20060-08iRT13#,TT132..WG; RT130,TT133..LNK;RT130..SED..LEF..PHL; XT130;RT132..SED..LEF197809-198008

IVORY,IVORY

81240BBULB, ROOM LAMP, NO.1

main99132-12100iRT13#,TT13#,XT130197809-198301

12V 10W,12V 10W

81241LENS, ROOM LAMP, NO.1

main81241-16010iRT130,TT133..SED..LEF..GEN; RT132..LNK; TT132..LNK197809-198008

main81241-20060iRT13#,TT13#..WG; RT130,TT133..LNK;RT130..SED..LEF..PHL; RT132..SED..LEF197809-198008

81250LAMP ASSY, ROOM, NO.2

main81250-20010-01iRT132,133,TT132..LB197809-198112

BLACK,BLACK,TRIM2#

main81250-20010-02iRT132,133,TT132..LB197809-198112

D-WINE,RED/MAROON,TRIM3#

main81250-20010-05iRT132,TT132..LB197809-198008

BEIGE,BEIGE,TRIM4#

main81250-20010-06iRT132,133,TT132..LB198008-198112

LIGHT BROWN,BROWN,TRIM4#

main81250-23010iRT130,132,TT13#,XT130..WG197809-198301

81250BBULB, ROOM LAMP, NO.2

main90981-11004iRT130,132,TT13#,XT130..WG197809-198301

12V 10W,12V 10W

main99132-13050iRT132,133,TT132..LB197809-198112

12V 5W,12V 5W

81251LENS, ROOM LAMP, NO.2

main81231-30010iRT132,133,TT132..LB197809-198112

main81251-23010iRT130,132,TT13#,XT130..WG197809-198301

81256RIM, ROOM LAMP, NO.2

main81256-12010iRT132,133,TT132..LB197809-198112

81260LAMP ASSY, GLOVE BOX

main81260-22030iTT133;RT13#,TT132..DLX,GL197809-198008

81260ALAMP ASSY, MAP

main81260-20060iTT132..GL198008-198108

81260BBULB(FOR GLOVE BOX)

main90981-11018iTT133;RT13#,TT132..DLX,GL197809-198008

12V 1.2W W/O SOCKET,12V 1.4W

81260CBULB(FOR MAP LAMP)

main90981-11019iTT132..GL198008-198108

12V 10W

81261LENS AND COVER, MAP LAMP

main81261-20060iTT132..GL198008-198108

81268CAP MAP LAMP

main81268-20060iTT132..GL198008-198108

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-22030iRT13#,TT13#..(HT,SED,WG)..(DLX,GL)197809-198008

81330BBULB, LUGGAGE COMPARTMENT LAMP

main99132-12050iRT13#,TT13#..(HT,SED,WG)..(DLX,GL)197809-198008

12V 5W,12V 5W

81331LENS, LUGGAGE COMPARTMENT LAMP

main81331-22030iRT13#,TT13#..(HT,SED,WG)..(DLX,GL)197809-198008

8125912010

main81259-12010

9018304004

main90183-04004

9018304013

main90183-04013

9018314070

main90183-14070

9324924016

main93249-24016

9354014014

main93540-14014

9354014514

main93540-14514

9356014016

main93560-14016

24 parts on this diagram · 1 diagram in section
