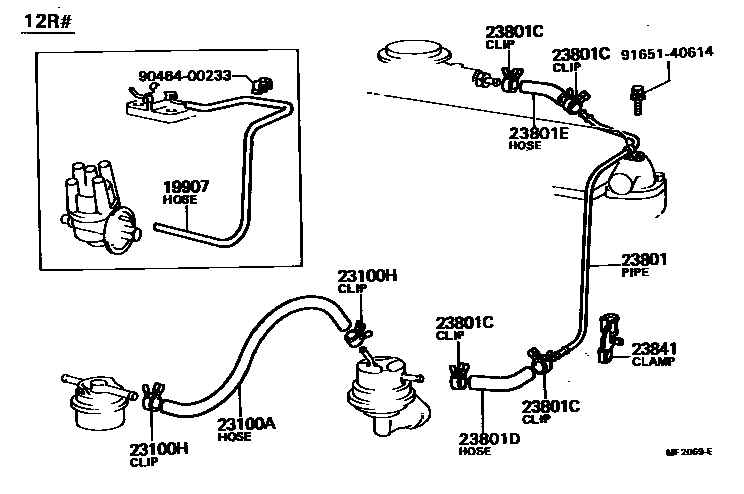

FUEL PIPE & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

19907HOSE, VACUUM, NO.1

main95411-10195i12R#..RT130197809-198112

*H,L=750

main95411-19995i18R..RT132197809-198205

*H,L=850

23100AHOSE, FUEL

main23271-37030i21RC..RT133198108-198301

main90445-12086i2T,3T..TT13#197908-198112

L=280

main95332-06028i12R#..RT130; 3T..TT132..3FC..GEN197809-197904

L=280

main95332-06030i18R..RT132; 3T..TT132..MTM;3T..TT132..3FC..EUR197809-197908

L=300

23100HCLIP(FOR FUEL HOSE)

main96132-30600×2i12R#,18R#..RT13#; 1X..XT130; 2T,3T..TT13#197809-198101

23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1

main23810-32020i1X..XT130197908-198002

main23810-32021i1X..XT130198002-198101

main23810-32040i1X..XT130198101-198102

main23810-32041i1X..XT130198102-198301

main23811-31061i12R#..RT130197809-198002

main23811-31070i12RM..RT130198002-198112

main23811-34031i18R..RT132197809-197908

main23811-34041i18R#..RT132197908-198205

main95332-06020i21RC..RT133198108-198301

L=200(*H,L=190)

main95332-06030i2T,3T..TT13#197908-198112

L=300

main95332-06032i3T..TT132197809-197904

L=400(*H,L=320)

main95332-06040i3T..TT132197904-197908

L=400(*H,L=320)

23801CCLIP(FOR CARBURETOR FUEL HOSE)

main90467-12001×4i12R#..RT130197809-198112

main96132-30600×2i2T,3T..TT13#197809-198112

23801DHOSE, FUEL PIPE, NO.1

main95332-06010i12R#..RT130197809-198112

L=100

main95332-06020i18R#..RT132197908-198205

L=200(*H,L=160)

23801EHOSE, FUEL PIPE, NO.2

main95332-06010i12R#..RT130197809-198112

L=100

23841CLAMP, FUEL PIPE(HOSE), NO.1

main23841-31020i12R#..RT130197809-198112

main23841-34020i18R..RT132197809-197908

main23841-34030i18R#..RT132197908-198205

main23841-35010i21RC..RT133198108-198301

9046400233

main90464-00233

9165140614

main91651-40614

10 parts on this diagram · 7 diagrams in section
