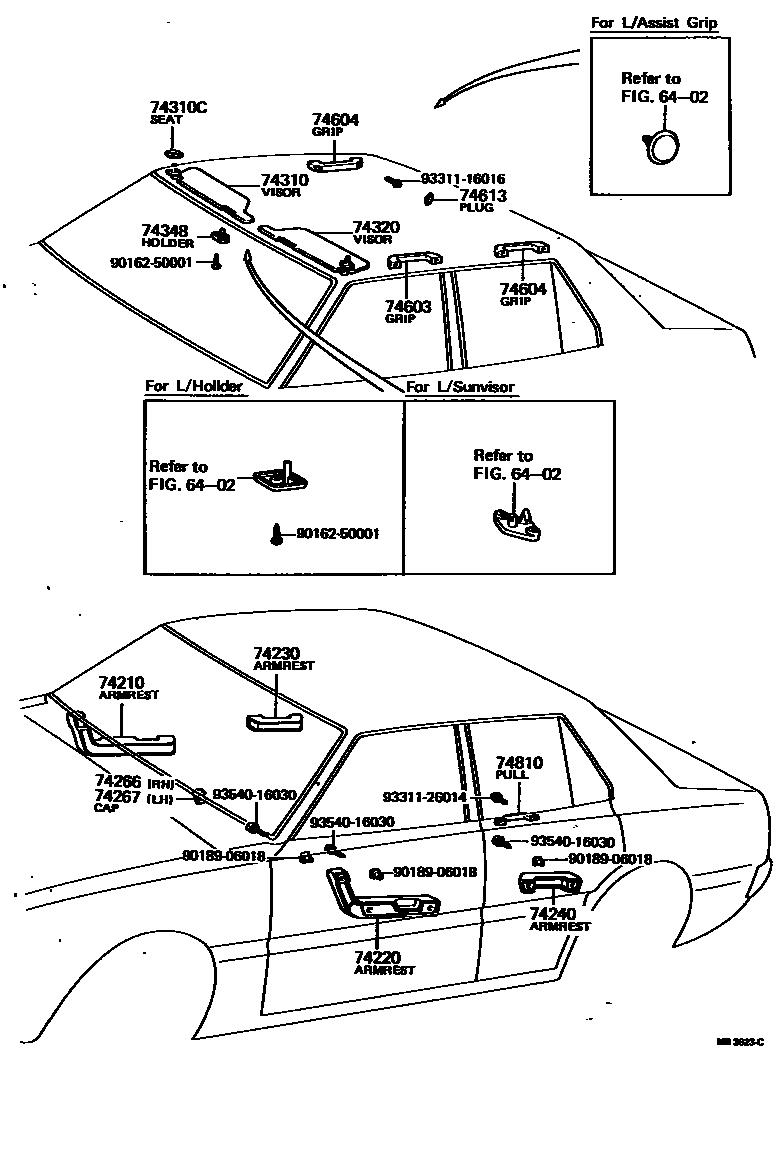

ARMREST & VISOR

0001 1 0002 1

6402ROOF HEADLINING & SILENCER PAD

→ Go to FIG 64-02

74210ARMREST ASSY, FRONT, RH

main74210-20060-01iRT110,112,114197308-197511

BLACK,BLACK,TRIM2#

main74210-20060-03iRT110,112,114197308-197408

GRAY,GRAY,TRIM1#

main74210-20060-04iRT110,112,114197308-197408

BLUE,BLUE,TRIM8#

main74210-20060-05iRT110,114197509-197511

BEIGE,BEIGE,TRIM4#

main74210-20060-06iRT110,112,114197308-197509

BROWN,BROWN,TRIM4#

main74210-20060-11iRT114197701-197808

BLACK,BLACK,TRIM2#

main74210-20060-15iRT114197701-197808

BEIGE,BEIGE,TRIM4#

main74210-20060-16iRT110,114197509-197511

BROWN,BROWN,TRIM4#

main74210-20070-01iRT104..3FC..SA;RT102,104..DLX..(EUR,GEN)197308-197701

BLACK,BLACK,TRIM2#

main74210-20070-03iRT102..DLX197308-197408

GRAY,GRAY,TRIM1#

main74210-20070-04iRT102..DLX197308-197408

BLUE,BLUE,TRIM8#

main74210-20070-05iRT104..3FC..SA;RT104..DLX..(EUR,GEN)197509-197701

BROWN,BEIGE,TRIM4#

main74210-20070-06iRT104..3FC..SA;RT102,104..DLX..(EUR,GEN)197308-197509

OLIVE-BROWN,BROWN,TRIM4#

main74210-20070-16iRT104..3FC..SA;RT104..DLX..(EUR,GEN)197509-197701

BROWN,BROWN,TRIM4#

main74210-20080-01iRT100; RT102,104,116,117,118..STD197308-197511

BLACK,BLACK,TRIM2#

main74210-20080-03iRT100,104; RT102..STD197308-197408

GRAY,GRAY,TRIM1#

main74210-20080-04iRT100,104; RT102..STD197308-197408

BLUE,BLUE,TRIM8#

main74210-20080-05iRT100,110,114; RT102,104,116,118..STD197511-197701

BEIGE,BEIGE,TRIM4#

main74210-20080-06iRT100; RT102,104,116,117,118..STD197308-197509

OLIVE-BROWN,BROWN,TRIM4#

main74210-20080-11iRT100,102,116,118; RT104..STD197701-197905

BLACK,BLACK,TRIM2#

main74210-20080-13iRT100,102,116,118; RT104..STD197701-197905

GRAY,GRAY,TRIM1#

main74210-20080-15iRT100,102,116,118; RT104..STD197701-197905

BEIGE,BEIGE,TRIM4#

main74210-20080-16iRT100; RT102,104,116,118..STD197509-197511

BROWN,BROWN,TRIM4#

main74210-20100-01iRT104..3FC..SA;RT104..DLX..(EUR,GEN)197701-197808

BLACK,BLACK,TRIM2#

main74210-20100-03iRT104..3FC..SA;RT104..DLX..(EUR,GEN)197701-197808

GRAY,GRAY,TRIM1#

main74210-20100-05iRT104..3FC..SA;RT104..DLX..(EUR,GEN)197701-197808

BEIGE,BEIGE,TRIM4#

74220ARMREST ASSY, FRONT, LH

main74220-20060-01iRT110,112,114197308-197511

BLACK,BLACK,TRIM2#

main74220-20060-03iRT110,112,114197308-197408

GRAY,GRAY,TRIM1#

main74220-20060-04iRT110,112,114197308-197408

BLUE,BLUE,TRIM8#

main74220-20060-05iRT110,114197509-197511

BEIGE,BEIGE,TRIM4#

main74220-20060-06iRT110,112,114197308-197509

BROWN,BROWN,TRIM4#

main74220-20060-11iRT114197701-197808

BLACK,BLACK,TRIM2#

main74220-20060-15iRT114197701-197808

BEIGE,BEIGE,TRIM4#

main74220-20060-16iRT110,114197509-197511

BROWN,BROWN,TRIM4#

main74220-20070-01iRT104..3FC..SA;RT102,104..DLX..(EUR,GEN)197308-197701

BLACK,BLACK,TRIM2#

main74220-20070-03iRT102..DLX197308-197408

GRAY,GRAY,TRIM1#

main74220-20070-04iRT102..DLX197308-197408

BLUE,BLUE,TRIM8#

main74220-20070-05iRT104..3FC..SA;RT104..DLX..(EUR,GEN)197509-197701

BEIGE,BEIGE,TRIM4#

main74220-20070-06iRT104..3FC..SA;RT102,104..DLX..(EUR,GEN)197308-197509

OLIVE-BROWN,BROWN,TRIM4#

main74220-20070-16iRT104..3FC..SA;RT104..DLX..(EUR,GEN)197509-197701

BROWN,BROWN,TRIM4#

main74220-20080-01iRT100; RT102,104,116,117,118..STD197308-197511

BLACK,BLACK,TRIM2#

main74220-20080-03iRT100,104; RT102..STD197308-197408

GRAY,GRAY,TRIM1#

main74220-20080-04iRT100,104; RT102..STD197308-197408

BLUE,BLUE,TRIM8#

main74220-20080-05iRT100; RT102,104,116,118..STD197509-197511

BEIGE,BEIGE,TRIM4#

main74220-20080-06iRT100; RT102,104,116,117,118..STD197308-197509

OLIVE-BROWN,BROWN,TRIM4#

main74220-20080-11iRT100,102,116,118; RT104..STD197701-197905

BLACK,BLACK,TRIM2#

main74220-20080-13iRT100,102,116,118; RT104..STD197701-197905

GRAY,GRAY,TRIM1#

main74220-20080-15iRT100,102,116,118; RT104..STD197701-197905

BEIGE,BEIGE,TRIM4#

main74220-20080-16iRT100; RT102,104,116,118..STD197509-197511

BROWN,BROWN,TRIM4#

main74220-20090-01iRT104..3FC..SA;RT104..DLX..(EUR,GEN)197701-197808

BLACK,BLACK,TRIM2#

main74220-20090-03iRT104..3FC..SA;RT104..DLX..(EUR,GEN)197701-197808

GRAY,GRAY,TRIM1#

main74220-20090-05iRT104..3FC..SA;RT104..DLX..(EUR,GEN)197701-197808

BEIGE,BEIGE,TRIM4#

74230ARMREST ASSY, REAR, RH

main74210-20080-01iRT10#,116,117,118..4D197308-197701

BLACK,BLACK,TRIM2#

main74210-20080-03iRT10#..4D197308-197408

GRAY,GRAY,TRIM1#

main74210-20080-04iRT10#..4D197308-197408

BLUE,BLUE,TRIM8#

main74210-20080-05iRT10#,116,118197509-197701

BEIGE,BEIGE,TRIM4#

main74210-20080-06iRT10#,116,117,118..4D197308-197509

OLIVE-BROWN,BROWN,TRIM4#

main74210-20080-11iRT10#,116,118197701-197905

BLACK,BLACK,TRIM2#

main74210-20080-13iRT10#,116,118197701-197905

GRAY,GRAY,TRIM1#

main74210-20080-15iRT10#,116,118197701-197905

BEIGE,BEIGE,TRIM4#

main74210-20080-16iRT10#,116,118197509-197701

BROWN,BROWN,TRIM4#

74240ARMREST ASSY, REAR, LH

main74220-20080-01iRT10#,116,117,118..4D197308-197701

BLACK,BLACK,TRIM2#

main74220-20080-03iRT10#..4D197308-197408

GRAY,GRAY,TRIM1#

main74220-20080-04iRT10#..4D197308-197408

BLUE,BLUE,TRIM8#

main74220-20080-05iRT10#,116,118197509-197701

BEIGE,BEIGE,TRIM4#

main74220-20080-06iRT10#,116,117,118..4D197308-197509

OLIVE-BROWN,BROWN,TRIM4#

main74220-20080-11iRT10#,116,118197701-197905

BLACK,BLACK,TRIM2#

main74220-20080-13iRT10#,116,118197701-197905

GRAY,GRAY,TRIM1#

main74220-20080-15iRT10#,116,118197701-197905

BEIGE,BEIGE,TRIM4#

main74220-20080-16iRT10#,116,118197509-197701

BROWN,BROWN,TRIM4#

74266CAP, DOOR ARMREST, RH

main74266-20010-01iRT104..3FC..SA;RT102,104..DLX..(EUR,GEN)197308-197701

BLACK,BLACK,TRIM2#

main74266-20010-03iRT102..DLX197308-197408

GRAY,GRAY,TRIM1#

main74266-20010-04iRT102..DLX197308-197408

BLUE,BLUE,TRIM8#

main74266-20010-05iRT104..3FC..SA;RT104..DLX..(EUR,GEN)197509-197701

BEIGE,BEIGE,TRIM4#

main74266-20010-06iRT104..3FC..SA;RT102,104..DLX..(EUR,GEN)197308-197509

OLIVE-BROWN,BROWN,TRIM4#

main74266-20010-16iRT104..3FC..SA;RT104..DLX..(EUR,GEN)197509-197701

BROWN,BROWN,TRIM4#

main74266-20020-01iRT110,112,114197308-197701

BLACK,BLACK,TRIM2#

main74266-20020-03iRT110,112,114197308-197408

GRAY,GRAY,TRIM1#

main74266-20020-04iRT110,112,114197308-197408

BLUE,BLUE,TRIM8#

main74266-20020-05iRT110,114197509-197701

BEIGE,BEIGE,TRIM4#

main74266-20020-06iRT110,112,114197308-197509

BROWN,BROWN,TRIM4#

main74266-20020-11iRT114197701-197808

BLACK,BLACK,TRIM2#

main74266-20020-13iRT114197701-197808

GRAY,GRAY,TRIM1#

main74266-20020-15iRT114197701-197808

BEIGE,BEIGE,TRIM4#

main74266-20020-16iRT110,114197509-197701

BROWN,BROWN,TRIM4#

main74266-20030-01iRT104..3FC..SA;RT104..DLX..(EUR,GEN)197701-197808

BLACK,BLACK,TRIM2#

main74266-20030-03iRT104..3FC..SA;RT104..DLX..(EUR,GEN)197701-197808

GRAY,GRAY,TRIM1#

main74266-20030-05iRT104..3FC..SA;RT104..DLX..(EUR,GEN)197701-197808

BEIGE,BEIGE,TRIM4#

74267CAP, DOOR ARMREST, LH

main74267-20010-01iRT104..3FC..SA;RT102,104..DLX..(EUR,GEN)197308-197701

BLACK,BLACK,TRIM2#

main74267-20010-03iRT102..DLX197308-197408

GRAY,GRAY,TRIM1#

main74267-20010-04iRT102..DLX197308-197408

BLUE,BLUE,TRIM8#

main74267-20010-05iRT104..3FC..SA;RT104..DLX..(EUR,GEN)197509-197701

BEIGE,BEIGE,TRIM4#

main74267-20010-06iRT104..3FC..SA;RT102,104..DLX..(EUR,GEN)197308-197509

OLIVE-BROWN,BROWN,TRIM4#

main74267-20010-16iRT104..3FC..SA;RT104..DLX..(EUR,GEN)197509-197701

BROWN,BROWN,TRIM4#

main74267-20020-01iRT110,112,114197308-197701

BLACK,BLACK,TRIM2#

main74267-20020-03iRT110,112,114197308-197408

GRAY,GRAY,TRIM1#

main74267-20020-04iRT110,112,114197308-197408

BLUE,BLUE,TRIM8#

main74267-20020-05iRT110,114197509-197701

BEIGE,BEIGE,TRIM4#

main74267-20020-06iRT110,112,114197308-197509

BROWN,BROWN,TRIM4#

main74267-20020-11iRT114197701-197808

BLACK,BLACK,TRIM2#

main74267-20020-13iRT114197701-197808

GRAY,GRAY,TRIM1#

main74267-20020-15iRT114197701-197808

BEIGE,BEIGE,TRIM4#

main74267-20020-16iRT110,114197509-197701

BROWN,BROWN,TRIM4#

main74267-20030-01iRT104..3FC..SA;RT104..DLX..(EUR,GEN)197701-197808

BLACK,BLACK,TRIM2#

main74267-20030-03iRT104..3FC..SA;RT104..DLX..(EUR,GEN)197701-197808

GRAY,GRAY,TRIM1#

main74267-20030-05iRT104..3FC..SA;RT104..DLX..(EUR,GEN)197701-197808

BEIGE,BEIGE,TRIM4#

74310VISOR ASSY, RH

main74310-20090-03iRT112,114..RHD197308-197402

GRAY,GRAY,TRIM1#

main74310-20090-13iRT112,114..RHD197402-197509

GRAY,GRAY,TRIM1#

main74310-20100-03iRT112..LHD197308-197402

GRAY,GRAY,TRIM1#

main74310-20100-13iRT110,112,114..LHD197402-197511

GRAY,GRAY,TRIM1#

main74310-20110-03iRT10#,116,117,118..RHD197308-197402

GRAY,GRAY,TRIM1#

main74310-20110-13iRT10#,116,117,118..RHD197402-197409

GRAY,GRAY,TRIM1#

main74310-20120-03iRT100,102,116,117..LHD197308-197402

GRAY,GRAY,TRIM1#

main74310-20120-13iRT10#,116,117,118..LHD197402-197508

GRAY,GRAY,TRIM1#

main74310-20121-03iRT10#..EUR,GEN,PHL,SA197701-197905

GRAY,GRAY,TRIM1#,2#

main74310-20121-05iRT10#..EUR,GEN,PHL,SA197701-197905

BEIGE,BEIGE,TRIM4#

main74310-20130iRT104,118..ARL197409-197701

main74310-20130-03iRT104,118..ARL197701-197905

GRAY,GRAY,TRIM1#,2#

main74310-20130-05iRT104,118..ARL197701-197905

BEIGE,BEIGE,TRIM4#

main74310-95504-03iRT110,114..LHD197511-197701

GRAY,GRAY,TRIM1#

main74310-95504-15iRT114197701-197808

BEIGE,BEIGE,TRIM4#

main74310-95504-23iRT114..LHD197701-197808

GRAY,GRAY,TRIM1#,2#,4#,8#

74310CSEAT, VISOR BRACKET

main74319-20010×2iRT104;RT100,102..EUR,GEN,PHL197308-197512

74320VISOR ASSY, LH

main74320-20070-03iRT112,114197308-197402

GRAY,GRAY,TRIM1#

main74320-20070-13iRT110,112,114197402-197511

GRAY,GRAY,TRIM1#

main74320-20090-03iRT10#,116,117,118197308-197402

GRAY,GRAY,TRIM1#

main74320-20090-13iRT10#,116,117,118197402-197409

GRAY,GRAY,TRIM1#

main74320-20091-03iRT10#..EUR,GEN,PHL,SA197701-197905

GRAY,GRAY,TRIM1#,2#

main74320-20091-05iRT10#..EUR,GEN,PHL,SA197701-197905

BEIGE,BEIGE,TRIM4#

main74320-20100iRT104,118..ARL197409-197701

main74320-20100-03iRT104,118..ARL197701-197905

GRAY,GRAY,TRIM1#,2#

main74320-20100-05iRT104,118..ARL197701-197905

BEIGE,BEIGE,TRIM4#

main74320-95504-03iRT110,114197511-197701

GRAY,GRAY,TRIM1#

main74320-95504-15iRT114197701-197808

BEIGE,BEIGE,TRIM4#

main74320-95504-23iRT114197701-197808

GRAY,GRAY,TRIM1#,2#,4#,8#

74348HOLDER, VISOR

main74348-14010-03×2iRT10#,11#197308-197701

GRAY,GRAY,TRIM1#,2#

main74348-14010-13iRT10#,11#197701-197905

GRAY,GRAY,TRIM1#,2#,4#,8#

74603GRIP SUB-ASSY, ASSIST, FRONT

main74603-20010-03iRT10#,11#197308-197701

GRAY,GRAY,TRIM1#,2#

main74603-20010-13iRT10#,11#197701-197905

GRAY,GRAY,TRIM1#,2#

main74603-20010-15iRT10#,11#197701-197905

BEIGE,BEIGE,TRIM4#

74604GRIP SUB-ASSY, ASSIST, REAR

main74603-14010-05×2iRT114197701-197808

BEIGE,BEIGE,TRIM4#

main74603-14010-13×2iRT114197701-197808

GRAY,GRAY,TRIM1#,2#

main74603-20010-03iRT100,104..DLX197509-197701

GRAY,GRAY,TRIM1#,2#

main74603-20010-13×2iRT10#,116,118197701-197905

GRAY,GRAY,TRIM1#,2#

main74603-20010-15×2iRT10#,116,118197701-197905

BEIGE,BEIGE,TRIM4#

74613PLUG, ASSIST GRIP

main74613-10020-03×6iRT10#,11#197308-197509

GRAY,GRAY,TRIM1#,2#

main74613-14010-05×4iRT114197701-197808

BEIGE,BEIGE,TRIM4#

main74613-14010-13×4iRT114197701-197808

GRAY,GRAY,TRIM1#,2#

main74617-12010-03×6iRT10#,11#197509-197701

GRAY,GRAY,TRIM1#,2#

main74617-12010-13×6iRT10#,116,118197701-197905

GRAY,GRAY,TRIM1#,2#

main74617-12010-15×6iRT10#,116,118197701-197905

BEIGE,BEIGE,TRIM4#

74810PULL ASSY, DOOR, INSIDE

main69272-22020iRT100..GEN;RT100..STD..PHL197308-197701

9016250001

main90162-50001

9018906018

main90189-06018

9331112016

main93311-12016

9331126014

main93311-26014

9354016030

main93540-16030

20 parts on this diagram · 2 diagrams in section
