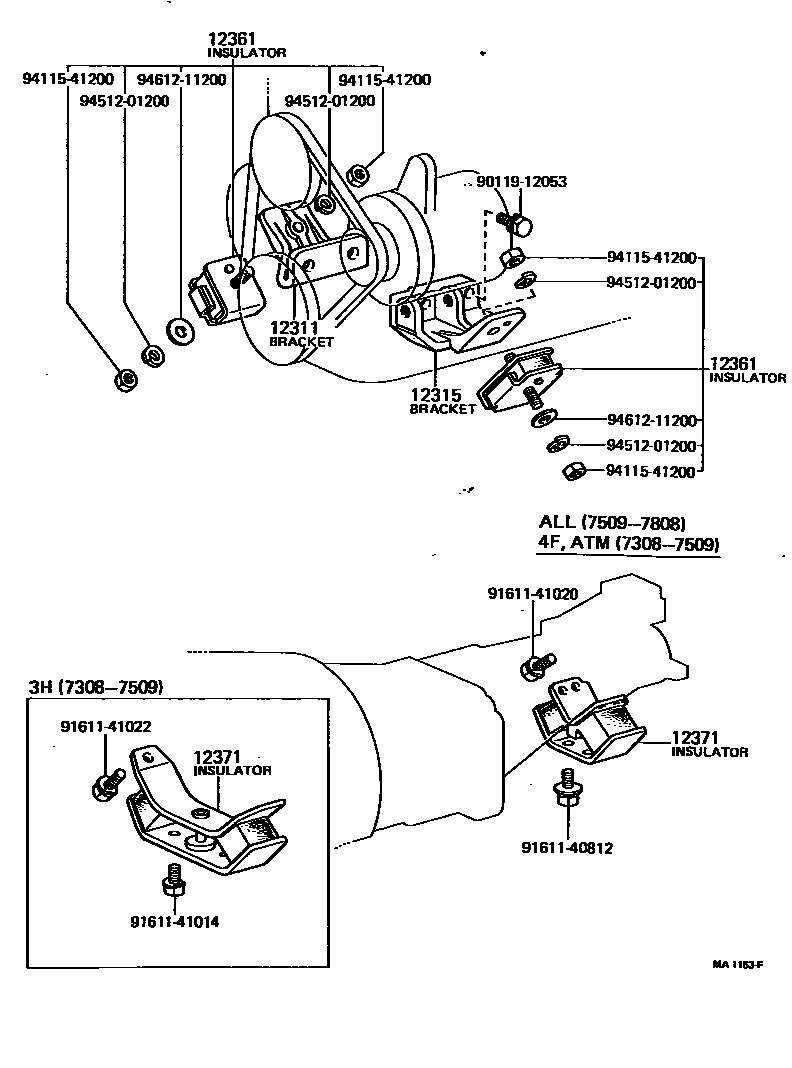

MOUNTING

0001 1 0002 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-30010i12R#..RT100,110,116197308-197808

main12311-33010i16R,18R..RT102,104,112,114,117,118197308-197408

main12311-33011i16R,18R#..RT102,104,114,118197509-197905

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-30020i12R..RT100,110,116197308-197511

main12315-30021i12R#..RT100,110,116197511-197808

main12315-33010i16R,18R..RT102,104,112,114,117,118197308-197408

main12315-33011i16R,18R..RT102,104,112,114,117,118197408-197509

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-39095i16R,18R..RT102,104,112,114,117,118197308-197408

RH

main12361-39096i16R,18R#..RT102,104,114,118197509-197706

RH

main12361-39105×2i12R#..RT100,110,116197308-197808

main12361-39165i16R,18R#..RT102,104,114,118197706-197905

RH

main12362-39035i16R,18R..RT102,104,112,114,117,118197308-197408

LH

main12362-39036i16R,18R#..RT102,104,114,118197509-197706

LH

main12362-39075i16R,18R#..RT102,104,114,118197706-197905

LH

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-33010i12R..RT100,116..3H197308-197509

main12371-34020i16R..RT102,112,117; 18R..RT104,118..3FC197308-197509

main12371-34030i12R,18R..RT100,104,110,114,116,118..4F197308-197509

9011912053

main90119-12053

9161140812

main91611-40812

9161141014

main91611-41014

9161141020

main91611-41020

9161141022

main91611-41022

9411541200

main94115-41200

9451201200

main94512-01200

9461211200

main94612-11200

12 parts on this diagram · 2 diagrams in section
