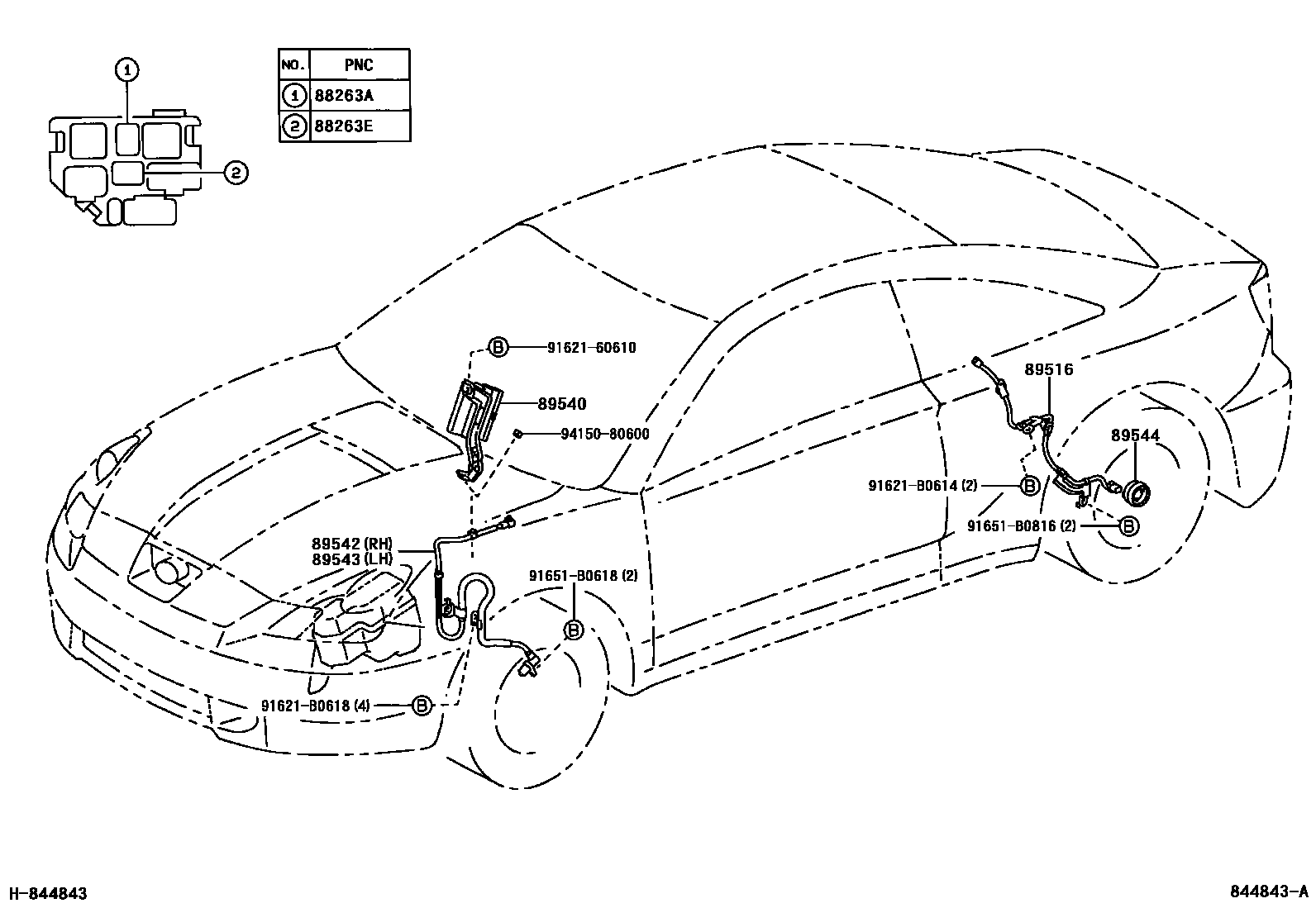

ABS & VSC

0001 1 0002 1

88263ARELAY, SKID CONTROL

main88263-32070iZZT23#199908-200509

88263ERELAY, SKID CONTROL NO.2

main88263-21010iZZT23#200208-200509

main88263-32080iZZT23#199908-200208

89516WIRE, SKID CONTROL SENSOR

main89516-20010iZZT23#199908-200509

RH

main89516-20020iZZT23#199908-200509

LH

89540COMPUTER ASSY, SKID CONTROL

main89540-20450iZZT230..RHD199908-200008

main89540-20451iZZT23#..RHD200008-200109

main89540-20452iZZT23#..RHD200109-200208

main89540-20460iZZT230..LHD199908-200008

main89540-20461iZZT23#..LHD200008-200109

main89540-20462iZZT23#..LHD200109-200208

main89540-20480iZZT23#..RHD200208-200503

main89540-20481iZZT23#..RHD200504-200509

main89540-20490iZZT23#..LHD200208-200503

main89540-20491iZZT23#..LHD200504-200509

89542SENSOR, SPEED, FRONT RH

main89542-20140iZZT23#199908-200509

89543SENSOR, SPEED, FRONT LH

main89543-20140iZZT23#199908-200509

89544SENSOR, SKID CONTROL

main89544-20010iZZT23#200208-200509

NSK

main89544-32030iZZT23#199908-200310

TOYOTA

main89544-32040iZZT23#200301-200509

KOYO

main89544-47010iZZT23#199908-200208

NSK

9162160610

main91621-60610

91621B0614

main91621-B0614

91621B0618

main91621-B0618

91651B0618

main91651-B0618

91651B0816

main91651-B0816

9415080600

main94150-80600

13 parts on this diagram · 2 diagrams in section
