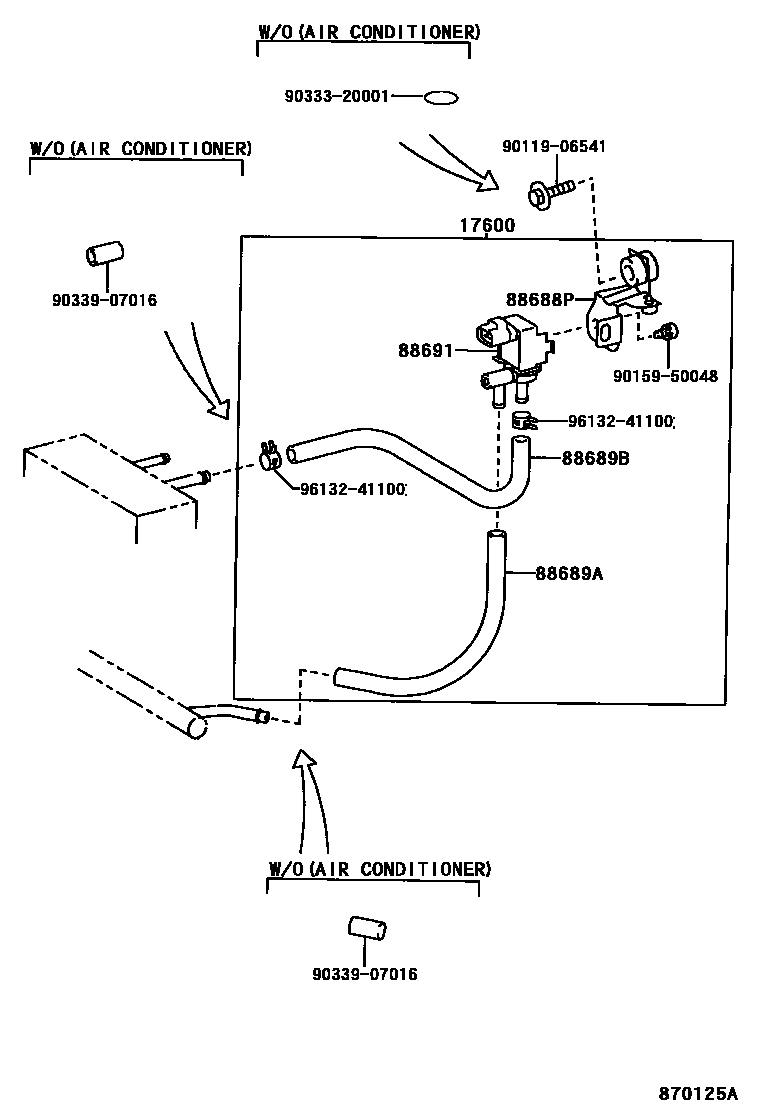

HEATING & AIR CONDITIONING - VACUUM PIPING

0001 1 0002 1 0003 1

17600VALVE ASSY, AIR BY-PASS W/HOSE

main17600-16030i7AFE..AT200199311-199606

main17600-74190i3SGTE..ST205199402-199606

main17600-74200i3SGE..ST202199311-199606

88688PBRACKET (FOR MAGNET VALVE)

main88688-2D560iAT200199311-199606

main88688-2D570iST20#199402-199606

88689AHOSE, COOLER VACUUM NO.1

main17346-74080iST205199402-199606

NO.2

main17346-74090×2iST202199311-199606

main17347-74070iST205199402-199606

NO.1

main88689-20390iAT200199311-199606

L=270

88689BHOSE, COOLER VACUUM NO.2

main88689-17090iAT200199311-199505

L=960

88691VALVE, MAGNET (FOR IDLE UP DEVICE)

main88691-12180iAT200199508-199606

main90910-13001iST20#199311-199606

9011906541

main90119-06541

9015950048

main90159-50048

9033320001

main90333-20001

9033907016

main90339-07016

9613241100

main96132-41100

10 parts on this diagram · 3 diagrams in section
