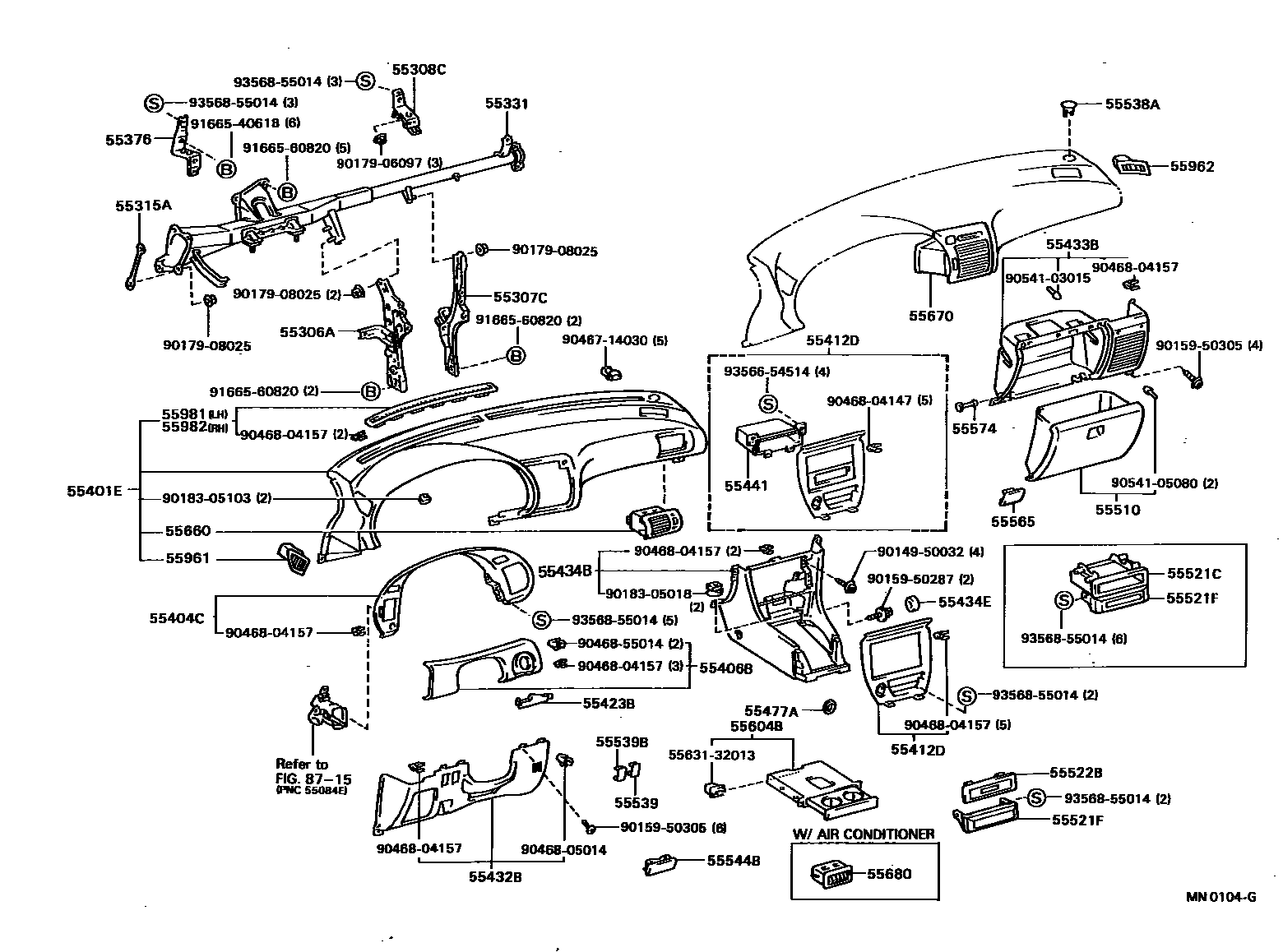

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-20170iST18#..RHD198910-199311

main55306-20190iAT180,ST18#..LHD198910-199311

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-20160iST18#..RHD198910-199311

main55307-20170iAT180,ST18#..LHD198910-199311

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-20160iAT180,ST18#198910-199311

55315ASPACER, INSTRUMENT PANEL, NO.1

main55315-20040iAT180,ST18#198910-199311

T=1.5

main55315-20050iAT180,ST18#198910-199311

T=1.0

main55315-20060iAT180,ST18#198910-199311

T=0.5

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-20120iST18#..RHD198910-199009

main55330-20121iST18#..RHD199009-199311

main55330-20140iAT180,ST18#..LHD198910-199311

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-20070iST18#..RHD198910-199311

main55376-20080iAT180,ST18#..LHD198910-199311

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-20570-03iST18#..RHD198910-199311

SHADOW GRAY,TRIM1#

main55401-20570-04iST182..RHD..LB198910-199311

DARK BLUE,TRIM8#

main55401-20580-03iAT180,ST18#..LHD198910-199311

SHADOW GRAY,TRIM1#

main55401-20580-04iAT180,ST182..LHD..(CP,LB)198910-199311

DARK BLUE,TRIM8#

55404CPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2

main55404-20270iST18#..RHD198910-199311

main55404-20290iAT180,ST18#..LHD198910-199311

55406BPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER

main55406-20040iST18#..RHD198910-199311

main55406-20050iAT180,ST18#..LHD198910-199311

55412DPANEL, INSTRUMENT CLUSTER FINISH, CENTER

main55412-20390iST18#..RHD198910-199311

main55412-20400iST182..LHD..LB198910-199311

W(RADIO)

main55412-20400iST185..LHD;ST182..LHD..CVT198910-199311

main55412-20410iAT180,ST182..LHD..(CP,LB)198910-199311

55423BCOVER, INSTRUMENT CLUSTER FINISH PANEL

main55423-20150iST18#..RHD198910-199311

main55423-20160iAT180,ST18#..LHD198910-199311

55432BPANEL, INSTRUMENT PANEL FINISH, LOWER

main55432-20210-03iAT180,ST18#..LHD198910-199311

SHADOW GRAY,TRIM1#

main55432-20210-04iAT180,ST182..LHD..(CP,LB)198910-199311

DARK BLUE,TRIM8#

55433BPANEL, INSTRUMENT PANEL FINISH, LOWER NO.2

main55433-20110-03iST18#..RHD198910-199311

SHADOW GRAY,TRIM1#

main55433-20110-04iST182..RHD..LB198910-199311

DARK BLUE,TRIM8#

main55433-20120-03iAT180,ST18#..LHD198910-199311

SHADOW GRAY,TRIM1#

main55433-20120-04iAT180,ST182..LHD..(CP,LB)198910-199311

DARK BLUE,TRIM8#

55434BPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER

main55434-20140-03iST18#..RHD198910-199311

SHADOW GRAY,TRIM1#

main55434-20140-04iST182..RHD..LB198910-199311

DARK BLUE,TRIM8#

main55434-20150-03iAT180,ST18#..LHD198910-199311

SHADOW GRAY,TRIM1#

main55434-20150-04iAT180,ST182..LHD..(CP,LB)198910-199311

DARK BLUE,TRIM8#

55434ECAP

main90339-10009-03iAT180,ST18#198910-199311

SHADOW GRAY,TRIM1#

main90339-10009-04iAT180,ST182..CP,LB198910-199311

DARK BLUE,TRIM8#

55441BOX, INSTRUMENT PANEL

main55441-20180iAT180,ST182..LHD..(CP,LB)198910-199311

55477ABEZEL, CIGARETTE LIGHTER HOLE

main55477-20090iAT180,ST18#198910-199311

55510DOOR ASSY, GLOVE COMPARTMENT

main55501-20130-03iAT180,ST18#198910-199311

SHADOW GRAY,TRIM1#

main55501-20130-04iAT180,ST182..CP,LB198910-199311

DARK BLUE,TRIM8#

55521CCOVER, STEREO OPENING

main55521-16030iAT180,ST182..CP,LB198910-199311

55521FCOVER, STEREO OPENING, NO.2

main55521-20130iAT180,ST18#198910-199311

55522BCOVER, RADIO TUNER OPENING

main55522-20060iAT180,ST182..LHD..(CP,LB)198910-199311

55538ACOVER, COOLER SWITCH HOLE

main55538-20060-03iAT180,ST18#198910-199311

SHADOW GRAY,TRIM1#

main55538-20060-04iAT180,ST182..CP,LB198910-199311

DARK BLUE,TRIM8#

55539COVER, SPARE SWITCH HOLE

main55539-20080-03iAT180,ST18#198910-199309

SHADOW GRAY,TRIM1#

main55539-20080-04iAT180,ST182..CP,LB198910-199311

DARK BLUE,TRIM8#

55539BCOVER, SPARE SWITCH HOLE, NO.2

main55539-20080-03iAT180,ST18#198910-199309

SHADOW GRAY,TRIM1#

main55539-20080-04iAT180,ST182..CP,LB198910-199311

DARK BLUE,TRIM8#

55544BCOVER, INSTRUMENT PANEL LOWER REGISTER HOLE

main55544-22030-03iST185198910-199311

SHADOW GRAY,TRIM1#

main55544-22030-14iAT180,ST182..LHD..(CP,LB)198910-199311

DARK BLUE,TRIM8#

55565HANDLE, GLOVE COMPARTMENT DOOR LOCK

main55565-20070-03iAT180,ST18#198910-199309

SHADOW GRAY,TRIM1#

main55565-20070-04iAT180,ST182..CP,LB198910-199311

DARK BLUE,TRIM8#

55574SHAFT, GLOVE COMPARTMENT DOOR HINGE

main55574-10010iAT180,ST18#198910-199311

55604BHOLDER SUB-ASSY, INSTRUMENT PANEL CUP

main55604-20040iAT180,ST18#198910-199311

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-20170-03iST18#..RHD198910-199311

SHADOW GRAY,TRIM1#

main55660-20170-04iST182..RHD..LB198910-199311

DARK BLUE,TRIM8#

main55660-20180-03iAT180,ST18#..LHD198910-199311

SHADOW GRAY,TRIM1#

main55660-20180-04iAT180,ST182..LHD..(CP,LB)198910-199311

DARK BLUE,TRIM8#

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-20130-03iST18#..RHD198910-199311

SHADOW GRAY,TRIM1#

main55670-20130-04iST182..RHD..LB198910-199311

DARK BLUE,TRIM8#

main55670-20160-03iAT180,ST18#..LHD198910-199311

SHADOW GRAY,TRIM1#

main55670-20160-04iAT180,ST182..LHD..(CP,LB)198910-199311

DARK BLUE,TRIM8#

55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1

main55680-14030-13iAT180,ST18#..CP,LB198910-199311

SHADOW GRAY,TRIM1#

main55680-14030-J0iAT180,ST182..CP,LB198910-199311

DARK BLUE,TRIM8#

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-20180-03iST18#..RHD198910-199311

SHADOW GRAY,TRIM1#

main55961-20180-04iST182..RHD..LB198910-199311

DARK BLUE,TRIM8#

main55961-20190-03iAT180,ST18#..LHD198910-199311

SHADOW GRAY,TRIM1#

main55961-20190-04iAT180,ST182..LHD..(CP,LB)198910-199311

DARK BLUE,TRIM8#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-20180-03iST18#..RHD198910-199311

SHADOW GRAY,TRIM1#

main55962-20180-04iST182..RHD..LB198910-199311

DARK BLUE,TRIM8#

main55962-20190-03iAT180,ST18#..LHD198910-199311

SHADOW GRAY,TRIM1#

main55962-20190-04iAT180,ST182..LHD..(CP,LB)198910-199311

DARK BLUE,TRIM8#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-20100-03iST18#..RHD198910-198912

SHADOW GRAY,TRIM1#

main55981-20100-04iST182..RHD198910-198912

DARK BLUE,TRIM8#

main55981-20101-03iST18#..RHD198912-199311

SHADOW GRAY,TRIM1#

main55981-20101-04iST182..RHD..LB198912-199311

DARK BLUE,TRIM8#

main55981-20110-03iAT180,ST18#..LHD198910-198912

SHADOW GRAY,TRIM1#

main55981-20110-04iAT180,ST182..LHD198910-198912

DARK BLUE,TRIM8#

main55981-20111-03iAT180,ST18#..LHD198912-199311

SHADOW GRAY,TRIM1#

main55981-20111-04iAT180,ST182..LHD..(CP,LB)198912-199311

DARK BLUE,TRIM8#

55982GARNISH, DEFROSTER NOZZLE, NO.2

main55982-20100-03iST18#..RHD198910-198912

SHADOW GRAY,TRIM1#

main55982-20100-04iST182..RHD198910-198912

DARK BLUE,TRIM8#

main55982-20101-03iST18#..RHD198912-199311

SHADOW GRAY,TRIM1#

main55982-20101-04iST182..RHD..LB198912-199311

DARK BLUE,TRIM8#

main55982-20110-03iAT180,ST18#..LHD198910-198912

SHADOW GRAY,TRIM1#

main55982-20110-04iAT180,ST182..LHD198910-198912

DARK BLUE,TRIM8#

main55982-20111-03iAT180,ST18#..LHD198912-199311

SHADOW GRAY,TRIM1#

main55982-20111-04iAT180,ST182..LHD..(CP,LB)198912-199311

DARK BLUE,TRIM8#

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

5563132013ARM,UNDER TRAY DOOR CHECK

main55631-32013

9014950032

main90149-50032

9015950287

main90159-50287

9015950305

main90159-50305

9017906097

main90179-06097

9017908025

main90179-08025

9018305018

main90183-05018

9018305103

main90183-05103

9046714030

main90467-14030

9046804147

main90468-04147

9046804157

main90468-04157

9046805014

main90468-05014

9046855014

main90468-55014

9054103015

main90541-03015

9054105080

main90541-05080

9166540618

main91665-40618

9166560820

main91665-60820

9356654514

main93566-54514

9356855014

main93568-55014

55 parts on this diagram · 2 diagrams in section
