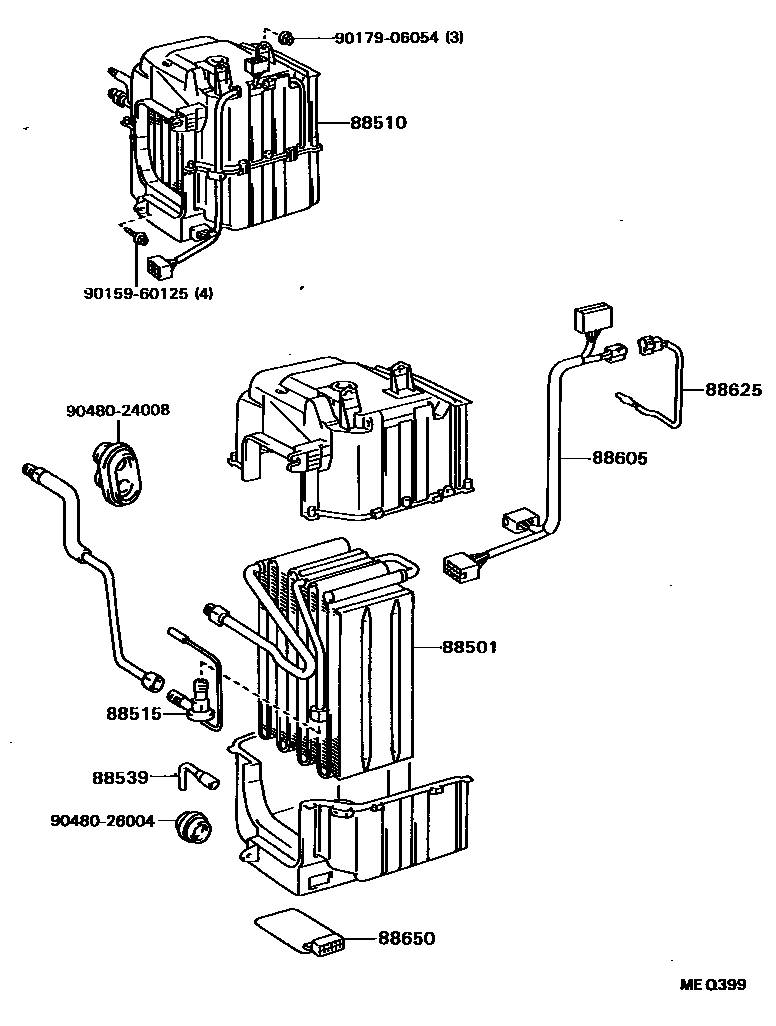

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1MAKER OPTION 0002 1DEALER OPTION

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-20201iST162..(CP,LB)..RHD198708-198908

main88501-20211iST162..LHD;AT160,ST165..LHD..(ST,TBO4W)198708-198908

88510UNIT ASSY, COOLER

main88510-20480iST165..RHD198801-198809

main88510-20500iAT160..CBR;ST162..LHD198708-198908

main88510-20510iST165..LHD198710-198908

main88510-20550iST165..RHD198710-198801

main88510-20560iST162..(CP,LB)..RHD198708-198908

HONG KONG SPEC

main88510-20820iST165..RHD198809-198908

88515VALVE, COOLER EXPANSION

main88515-16040iST162..LHD;ST162..CVT..RHD;AT160,ST165..ST,TBO4W198708-198801

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-22110iST162..LHD;ST162..CVT..RHD;AT160,ST165..LHD..(ST,TBO4W); ST165..RHD198801-198908

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-20590iST165..RHD198801-198809

main88605-20670iST162..(CP,LB)..RHD198708-198908

HONG KONG SPEC

main88605-20830iST165..LHD198801-198908

88625THERMISTOR, COOLER, NO.1

main88625-12070iST162..LHD;ST162..CVT..RHD;AT160,ST165..LHD..(ST,TBO4W); ST165..RHD198801-198908

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-20340iST165..LHD; ST165..RHD198801-198908

main88650-20350iST162;AT160..CBR;ST165..RHD198708-198801

main88650-20370iST165198708-198801

9015960125

main90159-60125

9017906054

main90179-06054

9048024008

main90480-24008

9048026004

main90480-26004

11 parts on this diagram · 2 diagrams in section
