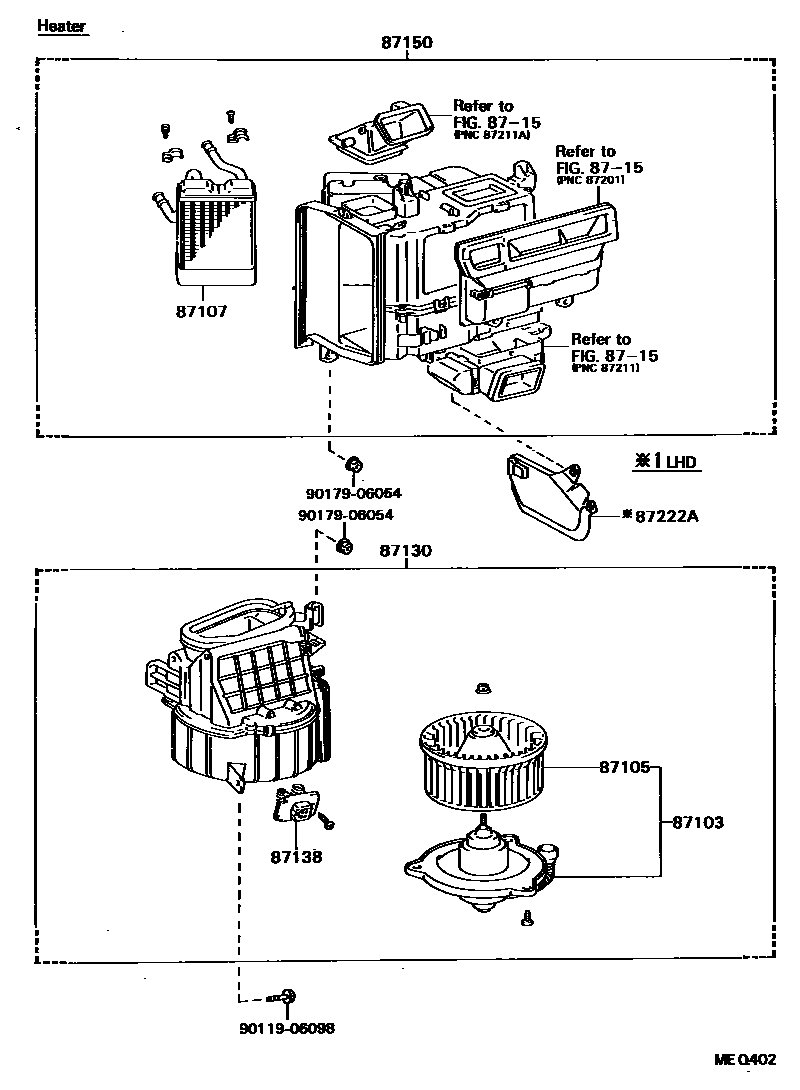

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

87103MOTOR SUB-ASSY, HEATER BLOWER, W/FAN

main87103-32010iST16#..RHD198708-198908

main87103-32020iAT160,ST16#..LHD198708-198908

87105FAN SUB-ASSY, HEATER BLOWER

main87105-32010iST16#..RHD198708-198908

main87105-32020iAT160,ST16#..LHD198708-198908

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-20350iAT160,ST16#..LHD198708-198908

main87107-20400iST162..CVT..FRG;AT160,ST16#..(CP,LB)..LHD198708-198908

COLD SPEC

main87107-20430iST16#..RHD198708-198908

87130BLOWER ASSY, HEATER, FRONT

main87130-20270iST16#..RHD198708-198908

main87130-20290iAT160,ST16#..LHD198708-198908

87138RESISTOR, HEATER BLOWER

main87138-32040iAT160,ST16#198708-198908

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

87150RADIATOR ASSY, HEATER

main87150-20560iST16#..RHD198708-198908

main87150-20640iAT160,ST16#..LHD198708-198908

main87150-20650iAT160,ST16#..(CP,LB)..LHD198708-198908

COLD SPEC

87222APROTECTOR, AIR DUCT

main87222-20020iAT160,ST16#..LHD198708-198908

9011906098

main90119-06098

9017906054

main90179-06054

10 parts on this diagram · 1 diagram in section
