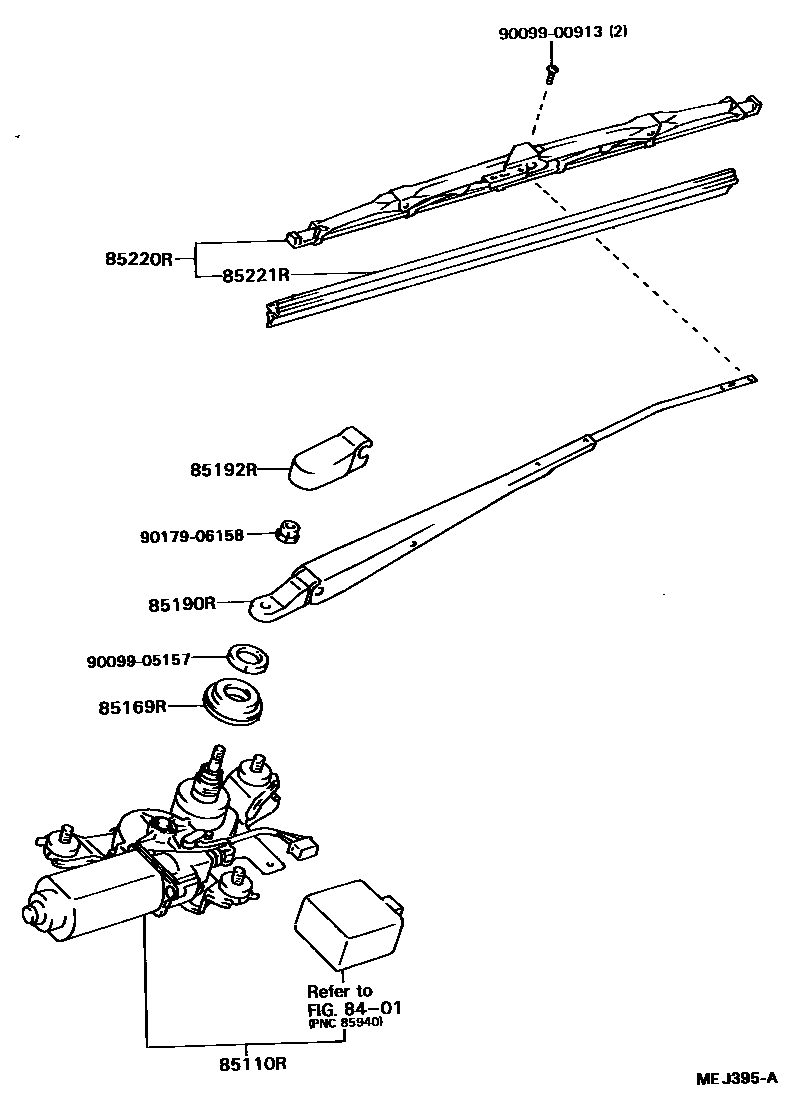

REAR WIPER

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85110RMOTOR ASSY, REAR WIPER

main85110-20570iST165198708-198808

main85110-20571iST165198808-198908

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main85179-20280iST165198708-198908

85190RARM ASSY, REAR WIPER

main85190-20530iST165198708-198908

85192RCOVER, REAR WIPER ARM

main85192-32010iST165198708-198908

85220RBLADE ASSY, REAR WIPER

main85220-16440iST165198708-198908

85221RBLADE, REAR WIPER

main85221-16080iST165198708-198908

9009900913

main90099-00913

9009905157

main90099-05157

9017906158

main90179-06158

10 parts on this diagram · 1 diagram in section
