RADIO RECEIVER & AMPLIFIER & CONDENSER

86011ACONDENSER, RADIO SETTING

main90980-04023iAT160,ST162..LHD198508-198708

DEFOGGER

main90980-04041iAT160,ST162..TWC198508-198708

IG.COIL

main90980-04062iST162..RHD198508-198708

DOFFOGGER

86011CFILTER, NOISE

main90980-05073iAT160,ST162198508-198708

STOP LAMP SW.

main90980-05113iAT160,ST162198508-198708

WIPER MOTOR

86120RECEIVER ASSY, RADIO

main86120-22391iAT160,ST162..EUG,FRG198508-198608

FUJITSU TEN,LW/MW/UKW

main86120-22401iST162..FRG,SDZ198508-198603

LW/MW/UKW

main86120-22402iST162..FRG,SDZ198603-198608

FUJITSU TEN,LW/MW/UKW

main86120-30651iST162..FRG,SDZ; ST162..RHD198508-198603

*21

main86120-30652iST162..FRG,SDZ; ST162..RHD198603-198608

*21

main86120-32100iAT160,ST162198608-198708

*34

main86120-32110iAT160,ST162..CP,LB198608-198708

LW/MW/UKW,W/ARI

main86120-32240iAT160,ST162..CP,LB198608-198708

LW/MW/UKW

main86120-32260iAT160,ST162..CP,LB198608-198708

*21

86120AKNOB, RADIO RECEIVER SWITCH

main86128-14680iAT160,ST162198508-198608

LW/MW/UKW,EXCL/*21

86120BKNOB, RADIO RECEIVER TUNING, NO.1

main86128-14680iAT160,ST162198508-198608

LW/MW/UKW,EXCL/*21

86120DKNOB, RADIO RECEIVER TONE

main86128-14720iAT160,ST162198508-198608

LW/MW/UKW,EXCL/*21

86203WIRE, RADIO

main86203-20160iAT160,ST162..CP,LB198608-198708

RADIO;LW/MW/UKW EXCL/*34 & *21

main86203-20170iAT160,ST162198608-198708

RADIO;*34

main86203-20180iAT160,ST162..CP,LB198608-198708

RADIO;*21

86211BRACKET, RADIO, NO.1

main86211-20150iAT160,ST162198508-198708

86212BRACKET, RADIO, NO.2

main86212-20190iAT160,ST162198508-198708

86260TAPE PLAYER ASSY

main86260-14271iAT160,ST162..CP,LB198610-198708

main86260-19045iAT160,ST162198508-198610

9011906005

main90119-06005

9014950032

main90149-50032

9015950173

main90159-50173

9098004023

main90980-04023

9098004041

main90980-04041

9098004062

main90980-04062

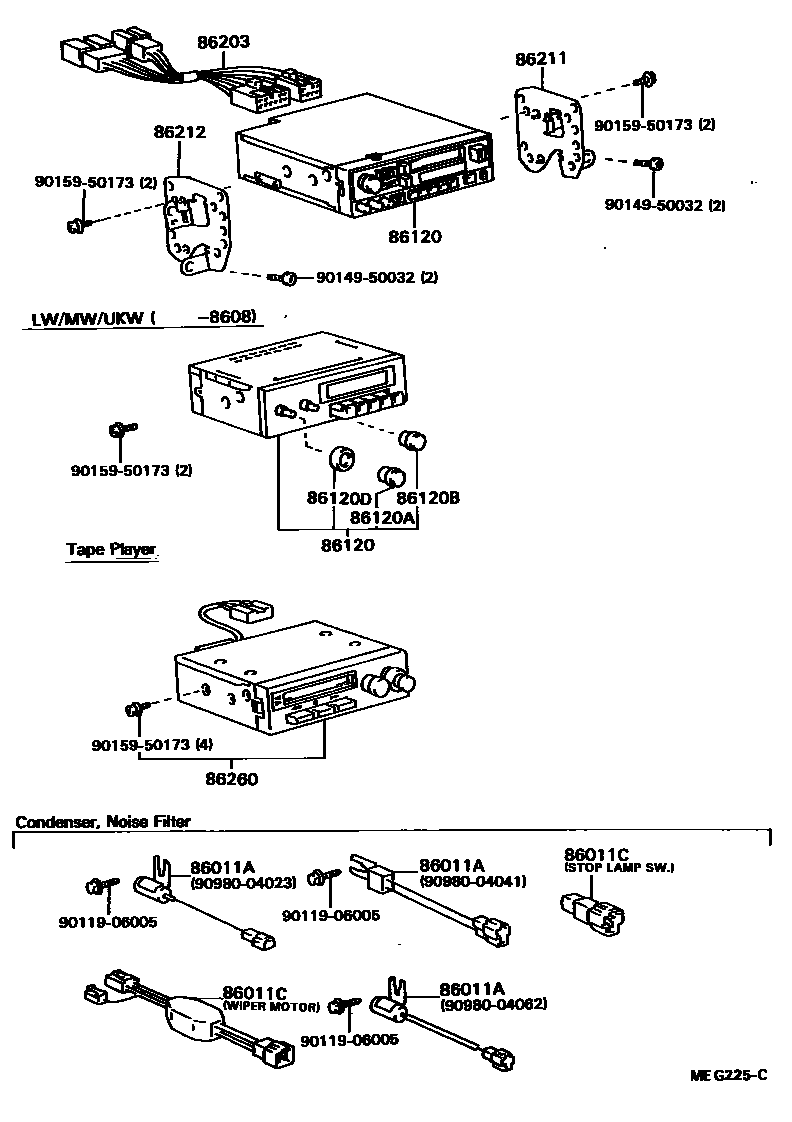

16 parts on this diagram · 1 diagram in section
