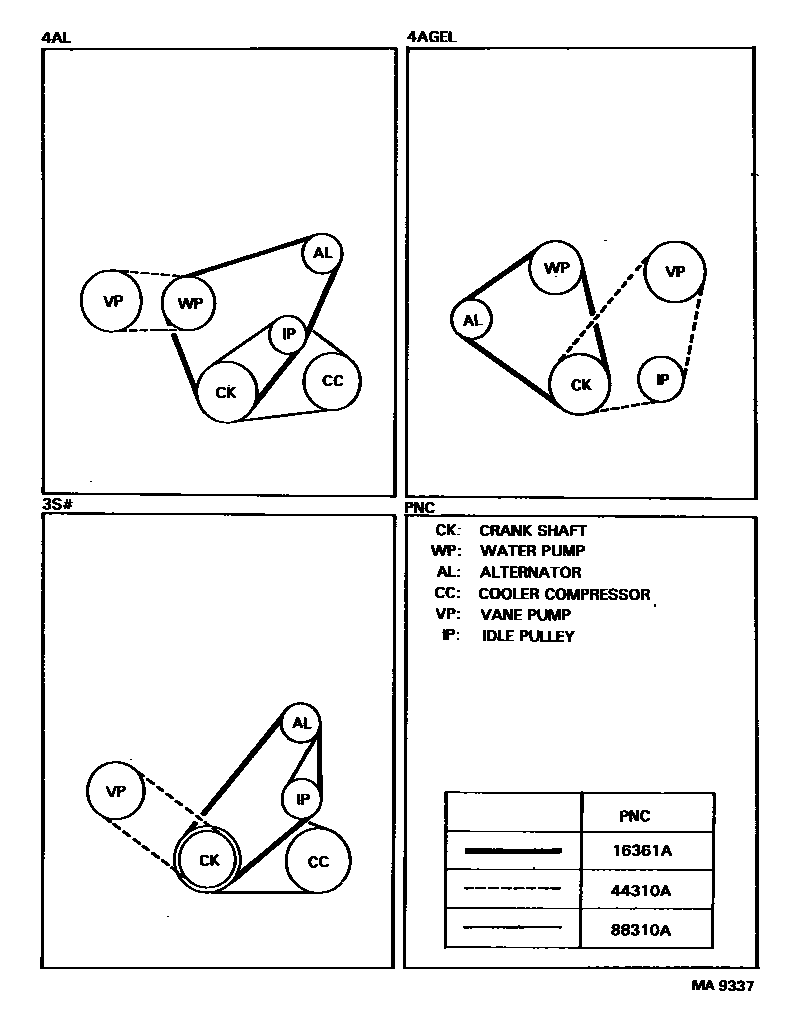

V-BELT

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02148i4AGEL..AT160198508-198708

main99365-00970i4AL..AT160198508-198708

main99365-01000i3SG#..ST162198508-198708

44310ABELT, V(FOR VANE PUMP)

main99363-50630iAT160..CBR198508-198708

main99363-50760iST162198508-198708

main99365-50920iAT160..TWC198508-198708

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90916-02116iST162..EUG,FRG198508-198708

MITSUBOSHI

main90916-02197iST162..EUG,FRG198703-198708

BANDO

main99332-10870iAT160..CBR198508-198708

L=870,MITSUBOSHI

main99332-60870iAT160..CBR198508-198708

BANDO

3 parts on this diagram · 1 diagram in section
