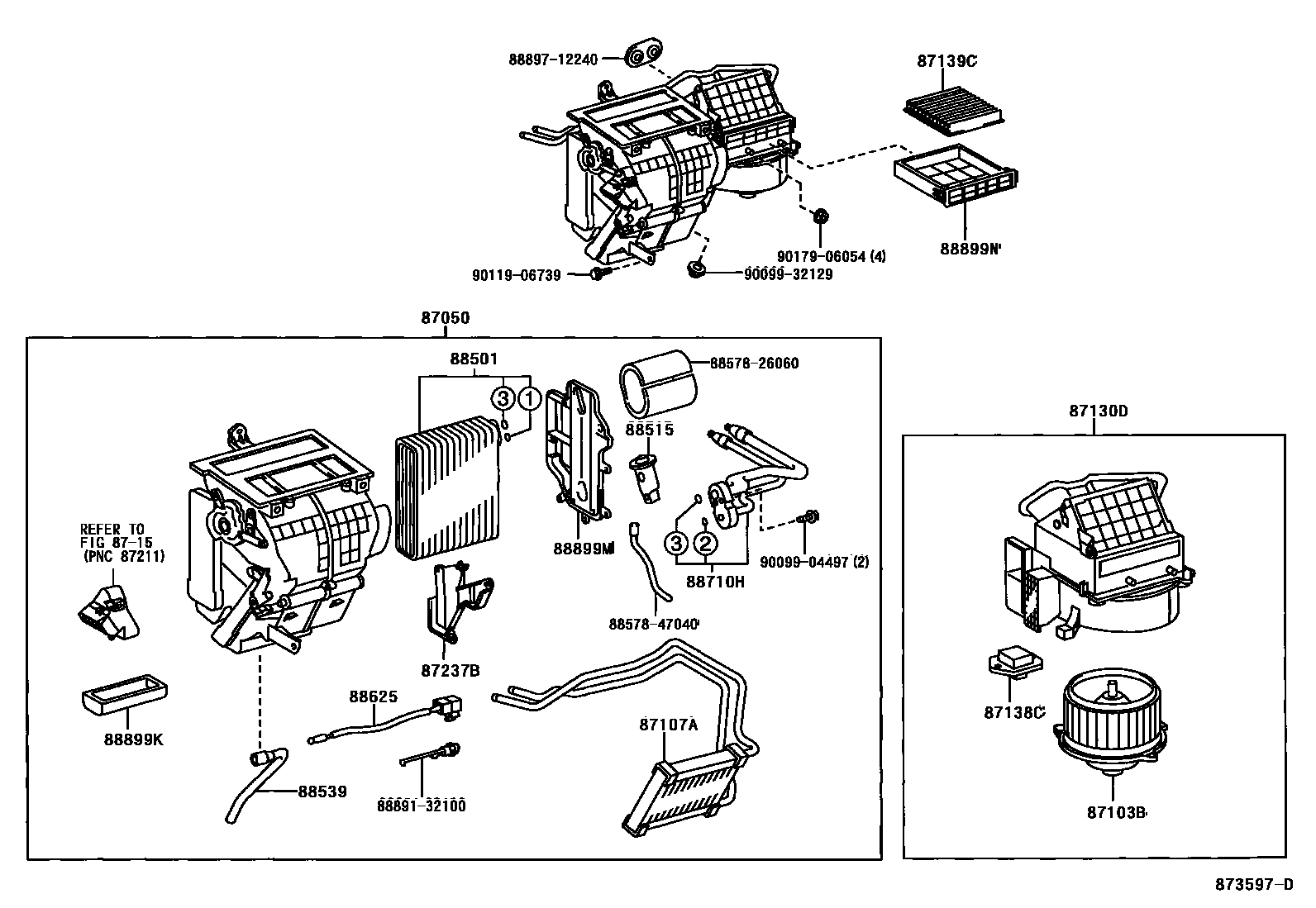

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1MANUAL AIR CONDITIONER 0002 1MANUAL AIR CONDITIONER 0003 1W/O(AIR CONDITIONER) 0004 1O-RING

87050RADIATOR ASSY, AIR CONDITIONER

main87050-20500iZZT23#199908-200208

MANUAL AIR CONDITIONER

main87050-20520iZZT230199908-200208

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-20130iZZT23#199908-200202

main87103-20160iZZT23#200202-200208

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-20690iZZT23#199908-200208

87130DBLOWER ASSY

main87130-20630iZZT23#199908-200008

main87130-20660iZZT23#200008-200208

87138CRESISTOR, BLOWER

main87138-20360iZZT23#199908-200208

87139CFILTER, CLEAN AIR

main87139-47010iZZT23#199908-200208

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

87237BCOVER, HEATER PIPING

main87237-20020iZZT23#199908-200208

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-20500iZZT23#199908-200208

88515VALVE, COOLER EXPANSION

main88515-28160iZZT23#200310-200507

main88515-48040iZZT23#200208-200402

DEALER OPTION

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-20310iZZT23#199908-200208

88625THERMISTOR, COOLER, NO.1

main88625-20510iZZT23#199908-200208

88710HTUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-20790iZZT23#199908-200208

88899KPLATE, COVER

main88899-47030iZZT230200208-200507

88899MPLATE, COVER(FOR AIR FILTER)

main88899-20320iZZT23#200208-200507

main88899-20330iZZT230199908-200208

W/O(AIR CONDITIONER)

88899NPLATE, COVER

main88899-41010iZZT23#199908-200208

8857826060PAKING, COOLER AIR DUCT

main88578-26060

8857847040PAKING, COOLER AIR DUCT

main88578-47040

8889132100PACKING (FOR COOLER)

main88891-32100

8889712240VALVE, COOLER MAGNET

main88897-12240

9009904497

main90099-04497

9009932129

main90099-32129

9011906739

main90119-06739

9017906054

main90179-06054

24 parts on this diagram · 4 diagrams in section
