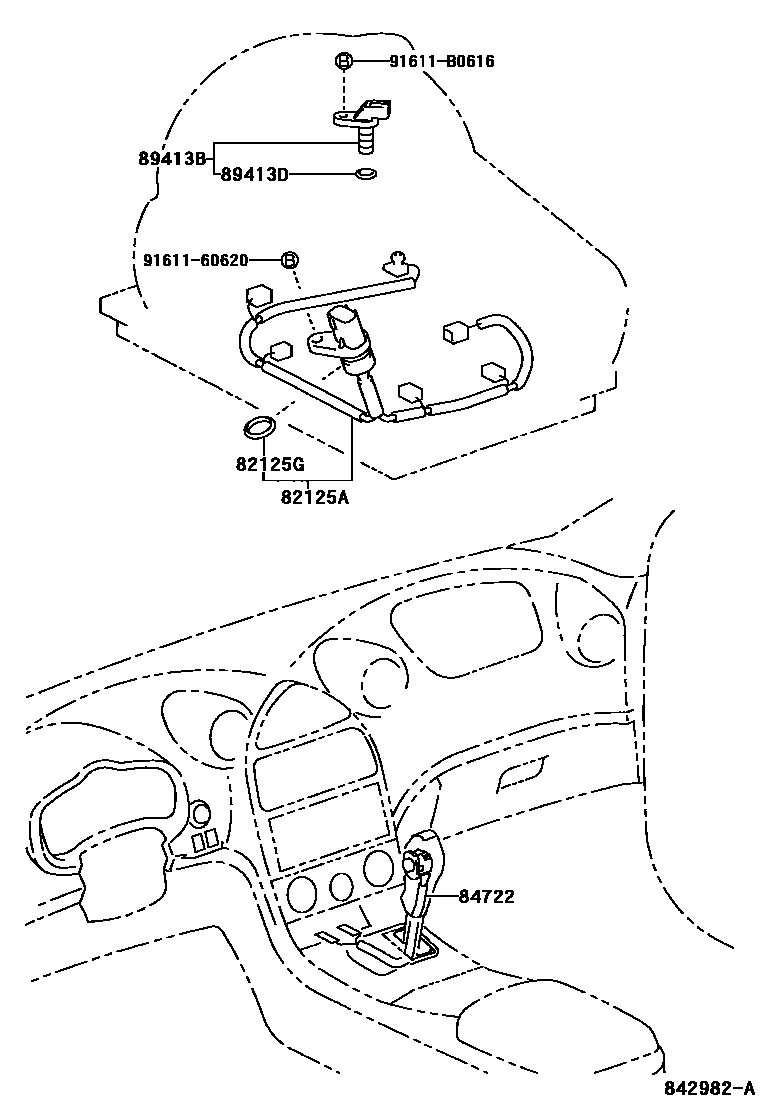

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1

82125AWIRE, TRANSMISSION

main82125-20270iZZT230..4FC199908-200208

main82125-21030iZZT231..4FC199908-200110

main82125-28180iZZT231..4FC200110-200208

82125GRING, O(FOR TRANSMISSION WIRE)

main90301-21009iZZT23#..4FC199908-200208

84722SWITCH, TRANSMISSION CONTROL

main84722-20210iZZT23#..4FC199908-200206

main84722-20211iZZT23#..4FC200206-200208

89413BSENSOR, TRANSMISSION REVOLUTION

main89413-32010iZZT230..4FC199908-200208

89413DRING, O(FOR TRANSMISSION REVOLUTION SENSOR)

main90301-11008iZZT230..4FC199908-200208

9161160620

main91611-60620

91611B0616

main91611-B0616

7 parts on this diagram · 2 diagrams in section
