INTERIOR LAMP

81250LAMP ASSY, ROOM, NO.2

main81250-12030-B2i199908-200208

AMETHYST,TRIM2#; AMETHYST,TRIM20,21,22,23

main81250-12030-B5i200208-200507

DK.GRAY,TRIM2#; DK.GRAY,TRIM20,21,22,23

81250BBULB, ROOM LAMP, NO.2

main99132-13050i199908-200208

12V 5W

81251LENS, ROOM LAMP, NO.2

main81251-12030i199908-200208

81260LAMP ASSY, GLOVE BOX

main81260-33030i199908-200208

81260ALAMP ASSY, MAP

main81260-20280-B0i199908-200208

W(MOON ROOF),LT.GRAY,TRIM2#; W(MOON ROOF),LT.GRAY,TRIM20,21,22,23

main81260-20280-B1i200208-200507

W(MOON ROOF),LT.GRAY,TRIM2#; W(MOON ROOF),LT.GRAY,TRIM20,21,22,23

main81260-46010-B1i199908-200208

LT.GRAY,TRIM2#; LT.GRAY,TRIM20,21,22,23

main81260-46010-B2i200208-200507

LT.GRAY,TRIM2#; LT.GRAY,TRIM20,21,22,23

81260BBULB(FOR GLOVE BOX)

main90981-11018i199908-200208

12V 1.2W W/O SOCKET

81260CBULB(FOR MAP LAMP)

main90981-12014i200208-200507

12V 10W

main90981-14004i200208-200507

12V 8W

81261LENS AND COVER, MAP LAMP

main81261-13010-B0i199908-200208

LT.GRAY,TRIM2#; LT.GRAY,TRIM20,21,22,23

main81261-13010-B3i200208-200507

LT.GRAY,TRIM2#

main81261-46010i200208-200507

9354024012

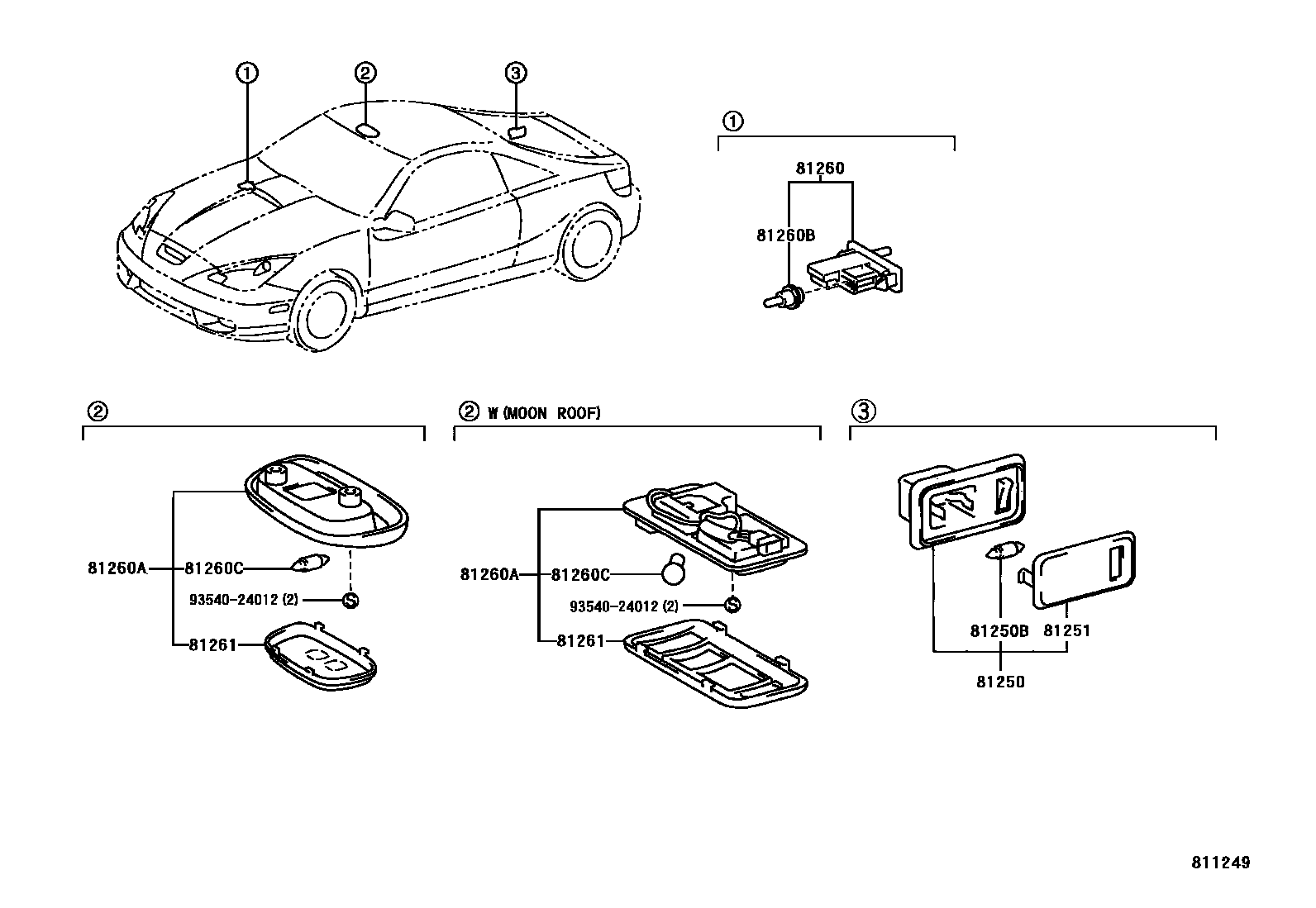

9 parts on this diagram · 1 diagram in section
