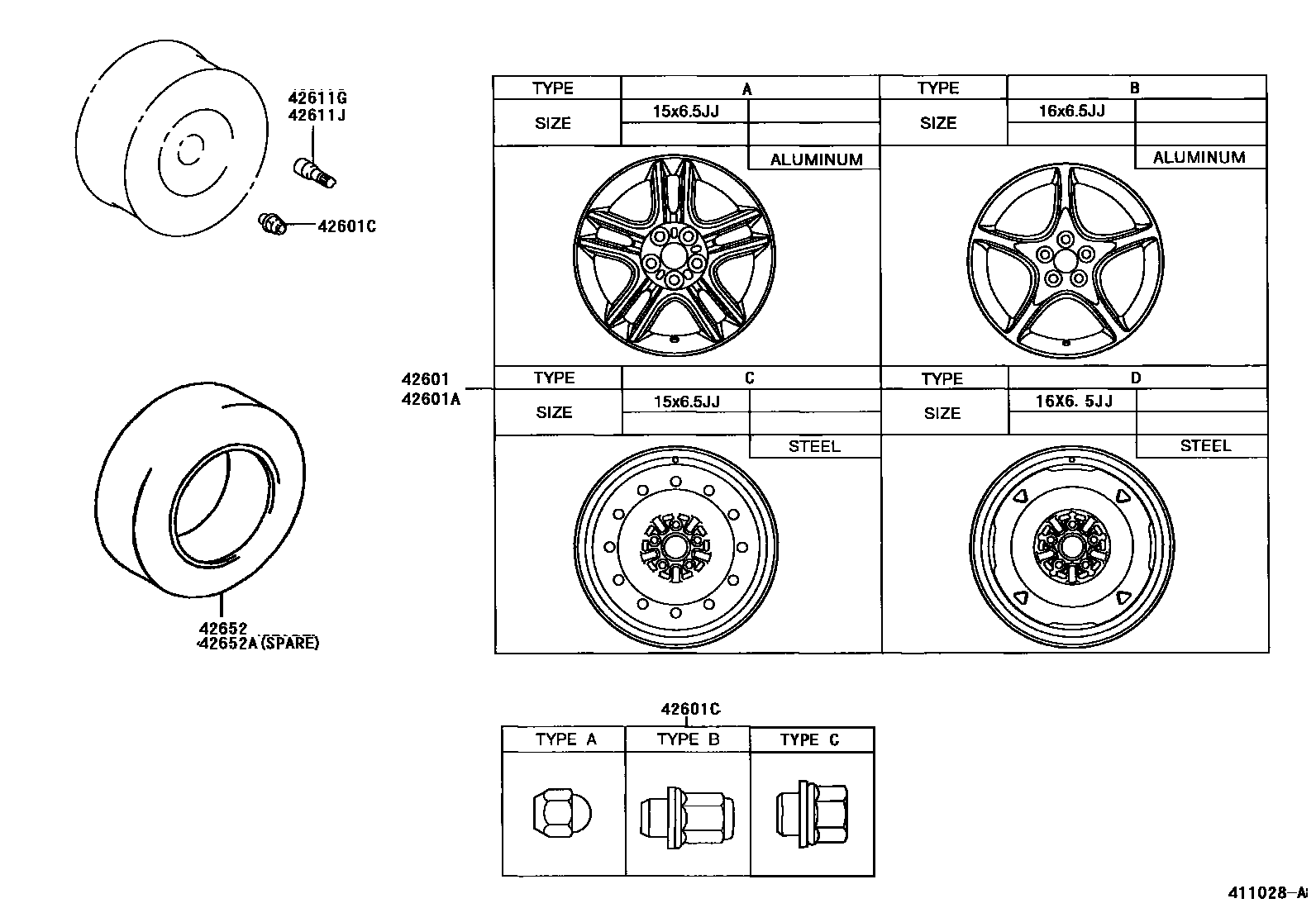

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-2B270iZZT23#199908-200507

15X6.5JJ,TYPE C:REFER TO ILLUSTRATION

main42611-2B280iZZT23#199908-200507

15X6.5JJ,TYPE A:REFER TO ILLUSTRATION

main42611-2B290iZZT231199908-200507

16X6.5JJ,TYPE B:REFER TO ILLUSTRATION

main42611-2B290iZZT230200402

16X6.5JJ,ACTION PACKAGE 2(USA/HAWAII/P.RICO/CANADA)

main42611-2B340iZZT231..6F200402

16X6.5JJ,ACTION PACKAGE 2(USA/HAWAII/P.RICO/CANADA)

42601AWHEEL, DISC (FOR SPARE)

main42611-20800iZZT23#199908-200507

16X4T,SPARE,TYPE D:REFER TO ILLUSTRATION

main42611-2B270iZZT23#199908-200507

15X6.5JJ,TYPE C:REFER TO ILLUSTRATION

main42611-2B280iZZT231199908-200507

15X6.5JJ,TYPE A:REFER TO ILLUSTRATION

main42611-2B290iZZT231199908-200507

16X6.5JJ,TYPE B:REFER TO ILLUSTRATION

42601CNUT, HUB (FOR AXLE)

main90942-01021iZZT23#199908-200108

TYPE A:REFER TO ILLUSTRATION

main90942-01033iZZT231199908-200507

TYPE B:REFER TO ILLUSTRATION

main90942-01062iZZT23#199908-200507

TYPE C:REFER TO ILLUSTRATION

main90942-01082iZZT23#200108-200507

TYPE A:REFER TO ILLUSTRATION

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009iZZT23#199908-200507

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iZZT23#199908-200507

42652TIRE

main42652-2B780iZZT231199908-200507

205/55R15,TRAMPIO R19

main42652-2B820iZZT230199908-200507

195/60R15,SP SPORT 4000 A/S,POTENZA RE92

main42652-2B830iZZT231199908-200507

P205/55R15,MICHELIN,PILOT XGTV4

main42652-2B830iZZT231200208-200312

P205/55R15,MICHELIN

main42652-2B840iZZT231199908-200405

205/50R16,ADVAN

main42652-2B840iZZT231200208-200312

205/50R16

main42652-2B840iZZT230;ZZT231..6F200402

205/50R16,ACTION PACKAGE 2(USA/HAWAII/P.RICO/CANADA)

main42652-2B841iZZT231200406-200507

205/50R16,ADVAN

main42652-2B850iZZT231199908-200507

P205/55R15,*B/S,POTENZA RE92

main42652-2B850iZZT231200208-200312

P205/55R15,*B/S

main42652-2B860iZZT231200008-200405

205/55R15,POTENZA RE030

main42652-2B861iZZT231200406-200507

205/55R15,POTENZA RE030

main42652-2D020iZZT230200308-200507

P195/60R15

42652ATIRE (FOR SPARE)

main42652-2B440iZZT23#199908-200208

T125/70D16,*B/S

main42652-2B780iZZT231..6F199908-200507

205/55R15,TRAMPIO R19

main42652-2B820iZZT230199908-200507

195/60R15

main42652-2B830iZZT231200008-200507

P205/55R15,MICHELIN,PILOT XGTV4

main42652-2B830iZZT231199908-200008

P205/55R15,MICHELIN

main42652-2B840iZZT231199908-200405

205/50R16

main42652-2B841iZZT231200406-200507

205/50R16

main42652-2B850iZZT231200008-200308

P205/55R15,*B/S,POTENZA RE92

main42652-2B860iZZT231200208-200405

205/55R15

main42652-2B860iZZT231200008-200208

205/55R15,POTENZA RE030

main42652-2B861iZZT231200406-200507

205/55R15,POTENZA RE030

main42652-2D020iZZT230200308-200507

P195/60R15

7 parts on this diagram · 3 diagrams in section
