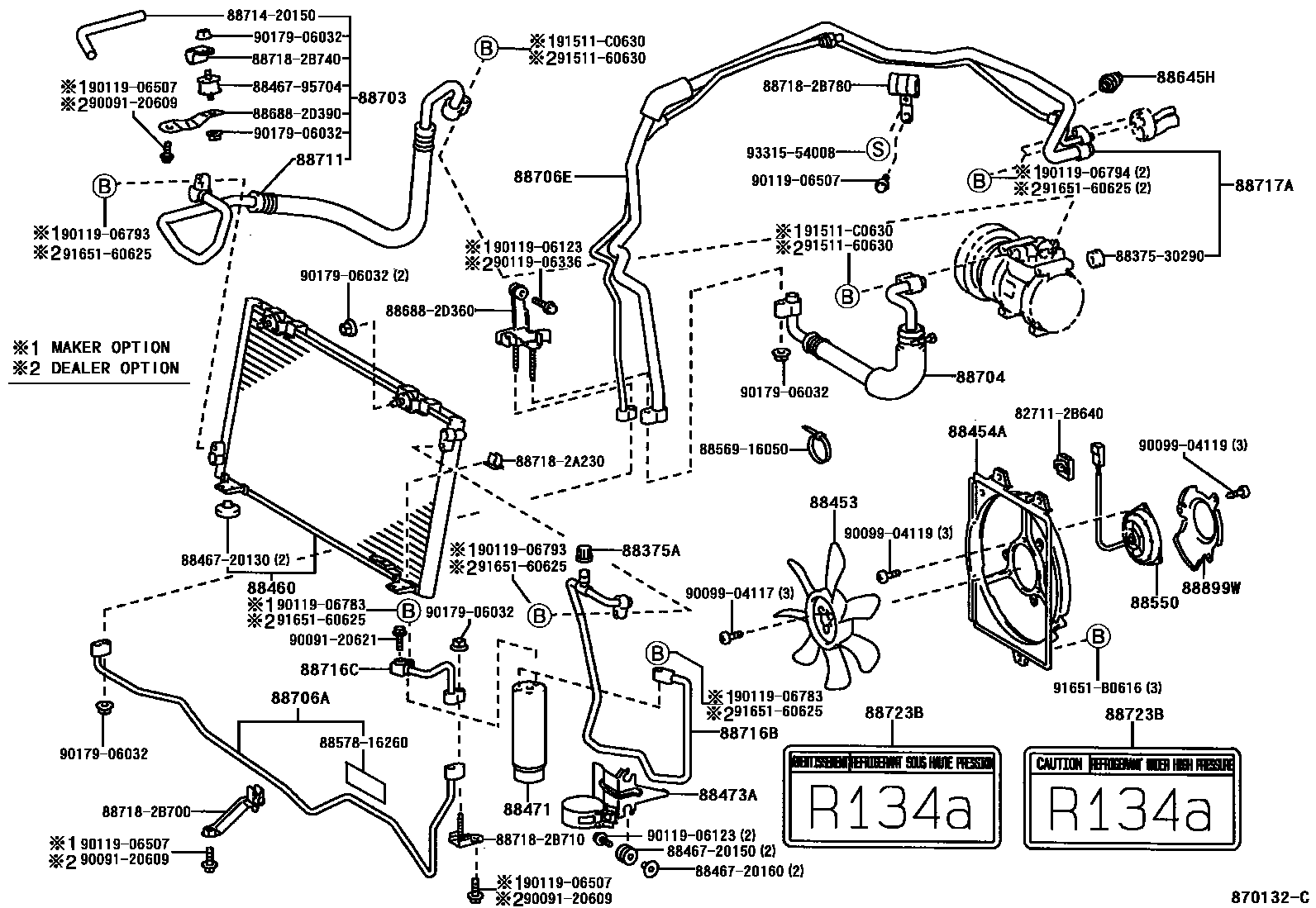

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1

88375ACAP, SERVICE VALVE (FOR COOLER PIPE)

main88375-30280iAT200,ST204199309

88453FAN, COOLING (FOR CONDENSER)

main88453-20070iAT200,ST204199309

88454ASHROUD, FAN

main88454-20140iAT200,ST204199309

88460CONDENSER ASSY, COOLER

main88460-20440iAT200,ST204199309-199508

main88460-20470iST204..CND199712

main88460-20490iST204..USA199712

DEALER OPTION

88471TANK, RECEIVER AIR CONDITIONER

main88471-20050iAT200,ST204199309

88473AHOLDER, RECEIVER

main88472-20170iAT200,ST204199309

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main16363-46030iAT200,ST204199409

main88550-12130iAT200,ST204199309-199408

88645HSWITCH, PRESSURE NO.1

main88645-20050iAT200,ST204199309

88703HOSE SUB-ASSY, DISCHARGE

main88703-20120iST204199309

main88703-20130iAT200..USA199309-199311

MAKER OPTION

main88703-20170iAT200..USA199309-199311

DEALER OPTION

88704HOSE SUB-ASSY, SUCTION

main88712-2B440iST204199309

main88712-2B450iAT200199309-199712

88706ATUBE SUB-ASSY, LIQUID, A

main88706-20140iST204;AT200..USA199309-199508

main88716-2D300iAT200,ST204..(CP,LB)..USA; AT200,ST204..CND199508-199510

DEALER OPTION

88706ETUBE SUB-ASSY, LIQUID, E

main88716-2D310iAT200,ST204199309

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-2B130iST204199309

main88711-2B270iAT200199309-199712

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88706-20130iAT200,ST204199309

88716CPIPE, COOLER REFRIGERANT LIQUID, C

main88706-20170iAT200,ST204199309

88717APIPE, COOLER REFRIGERANT SUCTION, A

main88717-2B480iAT200,ST204199309

88723BLABEL, COOLER SERVICE CAUTION

main88723-20050iAT200,ST204..USA; ST204..CND199309-199311

ENGLISH,MAKER OPTION; MAKER OPTION

main88723-20060iST204..CND199309-199311

FRENCH,MAKER OPTION

main88723-34010iAT200,ST204199508

ENGLISH

main88723-34020iAT200,ST204199508-199712

FRENCH

88899WSUPPORT SUB-ASSY, B

main88899-20270iAT200,ST204199309

827112B640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B640

8837530290CAP, COOLER COMPRESSOR SERVICE VALVE

main88375-30290

8846720130CUSHION, COOLER CONDENSER, NO.1

main88467-20130

8846720150CUSHION, COOLER CONDENSER, NO.1

main88467-20150

8846720160CUSHION, COOLER CONDENSER, NO.1

main88467-20160

8846795704CUSHION, COOLER CONDENSER, NO.1

main88467-95704

8856916050CLAMP (FOR COOLER RELAY)

main88569-16050

8857816260PAKING, COOLER AIR DUCT

main88578-16260

886882D360BRACKET, COOLER DIAPHRAGM

main88688-2D360

886882D390BRACKET, COOLER DIAPHRAGM

main88688-2D390

8871420150HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-20150

887182A230PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2A230

887182B700PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2B700

887182B710PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2B710

887182B740PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2B740

887182B780PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2B780

9009120609

main90091-20609

9009120621

main90091-20621

9009904117

main90099-04117

9009904119

main90099-04119

9011906123

main90119-06123

9011906336

main90119-06336

9011906507

main90119-06507

9011906783

main90119-06783

9011906793

main90119-06793

9011906794

main90119-06794

9017906032

main90179-06032

9151160630

main91511-60630

91511C0630

main91511-C0630

9165160625

main91651-60625

91651B0616

main91651-B0616

9331554008

main93315-54008

50 parts on this diagram · 2 diagrams in section
