WIRING & CLAMP

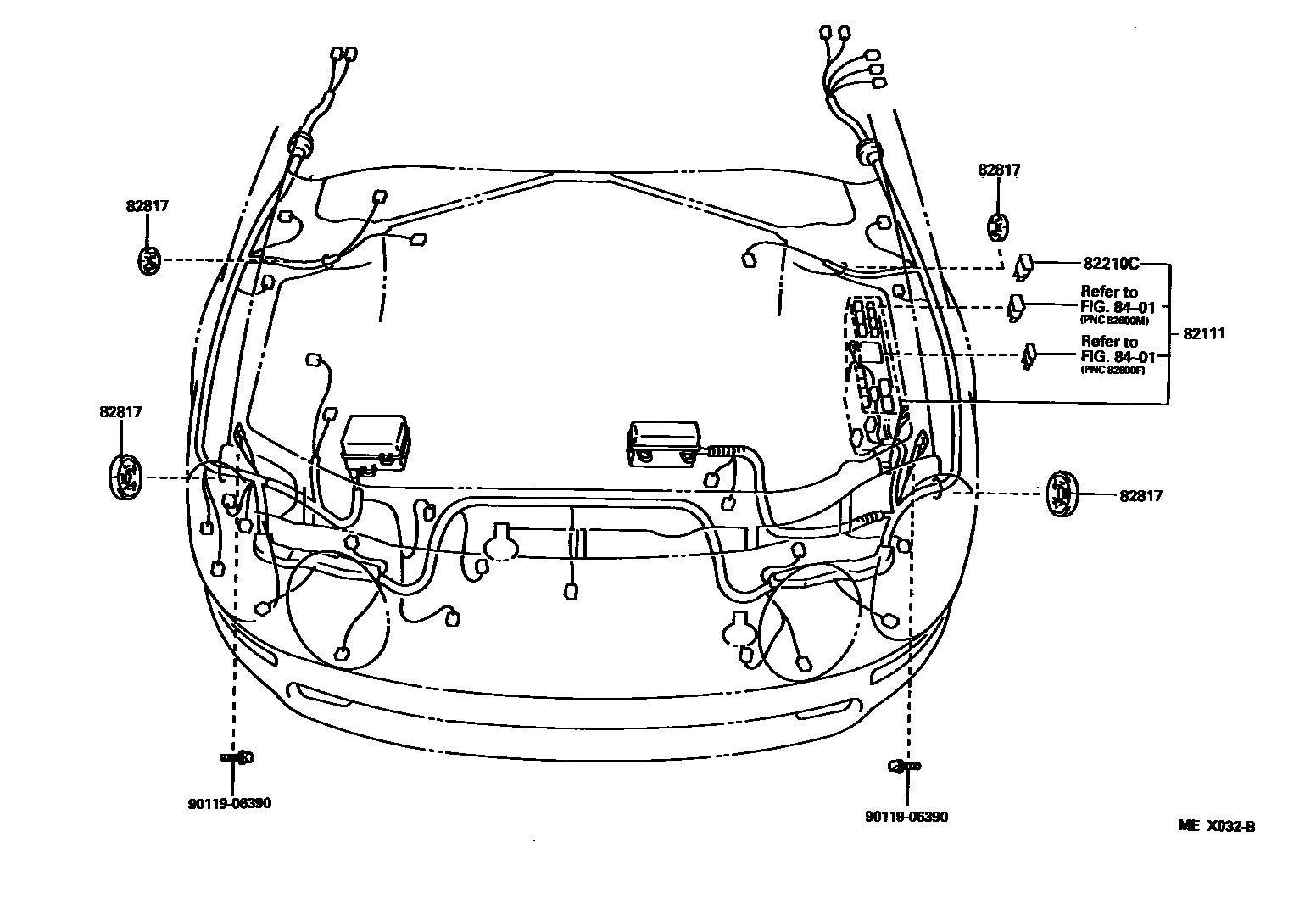

Parts diagram

82111WIRE, ENGINE ROOM MAIN

main82111-2H140i199508-199510

main82111-2H150i199309-199508

W(CRUISE CONTOROL)

main82111-2H160i199309-199508

W(ABS & CRUISE CONTROL) OR W(ABS)

main82111-2H170i199309-199508

main82111-2H180i199309-199508

W(ABS & *80 & CRUISE CONTROL)

main82111-2H590i199309-199508

W(CRUISE CONTOROL)

main82111-2H600i199309-199508

W(ABS & CRUISE CONTROL) OR W(ABS)

main82111-2H610i199309-199508

W(ABS & *80 & CRUISE CONTROL) OR W(ABS & CRUISE CONTROL)

main82111-2L120i199510-199711

main82111-2L121i199711

main82111-2L130i199508-199712

W(CRUISE CONTOROL)

main82111-2L140i199508-199606

W(ABS & CRUISE CONTROL) OR W(ABS)

main82111-2L141i199606-199712

W(ABS & CRUISE CONTROL) OR W(ABS)

main82111-2L150i199508-199510

W(CRUISE CONTOROL)

main82111-2L151i199711

W(CRUISE CONTOROL)

main82111-2L160i199510-199606

W(ABS & CRUISE CONTROL) OR W(ABS)

main82111-2L161i199606-199712

W(ABS & CRUISE CONTROL) OR W(ABS)

main82111-2L162i199712

W(ABS & CRUISE CONTROL) OR W(ABS)

main82111-2L170i199508-199711

main82111-2L171i199711

main82111-2L180i199508-199606

W(CRUISE CONTROL) OR W(ABS)

main82111-2L190i199508-199606

W(CRUISE CONTROL) OR W(ABS)

main82111-2L191i199606-199712

W(CRUISE CONTROL) OR W(ABS)

main82111-2L192i199712

W(CRUISE CONTROL) OR W(ABS)

82210CFUSIBLE LINK

main90982-08189i199309

40A,TERM.:FEMALE,GRN

main90982-08190i199309

60A,TERM.:FEMALE,YEL

main90982-08227i199309

50A,TERM.:FEMALE,RED

main90982-08246i199309

100A,TERM.:MALE,BLUE

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-2B730×2i199309

REAR

main82817-2D840×2i199309

FRONT

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906390

main90119-06390

5 parts on this diagram · 9 diagrams in section
