MAT & CARPET

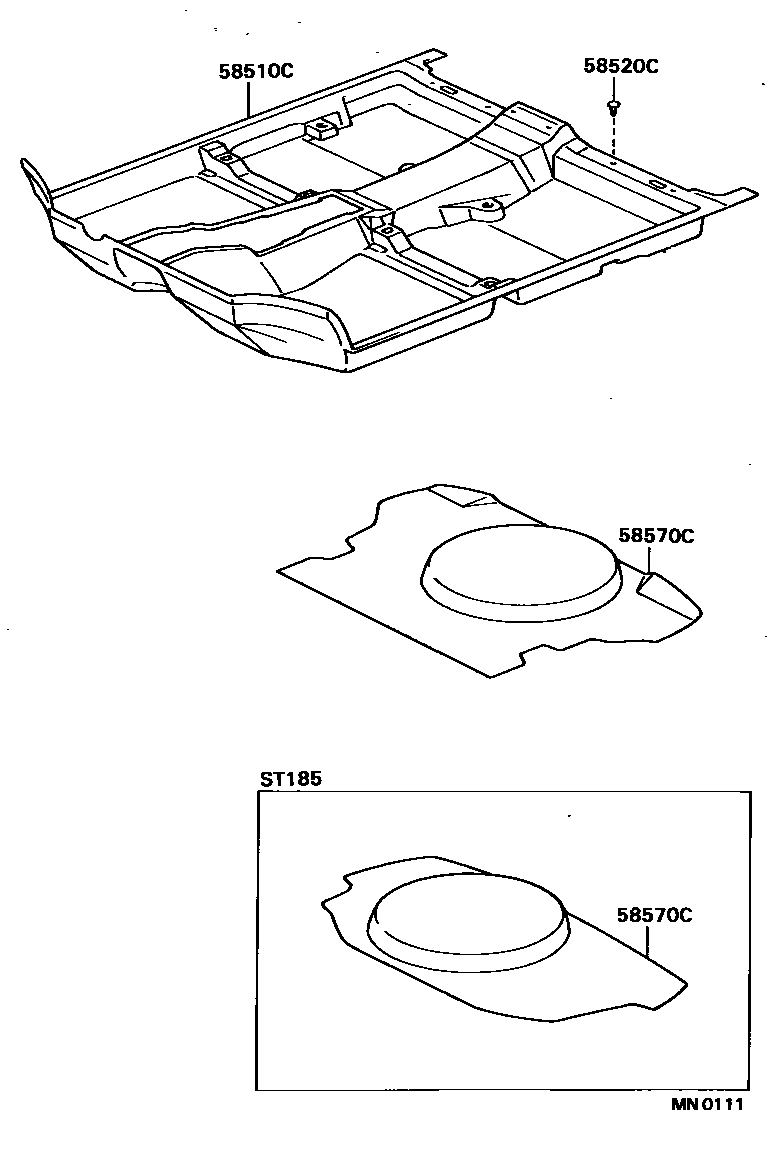

Parts diagram

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-2B860-02i198909-199004

RED,TRIM3#

main58510-2B860-03i198909-199004

SHADOW GRAY,TRIM1#

main58510-2B860-04i198909-199004

DARK BLUE,TRIM8#

main58510-2B861-02×2i199004-199008

RED,TRIM3#

main58510-2B861-03i199108-199309

SHADOW GRAY,TRIM1#

main58510-2B861-04×2i199004-199108

DARK BLUE,TRIM8#

main58510-2B861-06×2i199008-199108

CHOCOLATE BROWN,TRIM4#

main58510-2D100-02i198910-199004

RED,TRIM3#

main58510-2D100-03i198910-199004

SHADOW GRAY,TRIM1#

main58510-2D100-04i198910-199004

DARK BLUE,TRIM8#

main58510-2D101-02×2i199004-199008

RED,TRIM3#

main58510-2D101-03i199108-199309

SHADOW GRAY,TRIM1#

main58510-2D101-04×2i199004-199108

DARK BLUE,TRIM8#

main58510-2D101-06×2i199008-199108

CHOCOLATE BROWN,TRIM4#

main58510-2D361-03i199006-199309

SHADOW GRAY,TRIM1#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-06016-33×6i199008-199108

GRAY,TRIM1#,4#,8#

main90467-06016-58×6i198911-199008

GRAY,TRIM1#,3#,8#

58570CCARPET ASSY, REAR FLOOR

main58570-20130-03i199108-199309

SHADOW GRAY,TRIM1#

main58570-20130-04i199108-199309

DARK BLUE,TRIM8#

main58570-20140-02i198910-199008

W(T135/70 D16),RED,TRIM3#

main58570-20140-03i199108-199309

W(T135/70 D16),SHADOW GRAY,TRIM1#

main58570-20140-04i198910-199008

W(T135/70 D16),DARK BLUE,TRIM8#

main58570-20160-02i198909-199008

RED,TRIM3#

main58570-20160-03i199108-199309

SHADOW GRAY,TRIM1#; W(15 INCH SPARE TIRE),SHADOW GRAY,TRIM1#

main58570-20160-04i199108-199309

DARK BLUE,TRIM8#; W(15 INCH SPARE TIRE),DARK BLUE,TRIM8#

main58570-20160-16i199008-199108

CHOCOLATE BROWN,TRIM4#

main58570-20170-02i198910-199008

RED,TRIM3#

main58570-20170-03i198910-199309

SHADOW GRAY,TRIM1#

main58570-20170-04i198910-199108

DARK BLUE,TRIM8#

main58570-20170-16i199008-199108

CHOCOLATE BROWN,TRIM4#

3 parts on this diagram · 1 diagram in section
