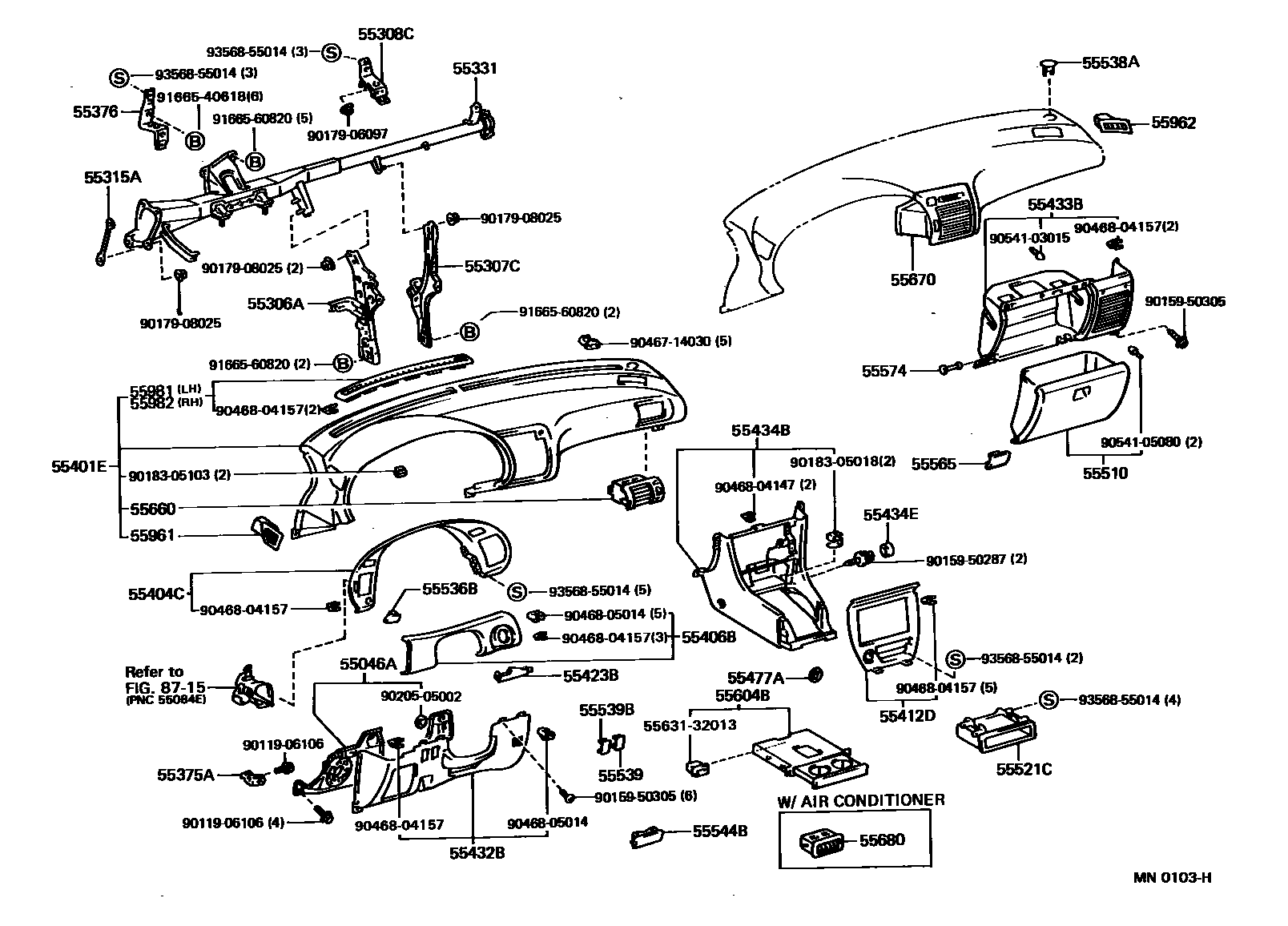

INSTRUMENT PANEL & GLOVE COMPARTMENT

55046APANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER LH

main55046-20010iAT180,ST18#199208-199309

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-20180iAT180,ST18#199208-199309

main55306-20190iAT180,ST18#..CND198909-199208

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-20170iAT180,ST18#198909-199309

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-20160iAT180,ST18#198909-199309

55315ASPACER, INSTRUMENT PANEL, NO.1

main55315-20040iAT180,ST18#198909-199309

T=1.5

main55315-20050iAT180,ST18#198909-199309

T=1.0

main55315-20060iAT180,ST18#198909-199309

T=0.5

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-20130iAT180,ST18#199208-199309

main55330-20140iAT180,ST18#..CND198909-199208

55375ABRACKET, INSTRUMENT PANEL LOWER MOUNTING, LH

main55375-20020iAT180,ST18#..USA198909-199208

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-20080iAT180,ST18#198909-199309

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-20580-02iAT180,ST18#..CP,LB198909-199008

RED,TRIM3#

main55401-20580-03iAT180,ST18#198909-199309

SHADOW GRAY,TRIM1#

main55401-20580-04iAT180,ST18#..CP,LB198909-199108

DARK BLUE,TRIM8#

main55401-20580-16iST18#..CP,LB199008-199108

CHOCOLATE BROWN,TRIM4#

55404CPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2

main55404-20280iAT180,ST18#198909-199309

55406BPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER

main55406-20050iAT180,ST18#198909-199309

55412DPANEL, INSTRUMENT CLUSTER FINISH, CENTER

main55412-20400iAT180,ST18#198909-199309

55423BCOVER, INSTRUMENT CLUSTER FINISH PANEL

main55423-20160iAT180,ST18#198909-199309

55432BPANEL, INSTRUMENT PANEL FINISH, LOWER

main55432-20210-02iAT180,ST18#..CP,LB198909-199008

RED,TRIM3#

main55432-20210-03iAT180,ST18#198909-199309

SHADOW GRAY,TRIM1#

main55432-20210-04iAT180,ST184..CP,LB199108-199309

DARK BLUE,TRIM8#

main55432-20210-16iAT180,ST18#..CP,LB199008-199108

CHOCOLATE BROWN,TRIM4#

55433BPANEL, INSTRUMENT PANEL FINISH, LOWER NO.2

main55433-20120-02iAT180,ST18#..CP,LB198909-199008

RED,TRIM3#

main55433-20120-03iAT180,ST18#198909-199309

SHADOW GRAY,TRIM1#

main55433-20120-04iAT180,ST18#..CP,LB198909-199108

DARK BLUE,TRIM8#

main55433-20120-16iAT180,ST18#..CP,LB199008-199108

CHOCOLATE BROWN,TRIM4#

55434BPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER

main55434-20150-02iAT180,ST18#..CP,LB198909-199008

RED,TRIM3#

main55434-20150-03iAT180,ST18#198909-199309

SHADOW GRAY,TRIM1#

main55434-20150-04iAT180,ST184..CP,LB199108-199309

DARK BLUE,TRIM8#

main55434-20150-16iAT180,ST18#..CP,LB199008-199108

CHOCOLATE BROWN,TRIM4#

55434ECAP

main90339-10009-02×2iAT180,ST18#..CP,LB198909-199008

RED,TRIM3#

main90339-10009-03×2iAT180,ST18#198909-199309

SHADOW GRAY,TRIM1#

main90339-10009-04×2iAT180,ST18#..CP,LB198909-199108

DARK BLUE,TRIM8#

main90339-10009-06×2iAT180,ST184..CP,LB199008-199108

SABLE,TRIM4#

55477ABEZEL, CIGARETTE LIGHTER HOLE

main55477-20090iAT180,ST18#198909-199309

55510DOOR ASSY, GLOVE COMPARTMENT

main55501-20130-02iAT180,ST18#..CP,LB198909-199008

RED,TRIM3#

main55501-20130-03iAT180,ST18#198909-199309

SHADOW GRAY,TRIM1#

main55501-20130-04iAT180,ST18#..CP,LB198909-199108

DARK BLUE,TRIM8#

main55501-20130-26iAT180,ST184..CP,LB199008-199108

CHOCOLATE BROWN,TRIM4#

55521CCOVER, STEREO OPENING

main55521-16030iAT180,ST18#198909-199309

55536BCOVER, LIGHT CONTROL SWITCH HOLE

main55536-20040iAT180,ST184..NOB..USA198909-199108

55538ACOVER, COOLER SWITCH HOLE

main55538-20060-02iAT180,ST18#..CP,LB198909-199008

RED,TRIM3#

main55538-20060-03iAT180,ST18#198909-199309

SHADOW GRAY,TRIM1#

main55538-20060-04iAT180,ST18#..CP,LB198909-199108

DARK BLUE,TRIM8#

main55538-20060-26iAT180,ST18#..CP,LB199008-199108

CHOCOLATE BROWN,TRIM4#

55539COVER, SPARE SWITCH HOLE

main55539-20080-02iAT180,ST18#..CP,LB198909-199008

RED,TRIM3#

main55539-20080-03iAT180,ST18#198909-199309

SHADOW GRAY,TRIM1#

main55539-20080-04iAT180,ST18#..CP,LB198909-199108

DARK BLUE,TRIM8#

main55539-20080-26iAT180,ST184..CP,LB199008-199108

CHOCOLATE BROWN,TRIM4#

55539BCOVER, SPARE SWITCH HOLE, NO.2

main55539-20080-02iAT180,ST18#..CP,LB198909-199008

RED,TRIM3#

main55539-20080-03iAT180,ST18#198909-199309

SHADOW GRAY,TRIM1#

main55539-20080-04iAT180,ST18#..CP,LB198909-199108

DARK BLUE,TRIM8#

main55539-20080-26iAT180,ST184..CP,LB199008-199108

CHOCOLATE BROWN,TRIM4#

55544BCOVER, INSTRUMENT PANEL LOWER REGISTER HOLE

main55544-22030-03iAT180,ST18#199202-199309

SHADOW GRAY,TRIM1#

main55544-22030-12iAT180,ST18#..CP,LB198909-199008

RED,TRIM3#

main55544-22030-14iAT180,ST18#..CP,LB198909-199108

DARK BLUE,TRIM8#

main55544-22030-26iAT180,ST18#..CP,LB199008-199108

CHOCOLATE BROWN,TRIM4#

55565HANDLE, GLOVE COMPARTMENT DOOR LOCK

main55565-20070-02iAT180,ST18#..CP,LB198909-199008

RED,TRIM3#

main55565-20070-03iAT180,ST18#198909-199309

SHADOW GRAY,TRIM1#

main55565-20070-04iAT180,ST18#..CP,LB198909-199108

DARK BLUE,TRIM8#

main55565-20070-26iAT180,ST18#..CP,LB199008-199108

CHOCOLATE BROWN,TRIM4#

55574SHAFT, GLOVE COMPARTMENT DOOR HINGE

main55574-10010×2iAT180,ST18#198909-199309

55604BHOLDER SUB-ASSY, INSTRUMENT PANEL CUP

main55604-20040iAT180,ST18#198909-199309

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-20180-02iAT180,ST18#..CP,LB198909-199008

RED,TRIM3#

main55660-20180-03iAT180,ST18#198909-199309

SHADOW GRAY,TRIM1#

main55660-20180-04iAT180,ST18#..CP,LB198909-199008

DARK BLUE,TRIM8#

main55660-20180-16iAT180,ST18#..CP,LB199008-199108

CHOCOLATE BROWN,TRIM4#

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-20150-02iAT180,ST18#..CP,LB198909-199008

RED,TRIM3#

main55670-20150-03iAT180,ST18#198909-199309

SHADOW GRAY,TRIM1#

main55670-20150-04iAT180,ST18#..CP,LB198909-199108

DARK BLUE,TRIM8#

main55670-20150-16iAT180,ST18#..CP,LB199008-199108

CHOCOLATE BROWN,TRIM4#

55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1

main55680-14030-12iAT180,ST18#..CP,LB198909-199008

RED,TRIM3#

main55680-14030-13iAT180,ST18#198909-199309

SHADOW GRAY,TRIM1#

main55680-14030-26iAT180,ST18#..CP,LB199008-199108

CHOCOLATE BROWN,TRIM4#

main55680-14030-J0iAT180,ST18#..CP,LB198909-199108

DARK BLUE,TRIM8#

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-20190-02iAT180,ST18#..CP,LB198909-199008

RED,TRIM3#

main55961-20190-03iAT180,ST18#198909-199309

SHADOW GRAY,TRIM1#

main55961-20190-04iAT180,ST184..CP,LB199108-199309

DARK BLUE,TRIM8#

main55961-20190-16iAT180,ST184..CP,LB199008-199108

CHOCOLATE BROWN,TRIM4#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-20190-02iAT180,ST18#..CP,LB198909-199008

RED,TRIM3#

main55962-20190-03iAT180,ST18#198909-199309

SHADOW GRAY,TRIM1#

main55962-20190-04iAT180,ST18#..CP,LB198909-199108

DARK BLUE,TRIM8#

main55962-20190-16iAT180,ST18#..CP,LB199008-199108

CHOCOLATE BROWN,TRIM4#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-20110-02iAT180,ST18#198909-198912

RED,TRIM3#

main55981-20110-03iAT180,ST18#198909-198912

SHADOW GRAY,TRIM1#

main55981-20110-04iAT180,ST18#198909-198912

DARK BLUE,TRIM8#

main55981-20111-02iAT180,ST18#..CP,LB198912-199008

RED,TRIM3#

main55981-20111-03iAT180,ST18#198912-199309

SHADOW GRAY,TRIM1#

main55981-20111-04iAT180,ST18#..CP,LB198912-199108

DARK BLUE,TRIM8#

main55981-20111-06iAT180,ST18#..CP,LB199008-199108

CHOCOLATE BROWN,TRIM4#

55982GARNISH, DEFROSTER NOZZLE, NO.2

main55982-20110-02iAT180,ST18#198909-198912

RED,TRIM3#

main55982-20110-03iAT180,ST18#198909-198912

SHADOW GRAY,TRIM1#

main55982-20110-04iAT180,ST18#198909-198912

DARK BLUE,TRIM8#

main55982-20111-02iAT180,ST18#..CP,LB198912-199008

RED,TRIM3#

main55982-20111-03iAT180,ST18#198912-199309

SHADOW GRAY,TRIM1#

main55982-20111-04iAT180,ST18#..CP,LB198912-199108

DARK BLUE,TRIM8#

main55982-20111-06iAT180,ST18#..CP,LB199008-199108

CHOCOLATE BROWN,TRIM4#

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

5563132013ARM,UNDER TRAY DOOR CHECK

main55631-32013

9011906106

main90119-06106

9015950287

main90159-50287

9015950305

main90159-50305

9017906097

main90179-06097

9017908025

main90179-08025

9018305018

main90183-05018

9018305103

main90183-05103

9020505002

main90205-05002

9046714030

main90467-14030

9046804147

main90468-04147

9046804157

main90468-04157

9046805014

main90468-05014

9054103015

main90541-03015

9054105080

main90541-05080

9166540618

main91665-40618

9166560820

main91665-60820

9356855014

main93568-55014

54 parts on this diagram · 1 diagram in section
