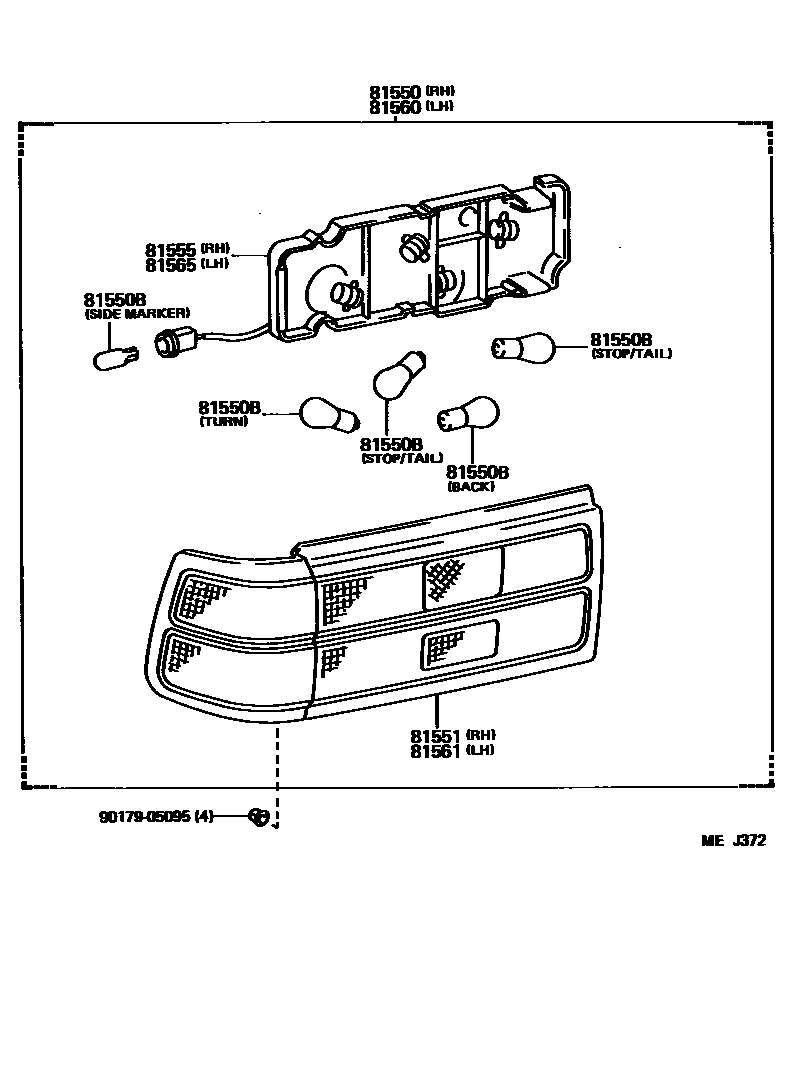

REAR COMBINATION LAMP

0001 1 0002 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-20681iST16#..LB198708-198908

main81550-20701iST162..CP,CVT198708-198908

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-11020×2iST16#198708-198908

12V 3.8W,SIDE MARKER

main99132-11270×4iST16#198708-198908

12V 27W,TURN OR BACK

main99132-21270×4iST16#198708-198908

12V 27/8W,STOP/TAIL

81551LENS, REAR COMBINATION LAMP, RH

main81551-20681iST16#..LB198708-198908

main81551-20711iST162..CP,CVT198708-198908

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-20681iST16#..LB198708-198908

main81555-20701iST162..CP,CVT198708-198908

81560LAMP ASSY, REAR COMBINATION, LH

main81560-20621iST16#..LB198708-198908

main81560-20641iST162..CP,CVT198708-198908

81561LENS, REAR COMBINATION LAMP, LH

main81561-20621iST16#..LB198708-198908

main81561-20651iST162..CP,CVT198708-198908

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81565-20621iST16#..LB198708-198908

main81565-20641iST162..CP,CVT198708-198908

9017905095

main90179-05095

8 parts on this diagram · 2 diagrams in section
