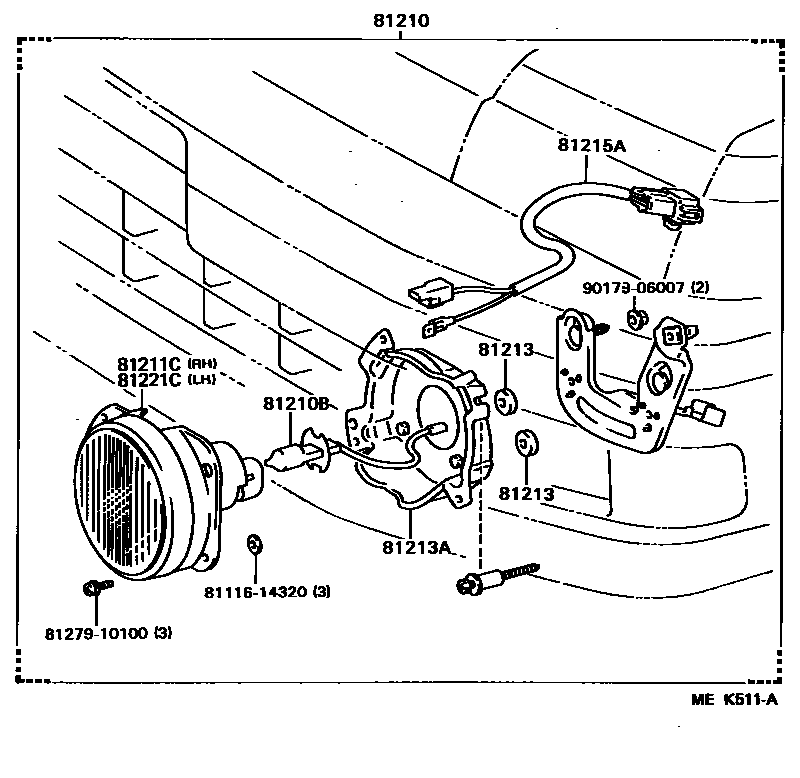

FOG LAMP

81210LAMP ASSY, FOG

main81210-29095iST165198710-198908

RH

main81220-29045iST165198710-198908

LH

81210BBULB, FOG LAMP

main90981-13040×2iST165198710-198908

12V 35W,HALOGEN

81211CLAMP UNIT, FOG LAMP, RH

main81211-20050iST165198710-198908

81213SPACER, FOG LAMP

main81218-30020×4iST165198710-198908

81213ABODY, FOG LAMP

main81213-20040iST165198710-198908

RH

main81223-20030iST165198710-198908

LH

81215ASOCKET & WIRE, FOG LAMP

main81215-20050×2iST165198710-198908

81221CLAMP UNIT, FOG LAMP, LH

main81221-20040iST165198710-198908

8111614320COVER, SEALED BEAM UNIT

main81116-14320

8127910100WASHER, SIDE TURN SIGNAL LAMP

main81279-10100

9017906007

main90179-06007

10 parts on this diagram · 1 diagram in section
