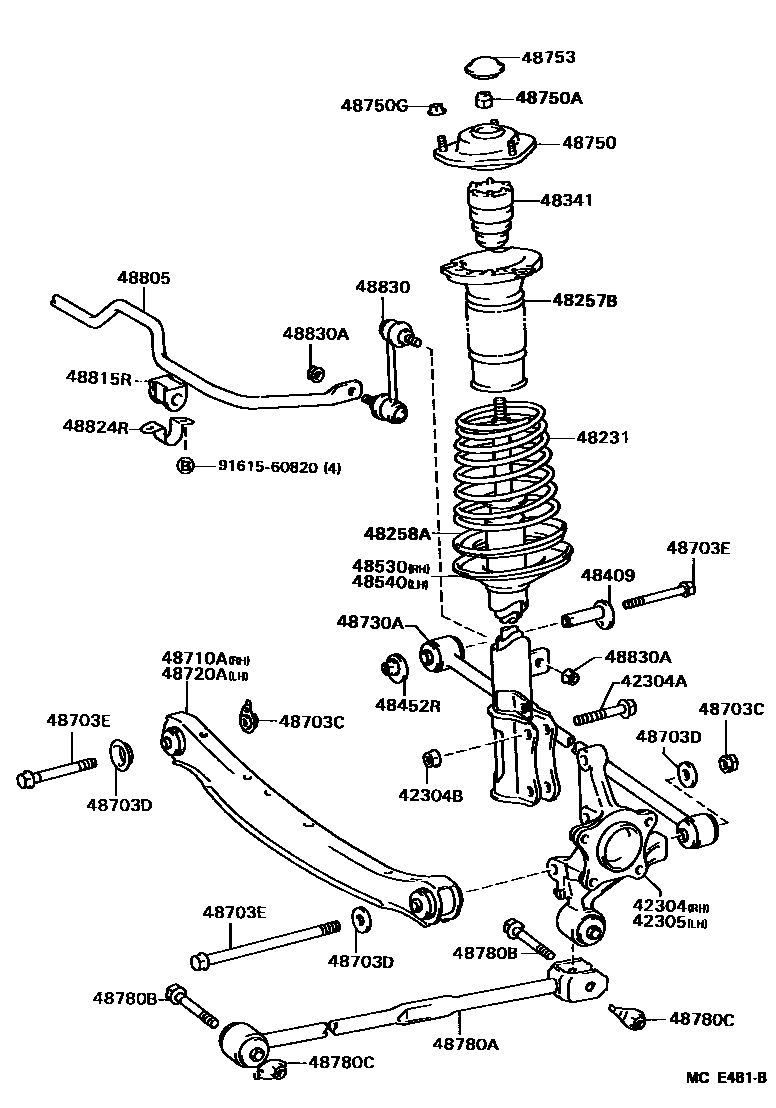

REAR SPRING & SHOCK ABSORBER
42304CARRIER SUB-ASSY, REAR AXLE, RH
42304ABOLT (FOR REAR AXLE CARRIER)
42304BNUT (FOR REAR AXLE CARRIER)
42305CARRIER SUB-ASSY, REAR AXLE, LH
48231SPRING, COIL, REAR
48257BINSULATOR, REAR COIL SPRING, UPPER
48258AINSULATOR, REAR COIL SPRING, LOWER
48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
48452RPLATE, REAR SUSPENSION TOE ADJUST, NO.2
48530ABSORBER ASSY, SHOCK, REAR RH
48540ABSORBER ASSY, SHOCK, REAR LH
48703CNUT(FOR REAR SUSPENSION ARM)
48703DWASHER(FOR REAR SUSPENSION ARM)
CARRIER SIDE
BODY SIDE
48703EBOLT(FOR REAR SUSPENSION ARM)
*10-1.25PX80-20
*12-1.25PX74.5-25
*14-1.5PX248-30
*12-1.25PX80-25
*12-1.25PX94-35
*14-1.50PX73-67
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
48730AARM ASSY, REAR SUSPENSION, NO.2
48750SUPPORT ASSY, REAR SUSPENSION
48750ANUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)
48750GNUT(FOR REAR SUSPENSION SUPPORT)
48753COVER, REAR SUSPENSION SUPPORT
48780BBOLT(FOR STRUT ROD)
48780CNUT(FOR STRUT ROD)
CARRIER SIDE
BODY SIDE
48805BAR SUB-ASSY, REAR STABILIZER
48815RBUSH, STABILIZER(FOR REAR)
48824RBRACKET, STABILIZER(FOR REAR)
W(ANTI-LOCK BRAKE SYSTEM),RH
W(ANTI-LOCK BRAKE SYSTEM),LH
48830LINK ASSY, REAR STABILIZER
GREEN PEINTED
GREEN PEINTED
48830ANUT(FOR REAR STABILIZER LINK)
9161560820
main91615-60820
31 parts on this diagram · 2 diagrams in section
