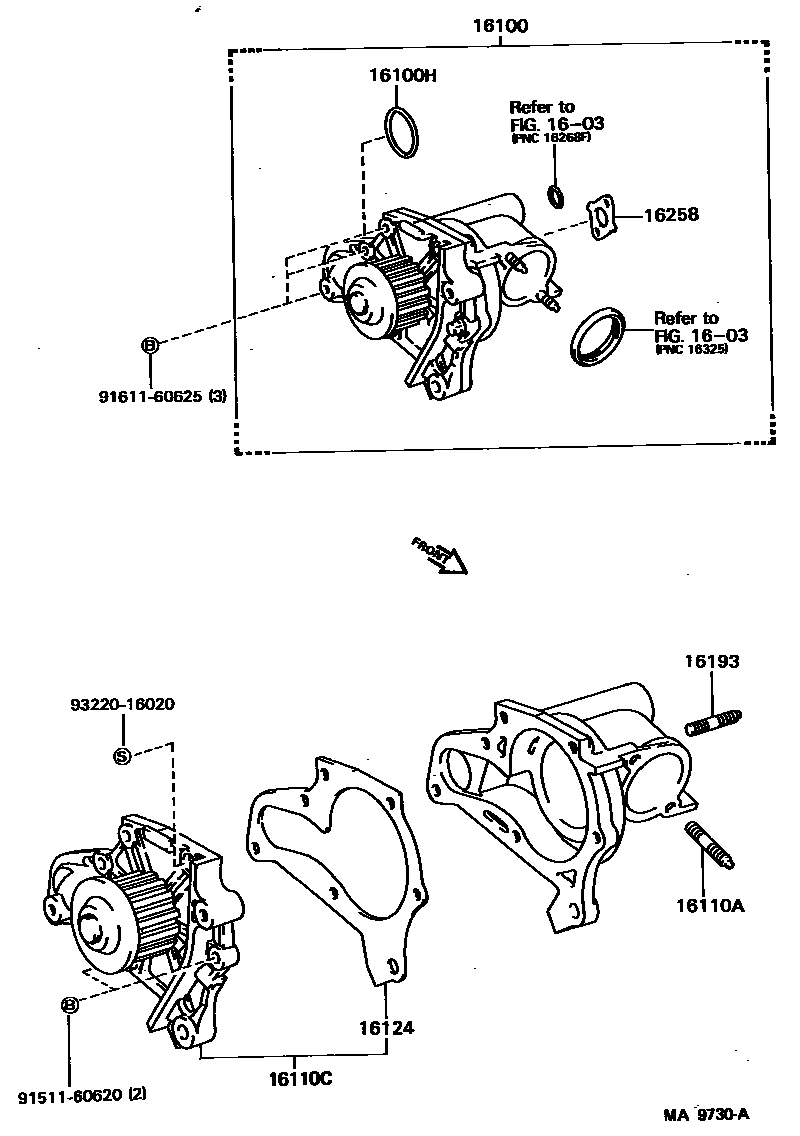

WATER PUMP

0001 1 0002 1 0003 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16100PUMP ASSY, ENGINE WATER

main16100-79075i3SFE..ST162198708-198908

main16100-79095i3SGELC..ST162198708-198908

main16100-79105i3SGTE..ST165198710-198908

16100HRING, O(FOR WATER PUMP)

main90301-37005i3SFE,3SG#..ST16#198808-198908

main96711-24037i3SFE,3SGELC..ST162198708-198808

16110ABOLT, STUD(FOR WATER OUTLET SETTING)

main16193-63010×2i3SFE,3SG#..ST16#198708-198908

16110CPUMP ASSY, WATER, W/O COVER

main16110-79025i3SFE..ST162198708-198908

main16110-79095i3SGELC..ST162198708-198908

main16110-79105i3SGTE..ST165198710-198908

16124GASKET, WATER PUMP COVER

main16124-74010i3SFE,3SG#..ST16#198708-198908

16193BOLT, STUD(FOR WATER PUMP COVER)

main90029-01500×2i3SFE,3SG#..ST16#198708-198908

16258GASKET(FOR HEATER RETURN)

main16258-15011i3SFE,3SGELC..ST162198708-198907

main16258-74020i3SFE,3SGELC..ST162198907-198908

9151160620

main91511-60620

9161160625

main91611-60625

9322016020

main93220-16020

11 parts on this diagram · 3 diagrams in section
