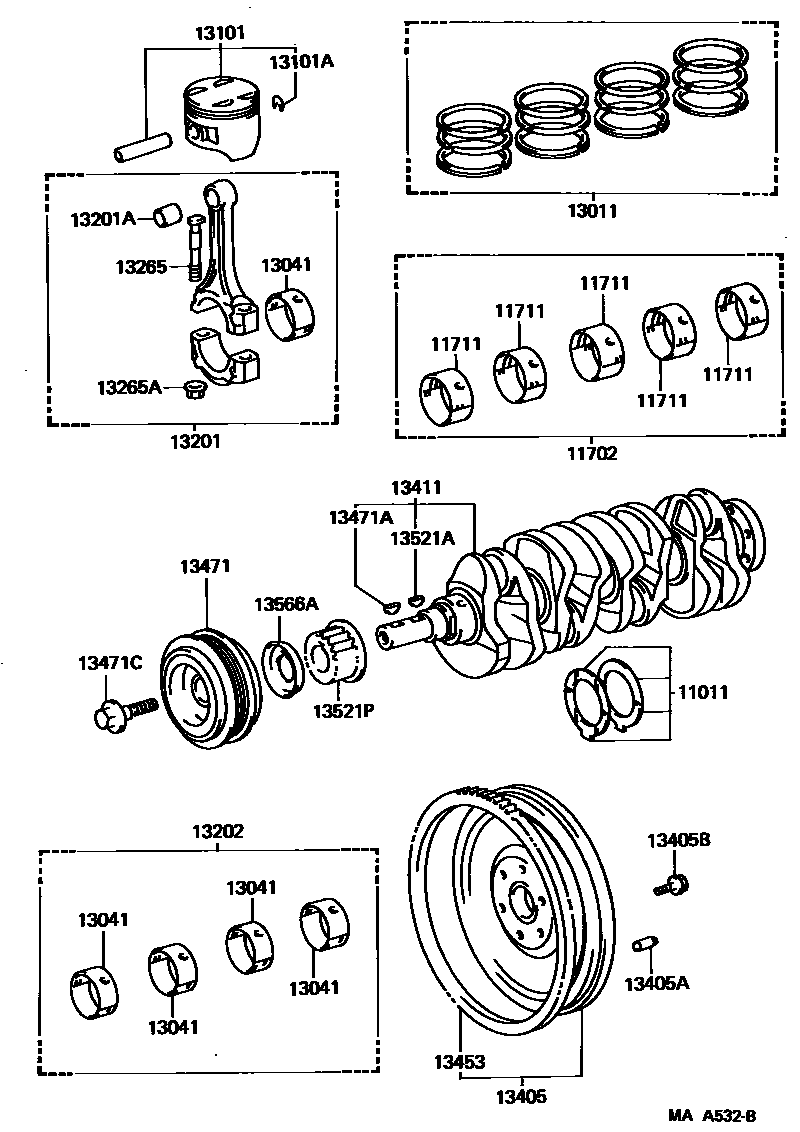

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD
11702BEARING SET, CRANKSHAFT
U/S 0.25
U/S 0.25
11711BEARING, CRANKSHAFT
MARK 1,NO.3,MARK 1; MARK 1,NO.3,TAIHO
MARK 2,NO.3,MARK 2; MARK 2,NO.3,TAIHO
MARK 3,NO.3,MARK 3; MARK 3,NO.3,TAIHO
MARK 4,NO.3,MARK 4; MARK 4,NO.3,TAIHO
MARK 5,NO.3,MARK 5; MARK 5,NO.3,TAIHO
MARK 1,NO.3; MARK 1,NO.3,DAIDO
MARK 2,NO.3; MARK 2,NO.3,DAIDO
MARK 3,NO.3; MARK 3,NO.3,DAIDO
MARK 4,NO.3; MARK 4,NO.3,DAIDO
MARK 5,NO.3; MARK 5,NO.3,DAIDO
MARK 1,NO.1,2,4,5,MARK 1; MARK 1,NO.1,2,4,5,TAIHO
MARK 2,NO.1,2,4,5,MARK 2; MARK 2,NO.1,2,4,5,TAIHO
MARK 3,NO.1,2,4,5,MARK 3; MARK 3,NO.1,2,4,5,TAIHO
MARK 4,NO.1,2,4,5,MARK 4; MARK 4,NO.1,2,4,5,TAIHO
MARK 5,NO.1,2,4,5,MARK 5; MARK 5,NO.1,2,4,5,TAIHO
MARK 1,NO.1,2,4,5; MARK 1,NO.1,2,4,5,DAIDO
MARK 2,NO.1,2,4,5; MARK 2,NO.1,2,4,5,DAIDO
MARK 3,NO.1,2,4,5; MARK 3,NO.1,2,4,5,DAIDO
MARK 4,NO.1,2,4,5; MARK 4,NO.1,2,4,5,DAIDO
MARK 5,NO.1,2,4,5; MARK 5,NO.1,2,4,5,DAIDO
13011RING SET, PISTON
STD
STD
STD
STD
O/S 0.50,O/S 0.50
O/S 0.50,O/S 0.50
13041BEARING, CONNECTING ROD
MARK 1
MARK 2
MARK 3
MARK 1
MARK 2
MARK 3
13101PISTON SUB-ASSY, W/PIN
STD
STD
STD,MARK1
STD,MARK2
STD,MARK3
STD
STD,MARK1
STD,MARK2
STD,MARK3
STD
STD,MARK1
STD,MARK2
STD,MARK3
O/S 0.50,O/S 0.50
O/S 0.50
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
13201ABUSH(FOR CONNECTING ROD SMALL END)
13202BEARING SET, CONNECTING ROD
U/S 0.25
U/S 0.25
13265BOLT, CONNECTING ROD
13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)
13405FLYWHEEL SUB-ASSY
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=23,OD=8
13405BBOLT, FLYWHEEL SETTING
13411CRANKSHAFT
13453GEAR, FLYWHEEL RING
13471PULLEY, CRANKSHAFT
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
13521PPULLEY, CRANKSHAFT TIMING
13566AGUIDE, TIMING BELT
23 parts on this diagram · 2 diagrams in section
