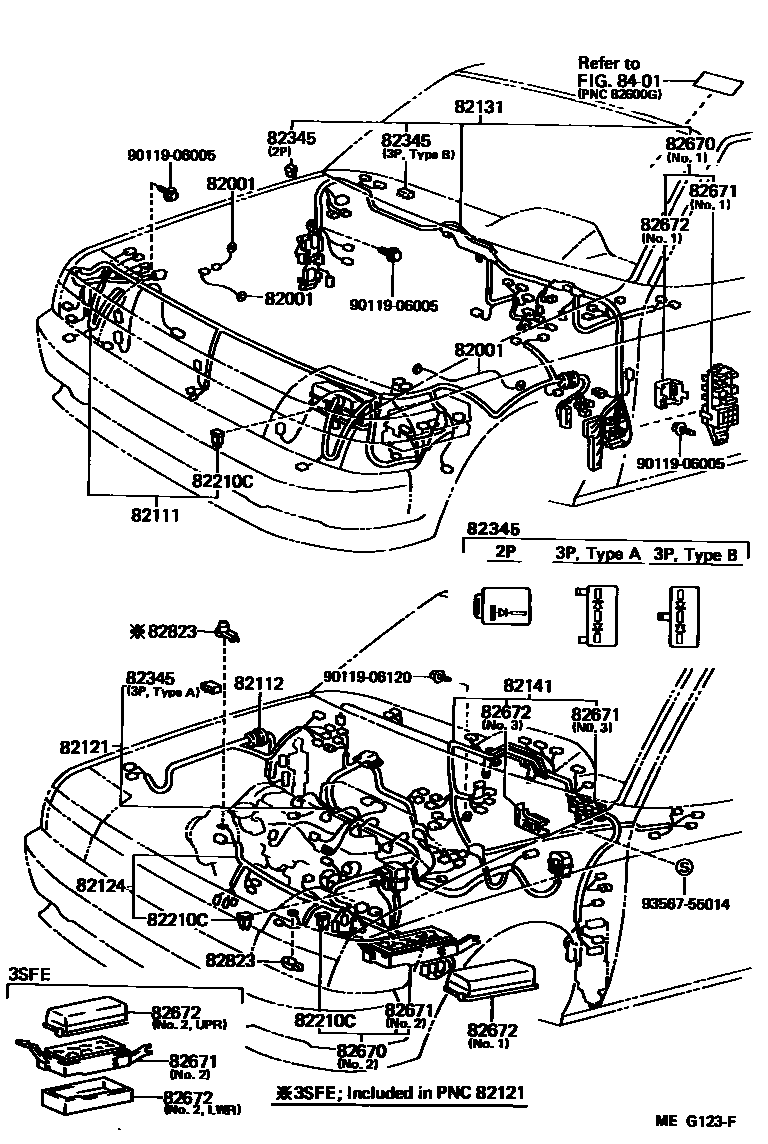

WIRING & CLAMP
82001CABLE, BOND, NO.1
ENGINE HANGGER
FENDER RH
ENGINE HANGGER
TRANSMISSION-FENDER LH
ENGINE HANGGER
82111WIRE, ENGINE ROOM MAIN
82112WIRE, ENGINE ROOM, NO.2
W/*CRC
82121WIRE, ENGINE
82131WIRE, COWL
W/*MIH OR *RW(W/O *CRC OR *PW)
W/*MIH OR *RW(W/O *CRC OR *PW)
W/*CRC OR *PW
W/*CRC OR *PW
82141WIRE, INSTRUMENT PANEL
W/*AS
W/*AS
W/*AS; W/*CRC & *AS
W/*AS; W/*CRC & *AS
W/*DS
W/*DS
W/*AS; W/*CRC & *AS
82210CFUSIBLE LINK
30A,TERM.:FEMALE,PNK,30A,TYPE A
40A,TERM.:FEMALE,GRN,40A
80A,TERM.:MALE,BLK,80A
30A,TERM.:MALE,PNK,30A,TYPE B
100A,TERM.:MALE,BLUE,100A
82345DIODE
2P
3P,TYPE B
3P,TYPE A
82670BLOCK ASSY, JUNCTION, NO.1
NO.1
NO.2
82671BLOCK, JUNCTION
NO.1
NO.2
NO.3
NO.2
82672COVER, JUNKTION BLOCK
NO.1
NO.2
NO.3
NO.2,LWR
NO.2,UPR
82823CAP, TERMINAL, NO.1
STARTER
ALTERNATOR
ALTERNATOR
ALTERNATOR
8401SWITCH & RELAY & COMPUTER
9011906005
main90119-06005
9011906120
main90119-06120
9356755014
main93567-55014
17 parts on this diagram · 8 diagrams in section
