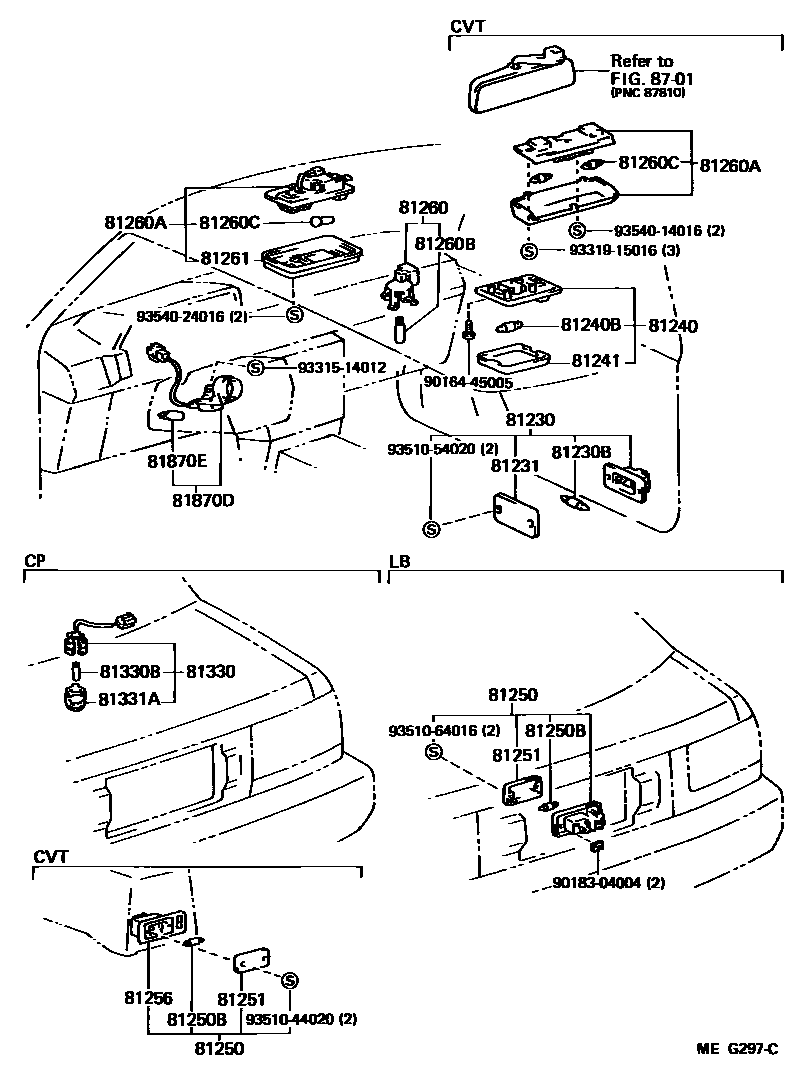

INTERIOR LAMP
81230LAMP ASSY, COURTESY
81230BBULB(FOR COURTESY LAMP)
12V 5W,12V 5W
81231LENS, COURTESY LAMP
81240LAMP ASSY, ROOM, NO.1
RED,RED,TRIM3#
BLUE,DEEP BLUE,TRIM8#
BROWN,SEPIA BROWN,TRIM4#
GRAY,SHADOW GRAY,TRIM1#
RED,RED,TRIM3#
BLUE,DARK BLUE,TRIM8#
BROWN,SEPA BROWN,TRIM4#
GRAY,SHADOW GRAY,TRIM1#
81240BBULB, ROOM LAMP, NO.1
12V 10W,12V 10W
81241LENS, ROOM LAMP, NO.1
81250LAMP ASSY, ROOM, NO.2
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
GRAY,GRAY,TRIM1#
RED,RED,TRIM3#
GRAY,SHADOW GRAY,TRIM1#
81250BBULB, ROOM LAMP, NO.2
12V 5W,12V 5W
81251LENS, ROOM LAMP, NO.2
81256RIM, ROOM LAMP, NO.2
GRAY,SHADOW GRAY,TRIM1#
81260LAMP ASSY, GLOVE BOX
81260ALAMP ASSY, MAP
RED,RED,TRIM3#
GRAY,SHADOW GRAY,TRIM1#
BLUE,DEEP BLUE,TRIM8#
BROWN,BROWN,TRIM4#
GRAY,SHADOW GRAY,TRIM1#
81260BBULB(FOR GLOVE BOX)
12V 1.2W W/O SOCKET
81260CBULB(FOR MAP LAMP)
12V 10W,12V 10W
12V 10W,12V 10W
81261LENS AND COVER, MAP LAMP
RED,RED,TRIM3#
GRAY,SHADOW GRAY,TRIM1#
BLUE,DEEP BLUE,TRIM8#
BROWN,BROWN,TRIM4#
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
12V 3.8W,12V 3.8KW
12V 5W,12V 5W
81331ACOVER, LUGGAGE COMPARTMENT LAMP
81870DLAMP ASSY, KEY CYLINDER
81870EBULB, KEY CYLINDER LAMP
12V 1.2W W/O SOCKET,12V 1.4W
8701MIRROR
9016445005
main90164-45005
9018304004
main90183-04004
9331514012
main93315-14012
9331915016
main93319-15016
9351044020
main93510-44020
9351054020
main93510-54020
9351064016
main93510-64016
9354014016
main93540-14016
9354024016
main93540-24016
30 parts on this diagram · 1 diagram in section
