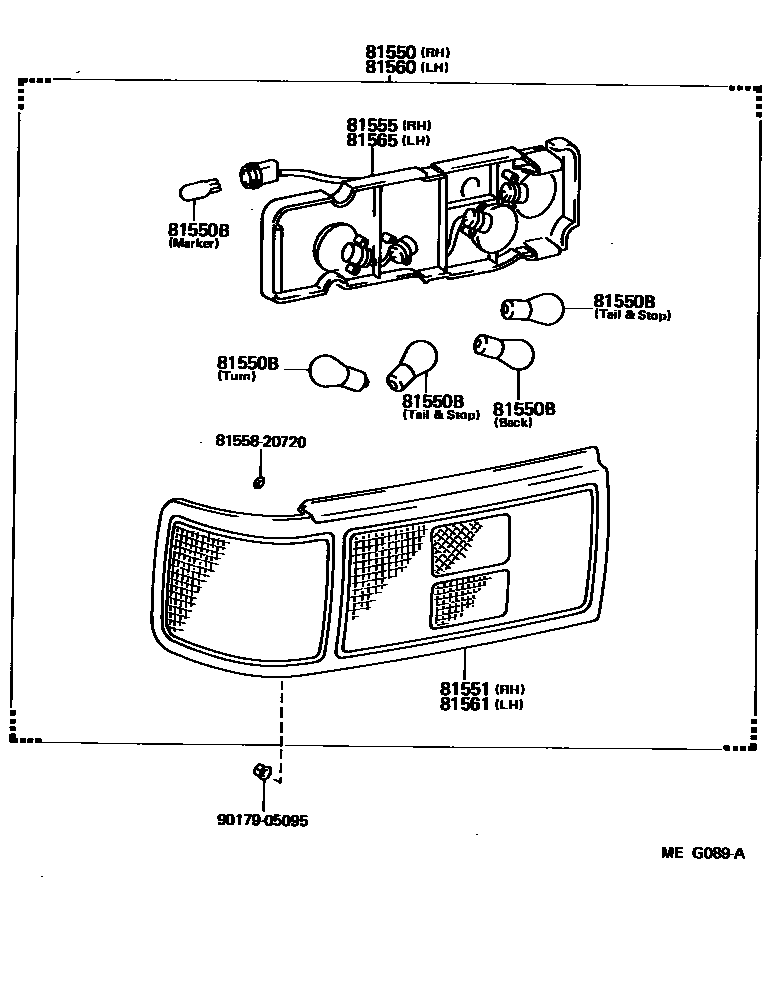

REAR COMBINATION LAMP

0001 1 0002 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-20680iST16#..LB198508-198708

main81550-20700iST16#..CP,CVT198508-198708

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-11020×2iST16#198508-198708

12V 3.8W,12V 3.8W(MARKER)

main99132-11270×4iST16#198508-198708

12V 27W,12V 27W(TURN & BACK)

main99132-21270×4iST16#198508-198708

12V 27/8W,12V 27/8W(TAIL & STOP)

81551LENS, REAR COMBINATION LAMP, RH

main81551-20680iST16#..LB198508-198708

main81551-20700iST16#..CP,CVT198508-198708

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-20680iST16#..LB198508-198708

main81555-20700iST16#..CP,CVT198508-198708

81560LAMP ASSY, REAR COMBINATION, LH

main81560-20620iST16#..LB198508-198708

main81560-20640iST16#..CP,CVT198508-198708

81561LENS, REAR COMBINATION LAMP, LH

main81561-20620iST16#..LB198508-198708

main81561-20640iST16#..CP,CVT198508-198708

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81565-20620iST16#..LB198508-198708

main81565-20640iST16#..CP,CVT198508-198708

8155820720SHADE, REAR COMBINATION LAMP, NO.1 RH

main81558-20720

9017905095

main90179-05095

9 parts on this diagram · 2 diagrams in section
