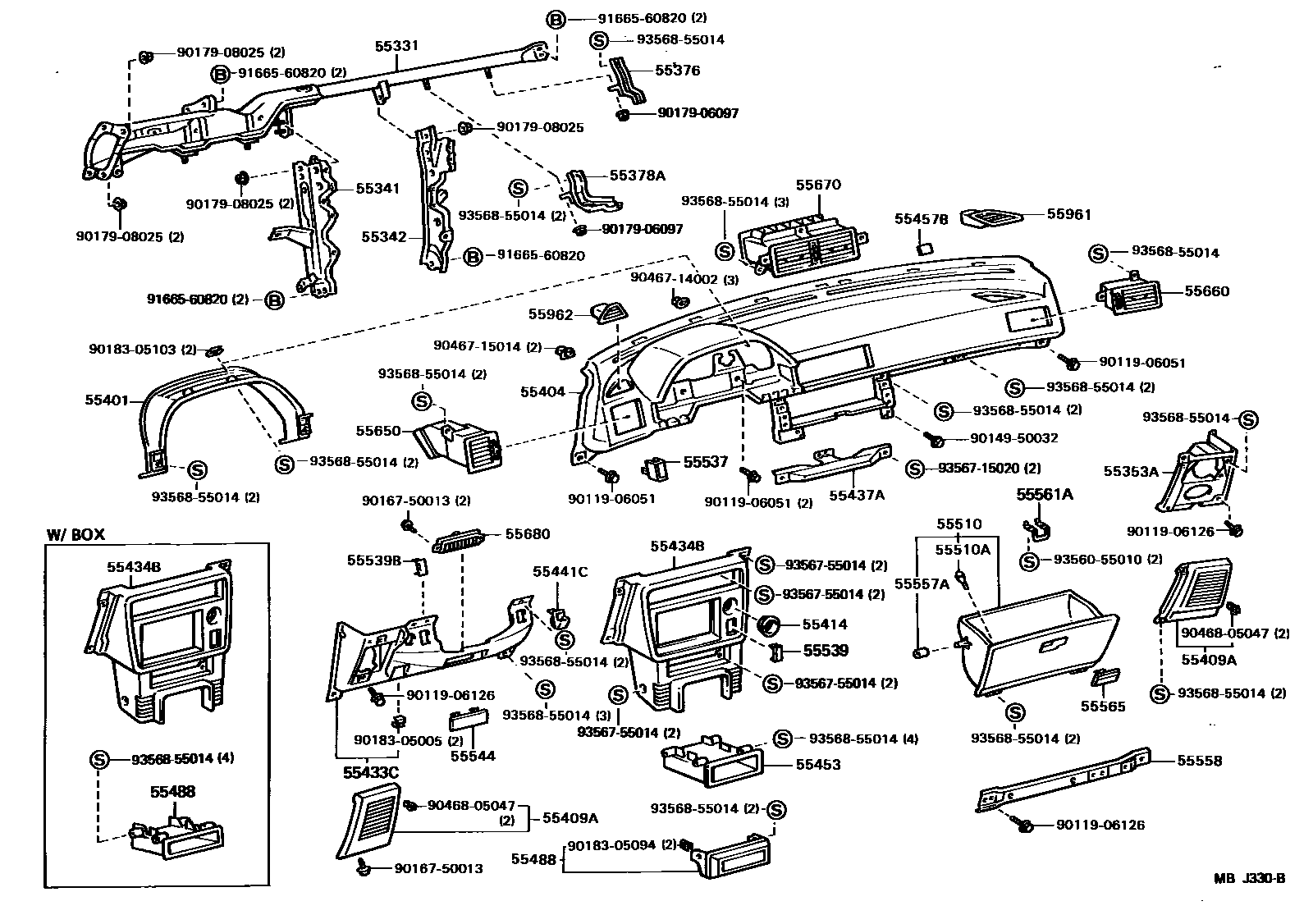

INSTRUMENT PANEL & GLOVE COMPARTMENT
55331REINFORCEMENT, INSTRUMENT PANEL
55341BRACE, INSTRUMENT PANEL, NO.1
55342BRACE, INSTRUMENT PANEL, NO.2
55353ABRACKET, SPEAKER MOUNTING, NO.1
RED,RED,TRIM3#
GRAY,SHADOW GRAY,TRIM1#
BLUE,DEEP BLUE,TRIM8#
BROWN,BROWN,TRIM4#
55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1
55378ABRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING
55401PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH
55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER
RED,RED,TRIM3#
GRAY,SHADOW GRAY,TRIM1#
BLUE,DEEP BLUE,TRIM8#
BROWN,BROWN,TRIM4#
55409APANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER
LH,RED,RED,TRIM3#
LH,GRAY,SHADOW GRAY,TRIM1#
LH,BLUE,DEEP BLUE,TRIM8#
LH,BROWN,BROWN,TRIM4#
RH,RED,RED,TRIM3#
RH,GRAY,SHADOW GRAY,TRIM1#
RH,BLUE,DEEP BLUE,TRIM8#
RH,BROWN,BROWN,TRIM4#
55414BEZEL, CIGAR LIGHTER HOLE
55433CPANEL, INSTRUMENT PANEL FINISH, LOWER LH
RED,RED,TRIM3#
GRAY,SHADOW GRAY,TRIM1#
BLUE,DEEP BLUE,TRIM8#
BROWN,BROWN,TRIM4#
55434BPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER
RED,RED,TRIM3#
GRAY,SHADOW GRAY,TRIM1#
BLUE,DEEP BLUE,TRIM8#
BROWN,BROWN,TRIM4#
RED,RED,TRIM3#
GRAY,SHADOW GRAY,TRIM1#
BLUE,DEEP BLUE,TRIM8#
BROWN,BROWN,TRIM4#
55437ARETAINER, INSTRUMENT PANEL FINISH PANEL, NO.1
55441CBOX, INSTRUMENT PANEL COIN
GRAY,GRAY,TRIM1#
RED,RED,TRIM3#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
BLUE,DEEP BLUE,TRIM8#
55453COVER, RADIO TUNER OPENING
55457BSPACER, INSTRUMENT PANEL SAFETY PAD
55488COVER, STEREO OPENING
W/BOX
55510DOOR ASSY, GLOVE COMPARTMENT
RED,RED,TRIM3#
GRAY,SHADOW GRAY,TRIM1#
BLUE,DEEP BLUE,TRIM8#
BROWN,BROWN,TRIM4#
55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)
55537COVER, REAR WINDOW DEFOGGER SWITCH HOLE
GRAY,SHADOW GRAY,TRIM1#
55539COVER, SPARE SWITCH HOLE
BLACK,BLACK,TRIM1#
55539BCOVER, SPARE SWITCH HOLE, NO.2
RED,RED,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,DEEP BLUE,TRIM8#
BROWN,BROWN,TRIM4#
55544COVER, INSTRUMENT PANEL REGISTER HOLE
BEIGE,BEIGE,TRIM4#
RED,RED,TRIM3#
GRAY,SHADOW GRAY,TRIM1#
BLUE,DEEP BLUE,TRIM8#
55557ACUSHION, GLOVE COMPARTMENT DOOR CHECK
55558REINFORCEMENT, GLOVE COMPARTMENT DOOR
55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK
55565HANDLE, GLOVE COMPARTMENT DOOR LOCK
RED,RED,TRIM3#
GRAY,SHADOW GRAY,TRIM1#
BLUE,DEEP BLUE,TRIM8#
BROWN,SABLE,TRIM4#
55650REGISTER ASSY, INSTRUMENT PANEL, NO.1
RED,RED,TRIM3#
GRAY,SHADOW GRAY,TRIM1#
BLUE,DEEP BLUE,TRIM8#
BROWN,BROWN,TRIM4#
55660REGISTER ASSY, INSTRUMENT PANEL, NO.2
RED,RED,TRIM3#
GRAY,SHADOW GRAY,TRIM1#
BLUE,DEEP BLUE,TRIM8#
BROWN,BROWN,TRIM4#
RED,RED,TRIM3#
GRAY,SHADOW GRAY,TRIM1#
BLUE,DEEP BLUE,TRIM8#
BROWN,BROWN,TRIM4#
55670REGISTER ASSY, INSTRUMENT PANEL, NO.3
RED,RED,TRIM3#
GRAY,SHADOW GRAY,TRIM1#
BLUE,DEEP BLUE,TRIM8#
BROWN,BROWN,TRIM4#
RED,RED,TRIM3#
GRAY,SHADOW GRAY,TRIM1#
BLUE,DEEP BLUE,TRIM8#
BROWN,BROWN,TRIM4#
55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1
55961NOZZLE, SIDE DEFROSTER, NO.1
RED,RED,TRIM3#
GRAY,SHADOW GRAY,TRIM1#
BLUE,DEEP BLUE,TRIM8#
BROWN,BROWN,TRIM4#
55962NOZZLE, SIDE DEFROSTER, NO.2
RED,RED,TRIM3#
GRAY,SHADOW GRAY,TRIM1#
BLUE,DEEP BLUE,TRIM8#
BROWN,BROWN,TRIM4#
9011906051
main90119-06051
9011906126
main90119-06126
9014950032
main90149-50032
9016750013
main90167-50013
9017906097
main90179-06097
9017908025
main90179-08025
9018305005
main90183-05005
9018305094
main90183-05094
9018305103
main90183-05103
9046714002
main90467-14002
9046715014
main90467-15014
9046805047
main90468-05047
9166560820
main91665-60820
9356055010
main93560-55010
9356715020
main93567-15020
9356755014
main93567-55014
9356855014
main93568-55014
50 parts on this diagram · 1 diagram in section
