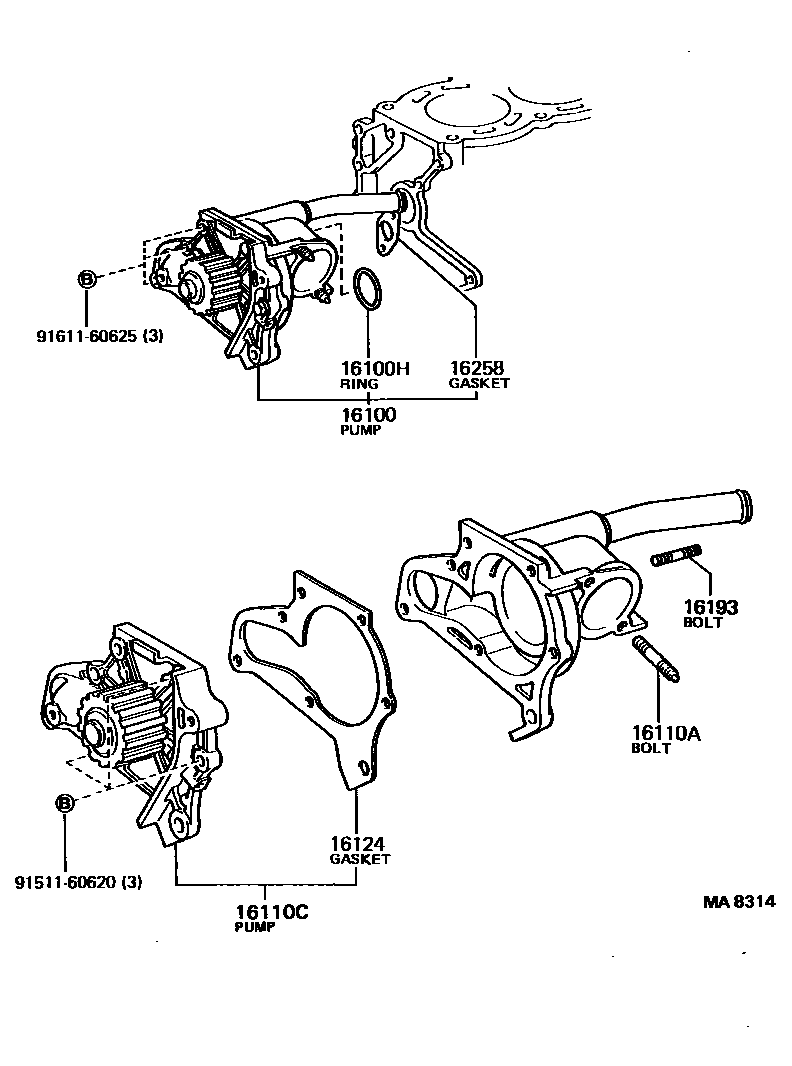

WATER PUMP

0001 1 0002 1 0003 1

16100PUMP ASSY, ENGINE WATER

main16100-69075i2SELC..ST161198508-198608

main16100-79045i3SGELC..ST162198508-198708

main16100-79075i3SFE..ST162198608-198708

main16100-79095i3SGELC..ST162198708-198708

16100HRING, O(FOR WATER PUMP)

main96711-24037i2SELC,3S#..ST16#198508-198708

16110ABOLT, STUD(FOR WATER OUTLET SETTING)

main16193-63010×2i2SELC,3S#..ST16#198508-198708

16110CPUMP ASSY, WATER, W/O COVER

main16110-69035i2SELC..ST161198508-198608

main16110-79015i3SGELC..ST162198508-198708

main16110-79025i3SFE..ST162198608-198708

16124GASKET, WATER PUMP COVER

main16124-63010i2SELC..ST161198508-198608

main16124-74010i3S#..ST162198608-198708

main16124-88360i3SGELC..ST162198508-198608

16193BOLT, STUD(FOR WATER PUMP COVER)

main90029-01500×2i2SELC,3S#..ST16#198508-198708

16258GASKET(FOR HEATER RETURN)

main16258-15011i2SELC,3S#..ST16#198508-198708

9151160620

main91511-60620

9161160625

main91611-60625

9 parts on this diagram · 3 diagrams in section
