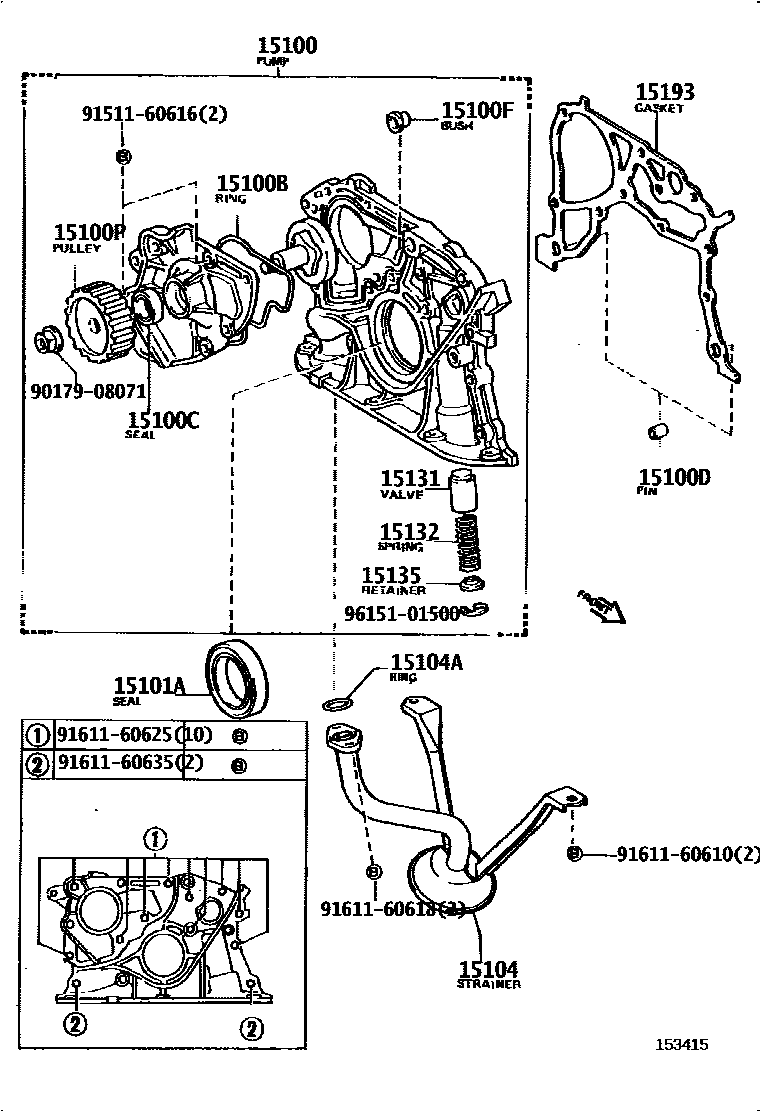

ENGINE OIL PUMP

0001 1 0002 1 0003 1

15100PUMP ASSY, OIL

main15100-63010i2SELC..ST161198508-198608

main15100-74010i3SFE..ST162198608-198708

main15100-88360i3SGELC..ST162198508-198708

15100BRING, O(FOR OIL PUMP)

main15188-63010i2SELC,3S#..ST16#198508-198708

15100CSEAL(FOR OIL PUMP)

main15165-70010i2SELC,3S#..ST16#198508-198708

15100DPIN(FOR OIL PUMP SET)

main90253-09001×2i2SELC,3S#..ST16#198508-198708

15100FBUSH (FOR OIL PUMP)

main15186-70010i2SELC,3SGELC..ST16#198508-198510

main90029-38300i2SELC,3S#..ST16#198510-198708

15100PPULLEY, OIL PUMP DRIVE SHAFT

main13524-63010i2SELC..ST161198508-198608

main13524-74020i3SFE..ST162198608-198708

main13524-88360i3SGELC..ST162198508-198708

15101ASEAL(FOR CRANKSHAFT)

main90311-42003i2SELC,3S#..ST16#198508-198708

15104STRAINER SUB-ASSY, OIL

main15104-63021i2SELC..ST161198508-198608

main15104-88360i3SGELC..ST162198508-198607

main15104-88361i3SGELC..ST162198607-198708

15104ARING, O(FOR OIL STRAINER)

main96721-19020i2SELC..ST161198508-198608

15131VALVE, OIL PUMP RELIEF

main15131-24010i2SELC,3S#..ST16#198508-198708

15132SPRING, OIL PUMP RELIEF VALVE

main15132-40010i2SELC,3S#..ST16#198508-198708

15135RETAINER, OIL PUMP RELIEF VALVE

main15135-15010i2SELC,3S#..ST16#198508-198708

15193GASKET, OIL PUMP

main15197-63010i2SELC,3S#..ST16#198508-198609

main15197-63020i3S#..ST162198609-198708

9017908071

main90179-08071

9151160616

main91511-60616

9161160610

main91611-60610

9161160618

main91611-60618

9161160625

main91611-60625

9161160635

main91611-60635

9615101500

main96151-01500

20 parts on this diagram · 3 diagrams in section
