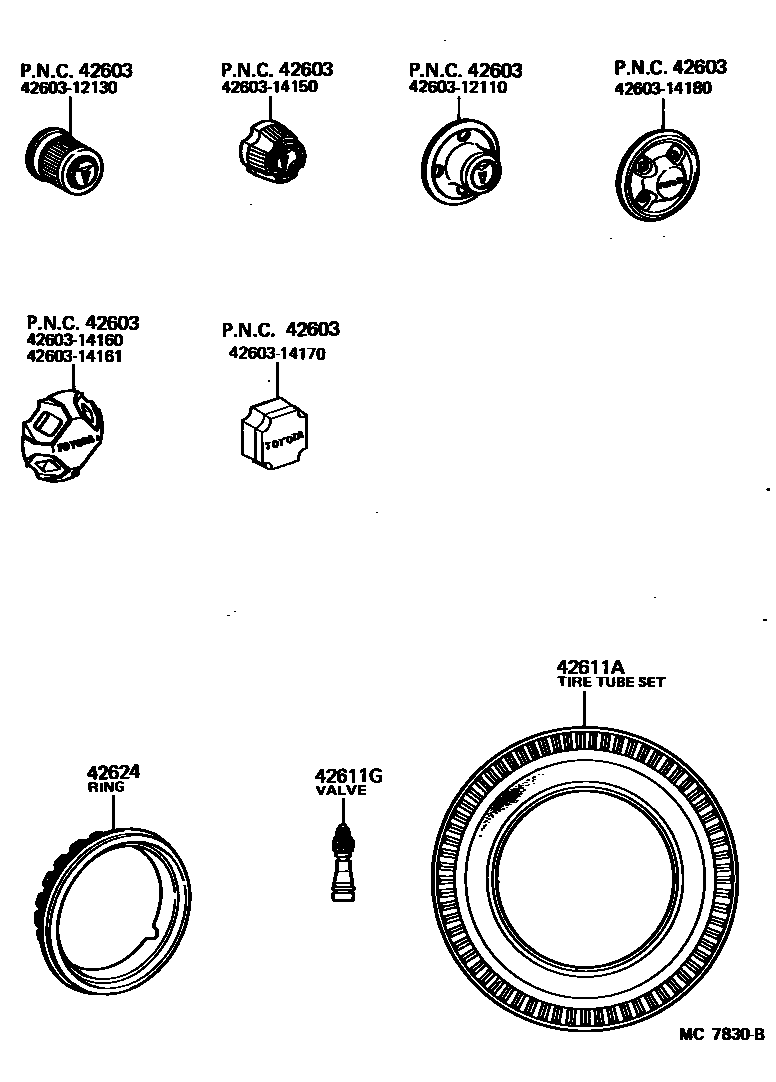

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42611ATIRE TUBE SET OR TUBELESS TIRE

main42652-14110iRA60,61..EUR,GEN,ME,SAA198108-198507

165SR14,T/L

main42652-14140iTA60198108-198507

165SR13,T/L

main42652-14230iMA61..SAA198208-198308

195/70HR14

main42652-14381iMA61..GEN,SA,SAA198308-198512

225/60HR14

main42652-14390iMA61..ARL,GEN,SAA198308-198512

SPARE,185/70R14

main42652-14480iMA61..ARL198308-198512

225/60HR14

main42652-14490iRA65,SA63198308-198507

185/70HR14

main42652-22250iAA63,RA60,61,63198108-198507

185/70HR14,T/L,*(D),*(Y)

main42652-22280iRA60..ARL198108-198308

185/70SR14,W/T

main42652-22320iRA6#198203-198209

185/70HR14,T/L,*(B)

main42652-30110iMA61..GEN,SAA198308-198512

195/70HR14

main42652-30120iMA61..ARL198308-198512

195/70HR14

main98038-65140iRA60,61..GEN198108-198507

165SR14,W/T

main98048-73140iAA63,RA60,61,63..GEN198108-198507

185/70HR14,W/T

main98938-65130iTA60..GEN198108-198507

165SR13,W/T

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009iAA63,MA61,RA6#,SA63,TA60198108-198512

42624RING, WHEEL CAP

main42624-14030iRA6#..(GT,XT)..(EUR,GEN,ME)198108-198201

main42624-14031iRA6#..(GT,XT)..(EUR,GEN,ME)198201-198507

main42624-20030iRA61..XT198308-198507

4260312110ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12110

4260312130ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12130

4260314150ORNAMENT SUB-ASSY, WHEEL HUB

main42603-14150

4260314160ORNAMENT SUB-ASSY, WHEEL HUB

main42603-14160

4260314161ORNAMENT SUB-ASSY, WHEEL HUB

main42603-14161

4260314170ORNAMENT SUB-ASSY, WHEEL HUB

main42603-14170

4260314180ORNAMENT SUB-ASSY, WHEEL HUB

main42603-14180

10 parts on this diagram · 2 diagrams in section
