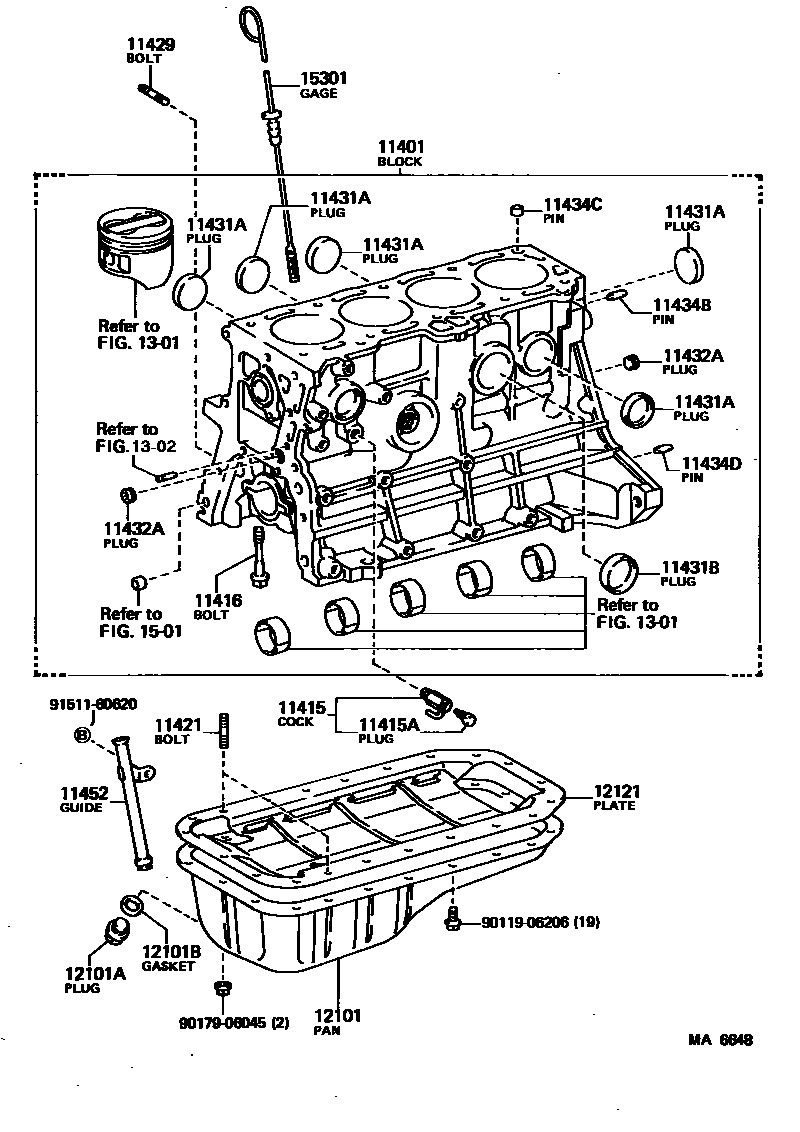

11401BLOCK SUB-ASSY, CYLINDER

main11401-19215i198308-198507

main11401-19235i198308-198507

main11401-29218i198108-198207

main11401-29295i198207-198504

main11401-29296i198504-198507

main11401-39345i198108-198203

main11401-39346i198203-198208

main11401-39355i198108-198203

main11401-39356i198203-198308

main11401-39357i198408-198408

main11401-39385i198108-198208

main11401-39387i198208-198308

main11401-39415i198208-198408

main11401-39435i198408-198507

main11401-39445i198408-198507

main11401-49276i198308-198408

main11401-49315i198308-198408

main11401-49325i198308-198408

main11401-49415i198408-198512

main11401-49425i198408-198512

main11401-49435i198408-198512

main11401-79045i198308-198408

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09070i198205-198504

main90910-09076i198308-198408

main90910-09079i198308-198406

main90910-09088i198406-198507

main96431-03833i198205-198507

main96431-53828i198504-198512

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90109-10023i198308-198406

main90109-14003i198308-198408

main90910-09072i198205-198504

main90910-09087i198406-198507

main96431-23814i198108-198205

main96432-23814i198504-198512

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90105-10007×10i198308-198507

main90105-10028×10i198308-198408

*10-1.25PX67-18

main90910-02032×10i198108-198507

*12-1.25PX62-21

main90910-02042×10i198108-198507

*12-1.25PX75-25

main90910-02047×14i198112-198512

11421BOLT, STUD(FOR OIL PAN)

main90116-06022×2i198308-198407

main90116-06049×2i198407-198507

main90116-08057×2i198108-198308

L=28,S=13&13

main90116-08208×2i198408-198512

main92122-40814×3i198108-198507

main92122-40818×2i198108-198507

11429BOLT, STUD(FOR ALTERNATOR BRACKET)

main90116-08170i198308-198507

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main96411-43500×8i198308-198507

OD=35

main96411-44000×7i198112-198512

OD=40

main96411-44500i198108-198308

main96411-45000×2i198108-198507

OD=50

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main96411-44000×6i198108-198507

OD=40

main96412-43500i198112-198512

OD=35

11432APLUG, W/HEAD TAPER SCREW, NO.1

main90341-32038i198108-198308

main90344-53002i198108-198312

RR

main90344-53008i198108-198507

FR

main90344-53011i198108-198201

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-08120×2i198108-198507

L=18,OD=8,L=18,OD=8

main90250-10113×2i198108-198507

L=22,OD=10,L=22,OD=10

main90250-10192×2i198112-198512

L=22,OD=10,L=22,OD=10

main90253-17012×2i198108-198308

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-08112×2i198112-198402

L=16,OD=8

main90250-08120×2i198108-198507

L=18,OD=8,L=18,OD=8

main90253-13017×2i198308-198507

L=12,OD=13

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06003×2i198308-198507

L=14,OD=6,L=14,OD=6

main90250-10192×2i198112-198512

L=22,OD=10,L=22,OD=10

11452GUIDE, OIL LEVEL GAGE

main11452-15010i198308-198507

main11452-18010i198108-198507

main11452-35010i198408-198507

main11452-38020i198108-198408

main11452-40010i198108-198308

main11452-41020i198308-198512

main11452-41030i198112-198512

main11452-63010i198308-198408

12101PAN SUB-ASSY, OIL

main12101-15040i198308-198407

main12101-15090i198407-198507

main12101-16010i198308-198407

main12101-16030i198407-198507

main12101-29105i198108-198507

main12101-35010i198408-198507

main12101-39325i198108-198408

main12101-39335i198108-198308

main12101-43040i198408-198512

main12101-49295i198308-198408

main12101-49305i198308-198408

main12101-69055i198308-198408

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i198408-198507

main90341-18089i198108-198408

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12011i198407-198507

main90430-18244i198108-198408

12121PLATE, OIL PAN BAFFLE, NO.1

main12122-16010i198308-198407

main12122-16011i198407-198507

1301CRANKSHAFT & PISTON

→ Go to FIG 13-01

1302CAMSHAFT & VALVE

→ Go to FIG 13-02

1501ENGINE OIL PUMP

→ Go to FIG 15-01

15301GAGE SUB-ASSY, OIL LEVEL

main15301-16010i198308-198507

main15301-18010i198108-198507

main15301-33013i198108-198308

main15301-35010i198108-198408

main15301-35020i198408-198507

main15301-43010i198112-198408

main15301-43020i198408-198512

main15301-43030i198408-198512

main15301-45010i198308-198408

main15301-63010i198308-198408

9011906206

main90119-06206

9017906045

main90179-06045

9151160620

main91511-60620
