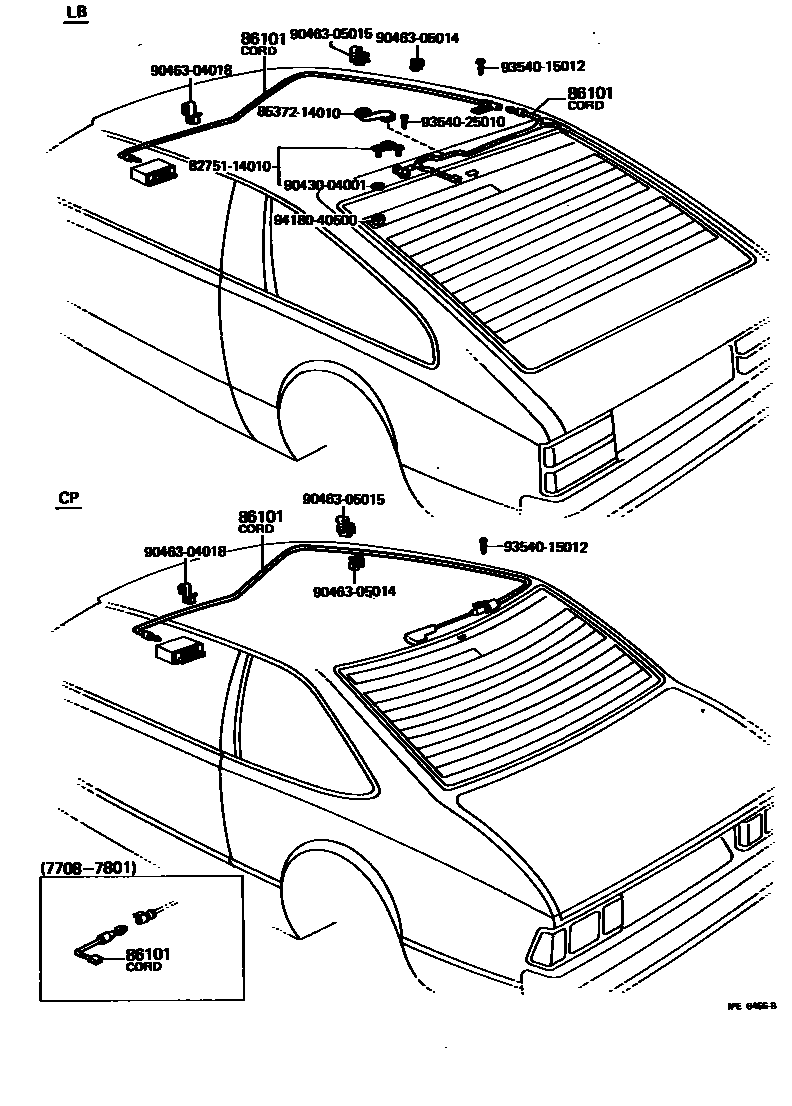

ANTENNA

0001 1 0002 1

86101CORD SUB-ASSY, ANTENNA

main86101-14050iRA40,TA40..CP197708-197801

L=150

main86101-14060iRA40,TA40..LB197708-197808

L=340

main86101-14090iRA40,TA40..RHD197708-197801

W/RR DEFOGGER,L=3200

main86101-14110iRA40,TA40..LB..RHD..GEN; TA40..LB..RHD..ST..EUG197801-197808

W/O RR DEFOGGER,L=3200

main86101-14140iRA40,TA40..LB..LHD197801-197808

W/RR DEFOGGER,L=3400

main86101-14150iRA40,TA40..LB..LHD..GEN; TA40..LB..LHD..ST..EUG197801-197808

W/O RR DEFOGGER,L=3400

main86101-14160iRA40,TA40..CP..RHD197801-197808

W/RR DEFOGGER,L=3340

main86101-14170iRA40,TA40..CP..RHD..GEN; TA40..CP..RHD..ST..EUG197801-197808

W/O RR DEFOGGER,L=3340

main86101-14180iRA40,TA40..CP..LHD197801-197808

W/RR DEFOGGER,L=3340

main86101-14190iRA40,TA40..CP..LHD..GEN; TA40..CP..LHD..(LT,ST)..EUG197801-197808

W/O RR DEFOGGER,L=3340

main86101-14200iRA40,TA40..CP..(ARL,GEN); RA40,TA40..CP..EUG197808-198107

main86101-14210iRA40,TA40..LB..(ARL,GEN); RA40,TA40..LB..EUG197808-198107

8275114010BLOCK, DRIVER SIDE RELAY

main82751-14010

8537214010HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85372-14010

9043004001

main90430-04001

9046304018

main90463-04018

9046305014

main90463-05014

9046305015

main90463-05015

9354015012

main93540-15012

9354025010

main93540-25010

9418040500

main94180-40500

10 parts on this diagram · 2 diagrams in section
