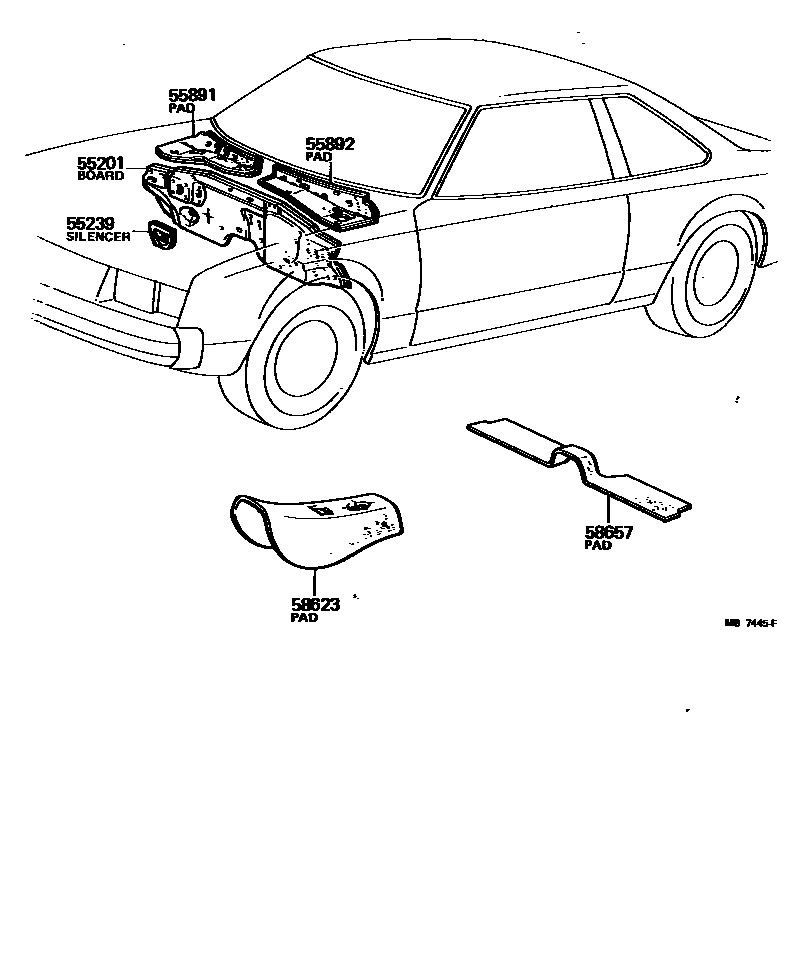

DASH SILENCER BOARD & FLOOR SILENCER PAD

55201BOARD SUB-ASSY, DASH PANEL SILENCER

main55210-14050iRA40,TA40..RHD197708-197908

main55210-14051iTA40..RHD197908-198107

main55210-14070iRA40..LHD197708-197908

main55210-14071iRA40..LHD197908-198107

main55210-14090iTA40..LHD197708-197908

main55210-14091iTA40..LHD197908-198107

main55210-14150iRA40..RHD197908-198107

55239SILENCER, STEERING COLUMN HOLE COVER

main55212-14040iRA40,TA40..RHD197708-198107

main55212-14050iRA40,TA40..LHD197708-198107

55891PAD, COWL TOP SILENCER, INNER RH

main55783-14040iRA40,TA40..RHD197708-197908

main55783-14041iRA40,TA40..RHD197908-198107

main55783-14050iRA40,TA40..LHD197708-197908

main55783-14051iRA40,TA40..LHD197908-198107

55892PAD, COWL TOP SILENCER, INNER LH

main55784-14030iRA40,TA40..RHD197708-197908

main55784-14031iRA40,TA40..RHD197908-198107

main55784-14050iRA40,TA40..LHD197708-197908

main55784-14051iRA40,TA40..LHD197908-198107

58623PAD, FLOOR SILENCER, FRONT CENTER

main58623-14030iRA40,TA40..MTM..EUR197708-197908

W/HEATER & RR DUCT

main58623-14031iRA40,TA40..MTM..EUR197908-198107

W/HEATER & RR DUCT

main58623-14040iRA40,TA40..3FC..EUR197708-197908

W/HEATER & RR DUCT

main58623-14041iRA40,TA40..3FC..EUR197908-198107

W/HEATER & RR DUCT

58657PAD, UNDER REAR SEAT SILENCER

main58657-14020iRA40,TA40197708-198107

6 parts on this diagram · 1 diagram in section
