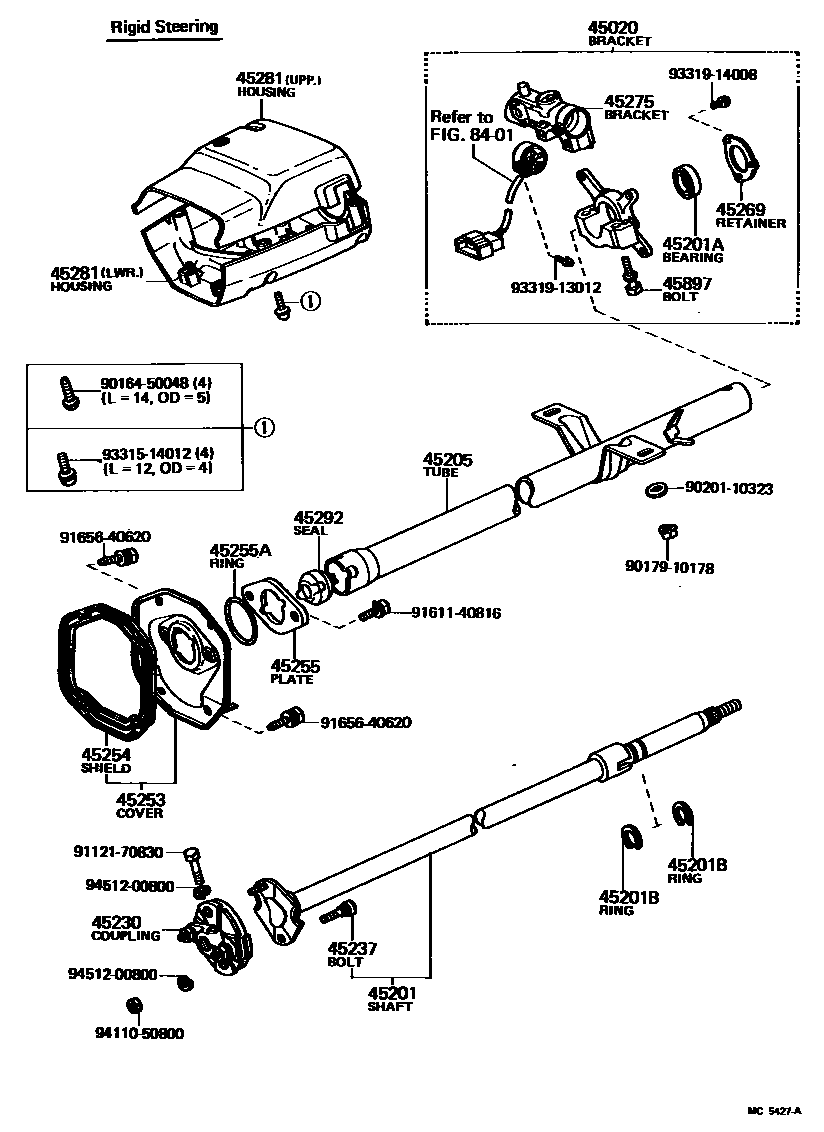

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1 0004 1 0005 1

45020BRACKET ASSY, STEERING COLUMN UPPER W/SWITCH

main45020-12111iRA40,TA40..LHD197708-198107

main45020-14020iRA40,TA40..RHD197708-197908

main45020-14050iRA40,TA40..RHD197908-198107

45201SHAFT SUB-ASSY, STEERING MAIN

main45201-14011iRA40,TA40..(LT,ST)..(ARL,GEN)197709-198107

RIGID TYPE

main45201-14070iRA40,TA40..(LT,ST)..(ARL,GEN)197708-197709

RIGID TYPE

main45201-14080iRA40,TA40197708-198005

BALL TYPE

main45201-14081iRA40,TA40198005-198107

BALL TYPE

main45210-22050iRA40,TA40..(GT,XT)..GEN197908-198107

W/TILT STRG

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18001iRA40,TA40..(GT,XT)..GEN197908-198107

UPR,W/TILT STRG

main90363-18002iRA40,TA40..RHD197908-198107

main90363-18038iRA40,TA40..LHD197708-198107

main90363-28001iRA40,TA40..(GT,XT)..GEN197908-198107

LWR,W/TILT STRG

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iRA40,TA40197708-198107

T=1.20,T=1.2

main90520-17196iRA40,TA40197708-198107

T=1.35-1.45,T=1.4

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-14011iRA40,TA40..(LT,ST)..(ARL,GEN)197708-198107

RIGID TYPE

main45870-14060iRA40,TA40197708-198107

BALL TYPE

main45870-14080iRA40,TA40..(GT,ST,XT)..EUR197908-198107

W/TILT STRG

45230COUPLING ASSY, FLEXIBLE

main45230-14020iRA40,TA40197708-198107

45237BOLT, FLEXIBLE ATTACHING(FOR STEERING MAIN SHAFT)

main90114-08027iRA40,TA40197708-198107

45253COVER, STEERING COLUMN HOLE

main45025-14070iRA40,TA40197708-198107

45254SHIELD, STEERING COLUMN HOLE

main45254-14040iRA40,TA40197708-198107

45255PLATE, STEERING COLUMN HOLE COVER

main45255-12020iRA40,TA40197708-198107

45255AGROMMET OR RING, O(FOR STEERING COLUMN CLAMP)

main90301-45202iRA40,TA40197708-198107

45269RETAINER, MAIN SHAFT BEARING

main45269-20010iRA40,TA40197708-197803

main45269-35010iRA40,TA40197803-198107

45275BRACKET, STEERING COLUMN, UPPER

main45280-22181iRA40,TA40..RHD..EUG197908-198107

W/TILT STRG

main45280-22200iRA40,TA40..LHD..(GT,XT)..GEN197908-198107

W/TILT STRG

main45307-12040iRA40,TA40197708-198107

45281HOUSING, STEERING COLUMN

main45286-14081-01iRA40,TA40..RHD197908-198107

UPR,BLACK,BLACK,TRIM2#

main45286-14081-04iRA40,TA40..RHD197908-198107

UPR,BLUE,BLUE,TRIM8#

main45286-14081-06iRA40,TA40..RHD197908-198107

UPR,L-BROWN,BROWN,TRIM4#

main45286-14090-01iRA40,TA40..RHD197708-197908

UPR,BLACK,BLACK,TRIM2#

main45286-14090-04iRA40,TA40..RHD197708-197908

UPR,BLUE,BLUE,TRIM8#

main45286-14090-06iRA40,TA40..RHD197708-197908

UPR,BROWN,BROWN,TRIM4#

main45286-14110-01iRA40,TA40..LHD197708-198107

UPR,BLACK,BLACK,TRIM2#

main45286-14110-04iRA40,TA40..LHD197708-198107

UPR,BLUE,BLUE,TRIM8#

main45286-14110-06iRA40,TA40..LHD197708-197908

UPR,BROWN,BROWN,TRIM4#

main45286-14110-16iRA40,TA40..LHD197908-198107

UPR,L-BROWN,BROWN,TRIM4#

main45286-14121-01iRA40,TA40..RHD..(GT,XT)..GEN197908-198107

UPR,BLACK,W/TILT STRG,BLACK,TRIM2#

main45286-14121-04iRA40,TA40..RHD..EUG197908-198107

UPR,BLUE,W/TILT STRG,BLUE,TRIM8#

main45286-14121-06iRA40,TA40..RHD..(GT,XT)..GEN197908-198107

UPR,L-BROWN,W/TILT STRG,BROWN,TRIM4#

main45286-14130-01iRA40,TA40..LHD..(GT,XT)..GEN197908-198107

UPR,BLACK,W/TILT STRG,BLACK,TRIM2#

main45286-14130-04iRA40,TA40..LHD..(GT,ST,XT)..EUR197908-198107

UPR,BLUE,W/TILT STRG,BLUE,TRIM8#

main45286-14130-16iRA40,TA40..LHD..(GT,XT)..GEN197908-198107

UPR,L-BROWN,W/TILT STRG,BROWN,TRIM4#

main45287-14070-01iRA40,TA40..RHD197708-197908

LWR,BLACK,BLACK,TRIM2#

main45287-14070-04iRA40,TA40..RHD197708-197908

LWR,BLUE,BLUE,TRIM8#

main45287-14070-06iRA40,TA40..RHD197708-197908

LWR,BROWN,BROWN,TRIM4#

main45287-14080-01iRA40,TA40..LHD197708-197908

LWR,BLACK,BLACK,TRIM2#

main45287-14080-04iRA40,TA40..LHD197708-197908

LWR,BLUE,BLUE,TRIM8#

main45287-14080-06iRA40,TA40..LHD197708-197908

LWR,BROWN,BROWN,TRIM4#

main45287-14090-01iRA40,TA40..RHD..EUG197908-198107

LWR,BLACK,W/TILT STRG,BLACK,TRIM2#

main45287-14090-04iRA40,TA40..RHD..EUG197908-198107

LWR,BLUE,W/TILT STRG,BLUE,TRIM8#

main45287-14090-16iRA40,TA40..RHD..EUG197908-198107

LWR,L-BROWN,W/TILT STRG,BROWN,TRIM4#

main45287-14100-01iRA40,TA40..LHD..(GT,ST,XT)..EUR197908-198107

LWR,BLACK,W/TILT STRG,BLACK,TRIM2#

main45287-14100-04iRA40,TA40..LHD..(GT,ST,XT)..EUR197908-198107

LWR,BLUE,W/TILT STRG,BLUE,TRIM8#

main45287-14100-16iRA40,TA40..LHD..(GT,XT)..GEN197908-198107

LWR,L-BROWN,W/TILT STRG,BROWN,TRIM4#

main45287-14110-01iRA40,TA40..RHD197908-198107

LWR,BLACK,BLACK,TRIM2#

main45287-14110-04iRA40,TA40..RHD197908-198107

LWR,BLUE,BLUE,TRIM8#

main45287-14110-06iRA40,TA40..RHD197908-198107

LWR,L-BROWN,BROWN,TRIM4#

main45287-14120-01iRA40,TA40..LHD197908-198107

LWR,BLACK,BLACK,TRIM2#

main45287-14120-04iRA40,TA40..LHD197908-198107

LWR,BLUE,BLUE,TRIM8#

main45287-14120-06iRA40,TA40..LHD197908-198107

LWR,L-BROWN,BROWN,TRIM4#

45292SEAL, MAIN SHAFT LOWER DUST

main45292-14030iRA40,TA40197708-198107

45897BOLT, STEERING LOCK SET

main45897-12020iRA40,TA40197708-198107

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9016450048

main90164-50048

9017910178

main90179-10178

9020110323

main90201-10323

9112170830

main91121-70830

9161140816

main91611-40816

9165640620

main91656-40620

9331514012

main93315-14012

9331913012

main93319-13012

9331914008

main93319-14008

9411050800

main94110-50800

9451200800

main94512-00800

28 parts on this diagram · 5 diagrams in section
