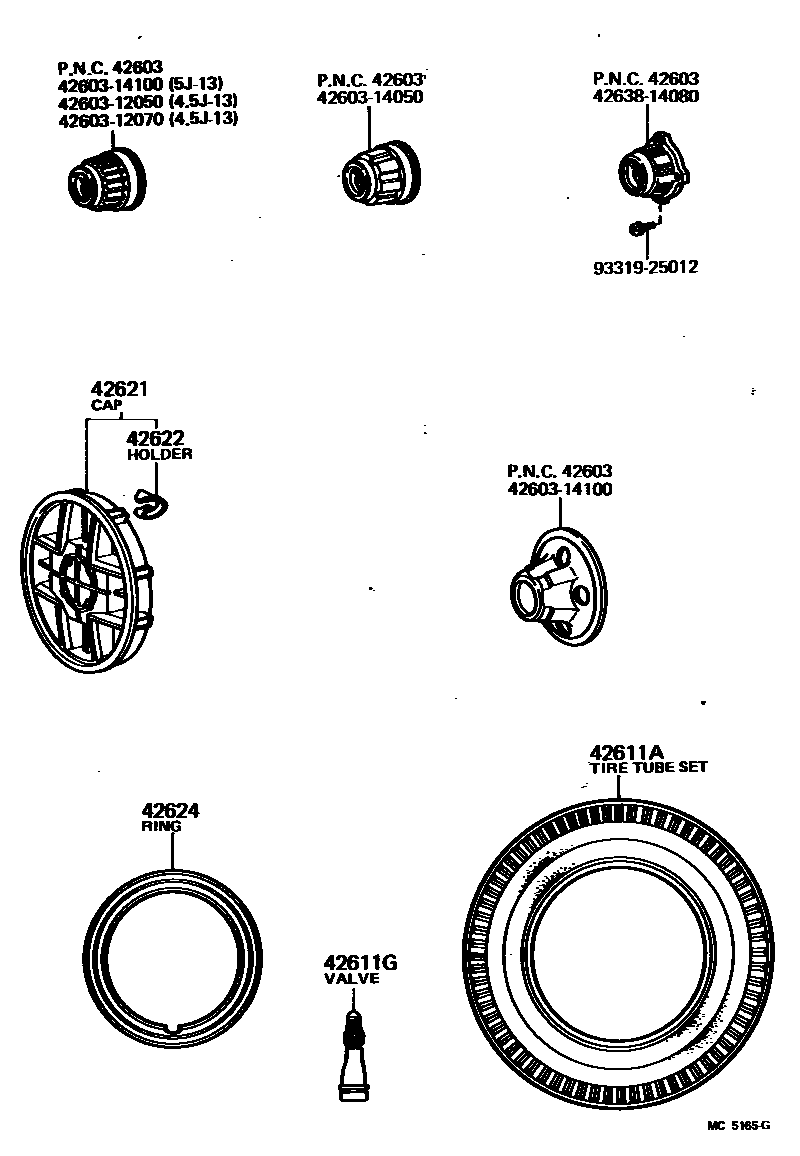

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42611ATIRE TUBE SET OR TUBELESS TIRE

main42605-14090iTA40197708-198107

6.45S13-4,W/T,BLACK

main42605-14140iTA40197708-198107

6.45S13-4,W/T,BLACK

main42605-20030iRA40197908-198008

185/70HR14,W/T,AUSTRALIA SPEC

main42605-20050iRA40197708-197908

165SR14,W/T,AUSTRALIA SPEC

main42605-22110iTA40198008-198107

185/70HR13,W/T

main42652-14060iTA40197708-198107

6.45S13-4,T/L,BLACK

main42652-14110iRA40197708-198107

165SR14,T/L,STEEL RADIAL

main42652-14140iTA40197708-198107

165SR13,T/L,STEEL RADIAL

main42652-14190iRA40,TA40197708-198107

185/70HR14,T/L,STEEL RADIAL

main42652-14290iTA40197903-198107

165SR13,T/L,YOKOHAMA,HOLLAND

main42652-22240iRA40,TA40197708-197908

175SR14,T/L,AUSTRIA SPEC

main42652-22250iRA40,TA40197708-198107

185/70HR14,T/L,BLACK

main42652-22280iRA40198008-198107

185/70SR14,T/L,AUSTRALIA SPEC

main98048-73140iRA40197802-198107

185/70HR14,W/T

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009iRA40,TA40197708-198107

42621CAP, WHEEL

main42602-14030iRA40..EUG197908-198107

42622HOLDER, WHEEL CAP

main42622-14010iRA40..EUG197908-198107

42624RING, WHEEL CAP

main42624-14030iRA40,TA40..GT,XT197708-198107

4260312050ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12050

4260312070ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12070

4260314050ORNAMENT SUB-ASSY, WHEEL HUB

main42603-14050

4260314100ORNAMENT SUB-ASSY, WHEEL HUB

main42603-14100

4263814080

main42638-14080

9331925012

main93319-25012

11 parts on this diagram · 2 diagrams in section
