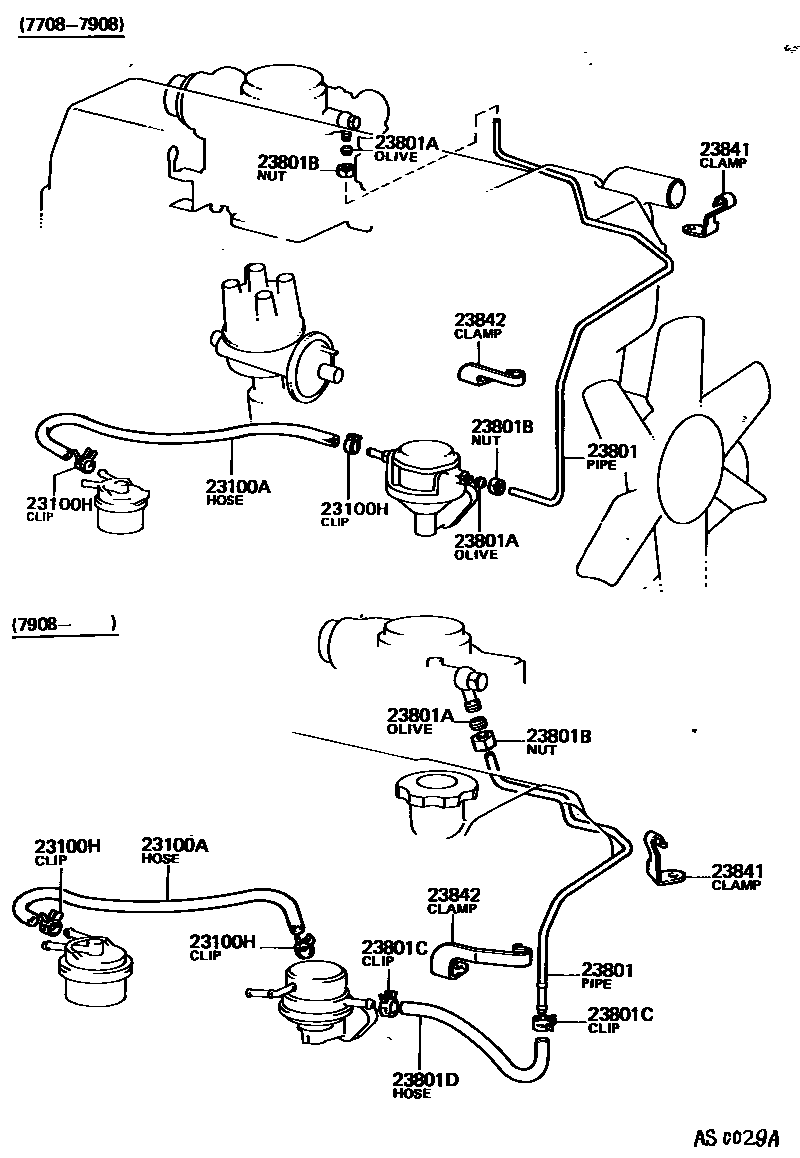

FUEL PIPE & CLAMP
23100AHOSE, FUEL
L=280
L=300
L=280
L=300
*H,L=280
*H,L=300
L=360
*H,L=360
23100HCLIP(FOR FUEL HOSE)
23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
*H,L=260
*H,L=320
*H,L=340
L=300(*H,L=260)
L=300
L=400(*H,L=320)
L=400(*H,L=340)
23801AOLIVE(FOR FUEL PIPE)
23801BNUT, UNION(FOR FUEL PIPE)
23801CCLIP(FOR CARBURETOR FUEL HOSE)
23801DHOSE, FUEL PIPE, NO.1
L=200(*H,L=160)
23841CLAMP, FUEL PIPE(HOSE), NO.1
23842CLAMP, FUEL PIPE(HOSE), NO.2
9 parts on this diagram · 9 diagrams in section
