HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

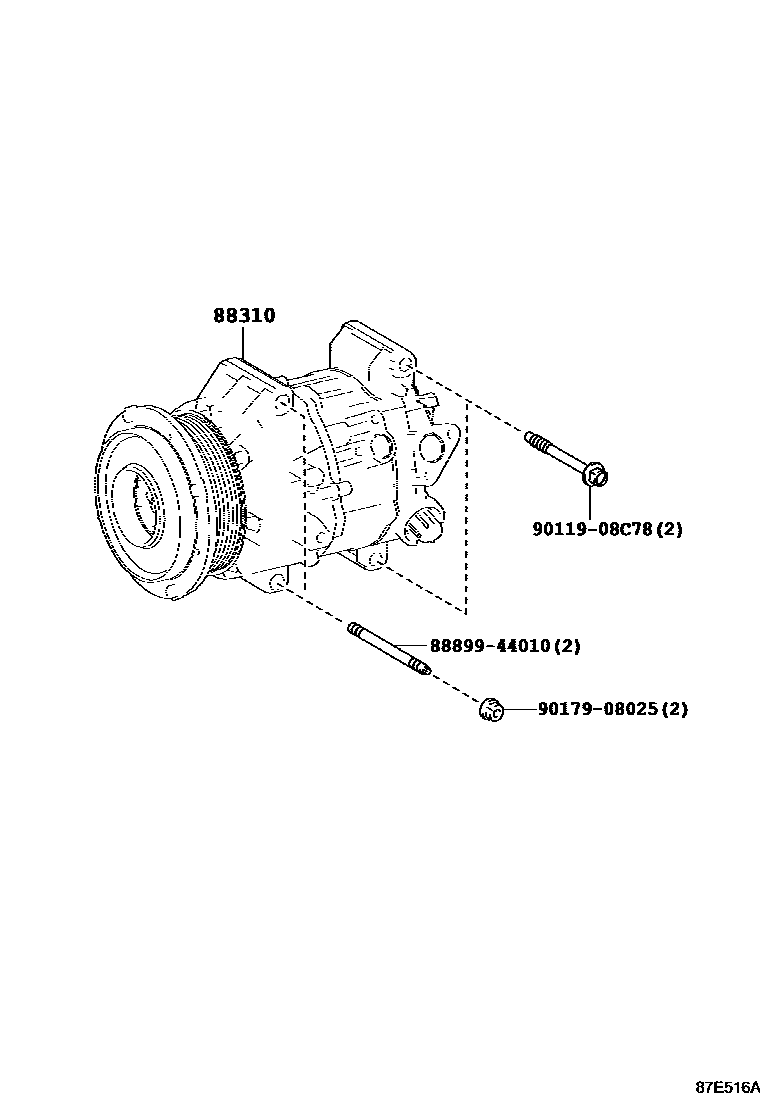

88310COMPRESSOR ASSY, W/PULLEY

main88310-24190iUSC10201409-201511

main88310-24191iUSC10201512-201902

main88310-24210iUSC10201903-202501

main88310-24180iUSC10..LHD201510-201511

AZERBAYCAN SPEC; BOSNIA HERCEGOVINA SPEC; KAZAKHSTAN SPEC

main88310-24181iUSC10..LHD201512-201902

BOSNIA HERCEGOVINA SPEC; KAZAKHSTAN SPEC; RUSSIA SPEC

main88310-24200iUSC10..LHD201903-202009

KAZAKHSTAN SPEC; RUSSIA SPEC

8889944010COVER, EVAPORATOR

main88899-44010

9011908C78

main90119-08C78

9017908025

main90179-08025

4 parts on this diagram · 2 diagrams in section
