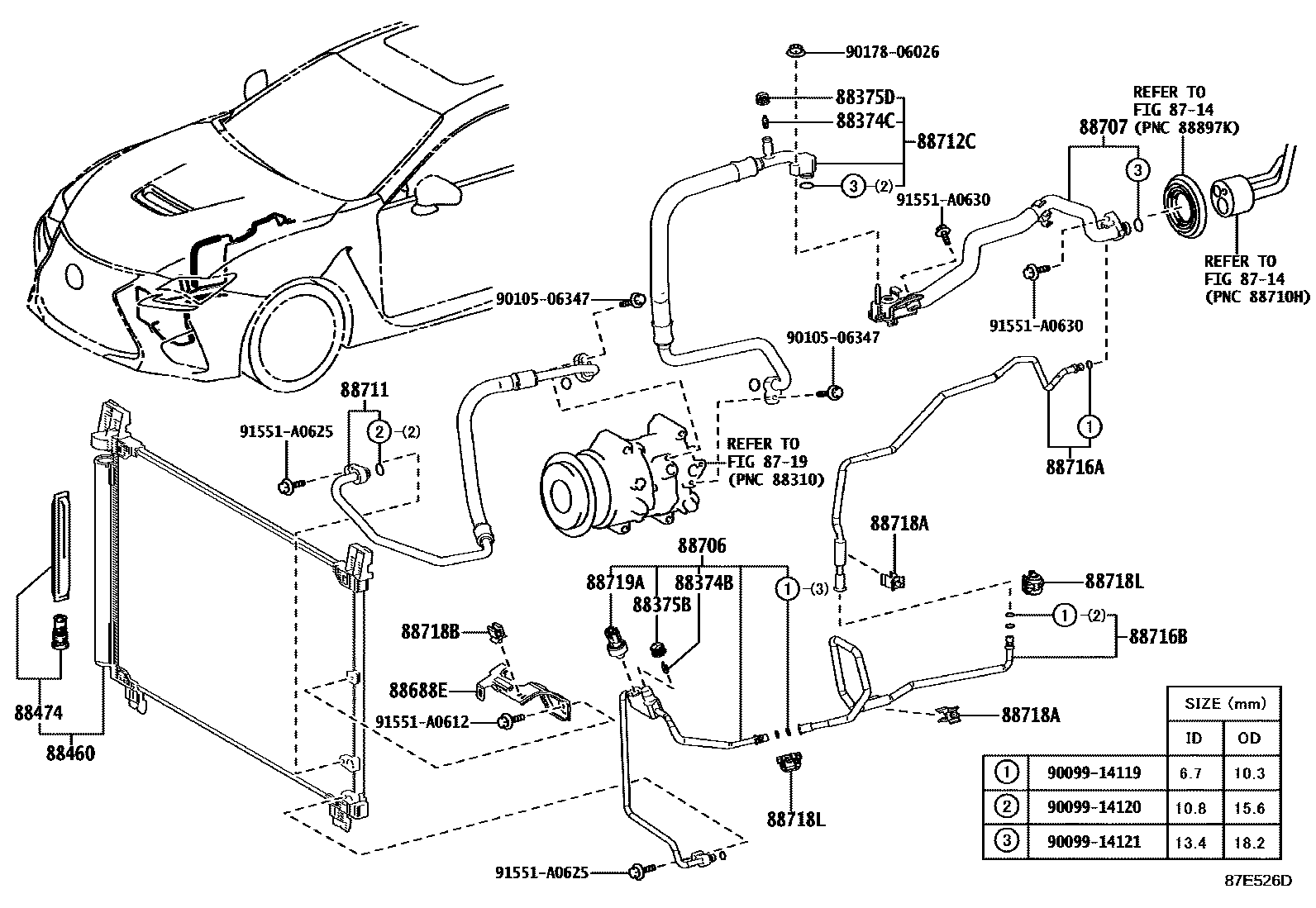

HEATING & AIR CONDITIONING - COOLER PIPING

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88374BVALVE, SERVICE, NO.1

main88374-30010iUSC10201409-202501

88374CVALVE, SERVICE, NO.2

main88374-30010iUSC10201409-202501

88375BCAP, SERVICE VALVE, NO.1

main88375-30320iUSC10201409-202501

88375DCAP, SERVICE VALVE, NO.2

main88375-30310iUSC10201409-202501

88460CONDENSER ASSY, COOLER

main88460-24130iUSC10201409-202501

88474DRYER, COOLER

main88474-12010iUSC10201409-202501

88688EBRACKET, COOLER REFRIGERANT HOSE, NO.1

main88688-3F020iUSC10201409-202501

88706PIPE SUB-ASSY, LIQUID

main88706-24170iUSC10201409-202501

88707PIPE SUB-ASSY, SUCTION

main88707-24040iUSC10201409-202501

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-24190iUSC10201409-201902

main88711-24200iUSC10201903-202404

main88711-24201iUSC10202405-202501

88712CHOSE, SUCTION

main88712-24230iUSC10201409-201902

main88712-24250iUSC10201903-202403

main88712-24251iUSC10202404-202501

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-24330iUSC10201409-202501

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-24340iUSC10201409-202501

88718ACLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)

main88718-1A430iUSC10201409-202501

88718BCLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)

main88718-32220iUSC10201409-202501

88718LCLAMP, PIPING

main88718-2D150iUSC10201409-202501

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iUSC10201409-202501

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9010506347

main90105-06347

9017806026

main90178-06026

91551A0612

main91551-A0612

91551A0625

main91551-A0625

91551A0630

main91551-A0630

27 parts on this diagram · 1 diagram in section
