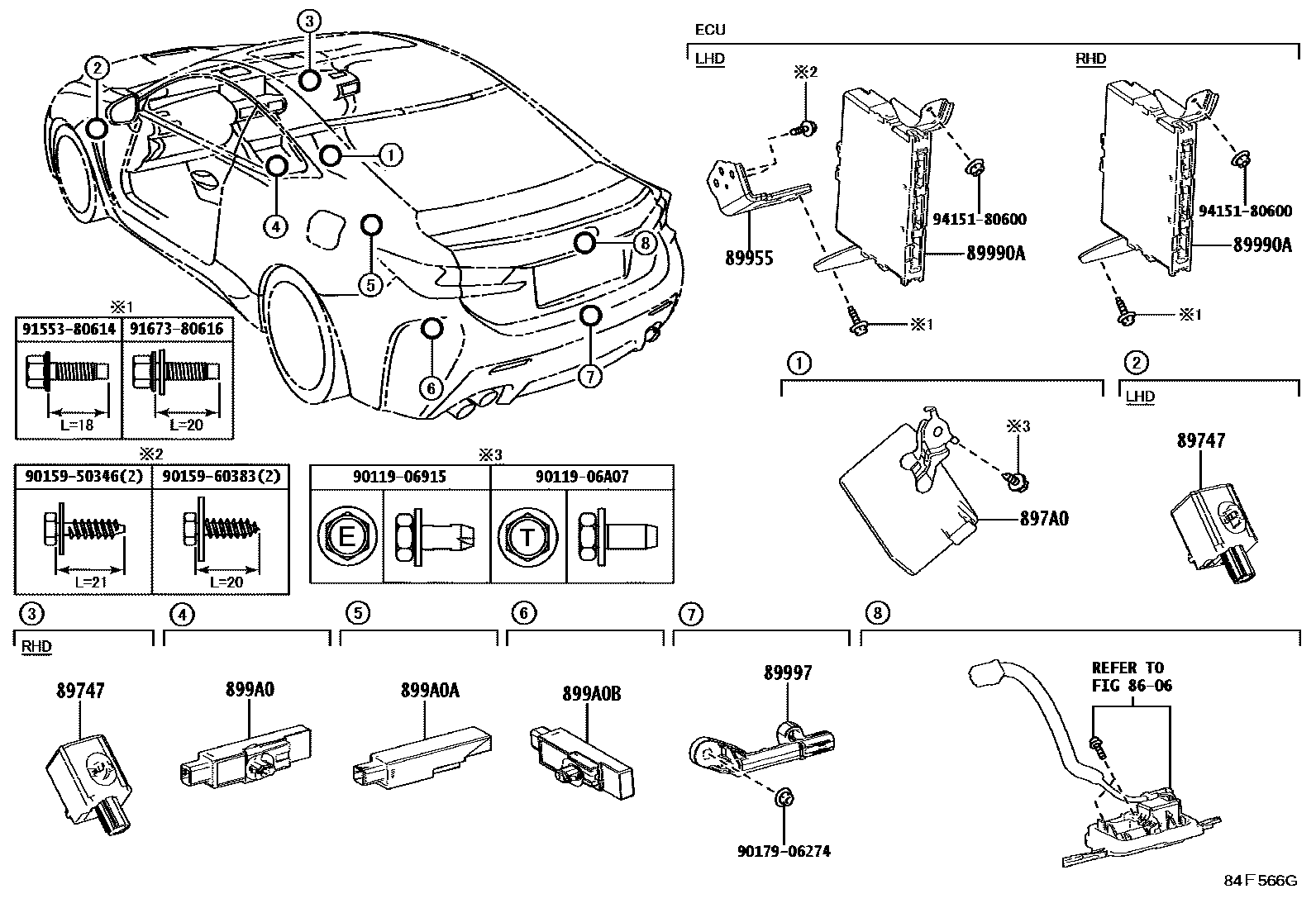

WIRELESS DOOR LOCK

8606CAMERA & REAR MONITOR DISPLAY

→ Go to FIG 86-06

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iUSC10201409-202403

897A0RECEIVER ASSY,DOOR CONTROL & TIRE PRESSURE MONITORING SYSTEM

main897B0-24130iUSC10201409-201509

main897B0-24210iUSC10201510-202301

main897B0-24320iUSC10202301-202310

main897B0-24450iUSC10202310-202403

89955BRACKET, SMART KEY COMPUTER

main89955-53010iUSC10..LHD201409-202403

89990ACOMPUTER ASSY, SMART KEY

main89990-24010iUSC10..RHD201409-201510

main89990-24030iUSC10..LHD201409-201510

main89990-24060iUSC10..RHD201510-201809

main89990-24061iUSC10..RHD201810-202009

main89990-24110iUSC10..LHD201510-201710

main89990-24111iUSC10..LHD201711-202009

main89990-24191iUSC10..RHD202301-202403

main89990-24201iUSC10..LHD202301-202310

main89990-24202iUSC10..LHD202311-202403

main89990-24220iUSC10..RHD202009-202210

main89990-24221iUSC10..RHD202210-202301

main89990-24230iUSC10..LHD202009-202301

89997ANTENNA, ELECTRICAL KEY

main89997-30100iUSC10201409-202403

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-60010iUSC10201409-202403

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A1-60010iUSC10201409-202403

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-47010iUSC10201409-202403

9011906915

main90119-06915

9011906A07

main90119-06A07

9015950346

main90159-50346

9015960383

main90159-60383

9017906274

main90179-06274

9155380614

main91553-80614

9167380616

main91673-80616

9415180600

main94151-80600

17 parts on this diagram · 1 diagram in section
