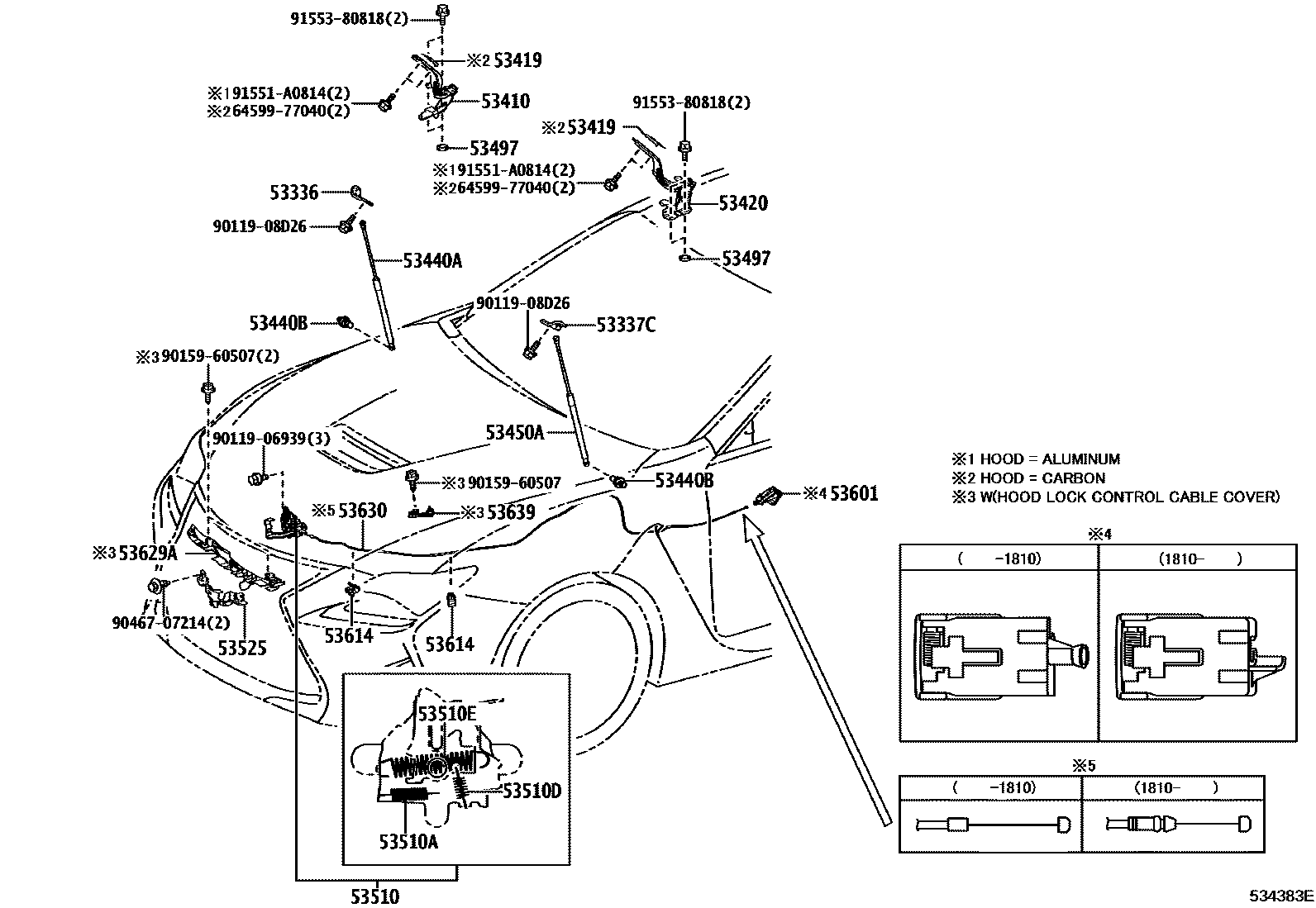

HOOD LOCK & HINGE
53336BRACKET, HOOD STAY, RH
53337CBRACKET, HOOD STAY, LH
53410HINGE ASSY, HOOD, RH
53419SHIM, HOOD HINGE
BODY SHELL ASSY-CARBON ROOF & CARBON HOOD(LIGHT GRADE),RH,T=1.6; BODY SHELL ASSY-CARBON ROOF & CARBON HOOD,RH,T=1.6
BODY SHELL ASSY-CARBON ROOF & CARBON HOOD(LIGHT GRADE),LH,T=1.6; BODY SHELL ASSY-CARBON ROOF & CARBON HOOD,LH,T=1.6
BODY SHELL ASSY-CARBON ROOF & CARBON HOOD(LIGHT GRADE),T=0.6; BODY SHELL ASSY-CARBON ROOF & CARBON HOOD,T=0.6
BODY SHELL ASSY-CARBON ROOF & CARBON HOOD(LIGHT GRADE),T=2.6; BODY SHELL ASSY-CARBON ROOF & CARBON HOOD,T=2.6
53420HINGE ASSY, HOOD, LH
53440ASUPPORT ASSY, HOOD, RH
WITH(CARBON HOOD & CARBON ROOF)
53440BBOLT, HOOD SUPPORT, NO.1
53450ASUPPORT ASSY, HOOD, LH
"PERFORMANCE PACKAGE"*(H)&BODY SHELL ASSY-CARBON ROOF & COLOR HOOD
53497PAD, HOOD HINGE, NO.1
T=2.0
T=0.5
T=1.0
53510LOCK ASSY, HOOD
53510ASPRING, TENSION(FOR HOOD LOCK)
WD=0.9,CW=21
53510DSPRING, TENSION(FOR HOOD LOCK)
WD=1.2,CW=8.5
53510ESPRING, TENSION(FOR HOOD LOCK)
WD=1.4,CW=12
53525PROTECTOR, HOOD LOCK RELEASE LEVER
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
BLACK,TRIM0#,1#,2#,3#,4#
BLACK,TRIM0#,1#,2#,3#,8#
BLACK,TRIM0#,1#,2#,3#,8#
53614CLAMP, HOOD LOCK CONTROL CABLE
53629ACOVER, HOOD LOCK CONTROL CABLE
ENGLAND SPEC; ESTONIA OR LATVIA OR LITHUANIA SPEC; FINLAND OR NORWAY OR SWEDEN SPEC; IRELAND SPEC; RUSSIA SPEC
53630CABLE ASSY, HOOD LOCK CONTROL
53639COVER, HOOD LOCK CONTROL CABLE, NO.2
ESTONIA OR LATVIA OR LITHUANIA SPEC; FINLAND OR NORWAY OR SWEDEN SPEC; RUSSIA SPEC
ENGLAND SPEC; IRELAND SPEC
6459977040BOLT, LUGGAGE DOOR HINGE
main64599-77040
9011906939
main90119-06939
9011908D26
main90119-08D26
9015960507
main90159-60507
9046707214
main90467-07214
91551A0814
main91551-A0814
9155380818
main91553-80818
26 parts on this diagram · 2 diagrams in section
