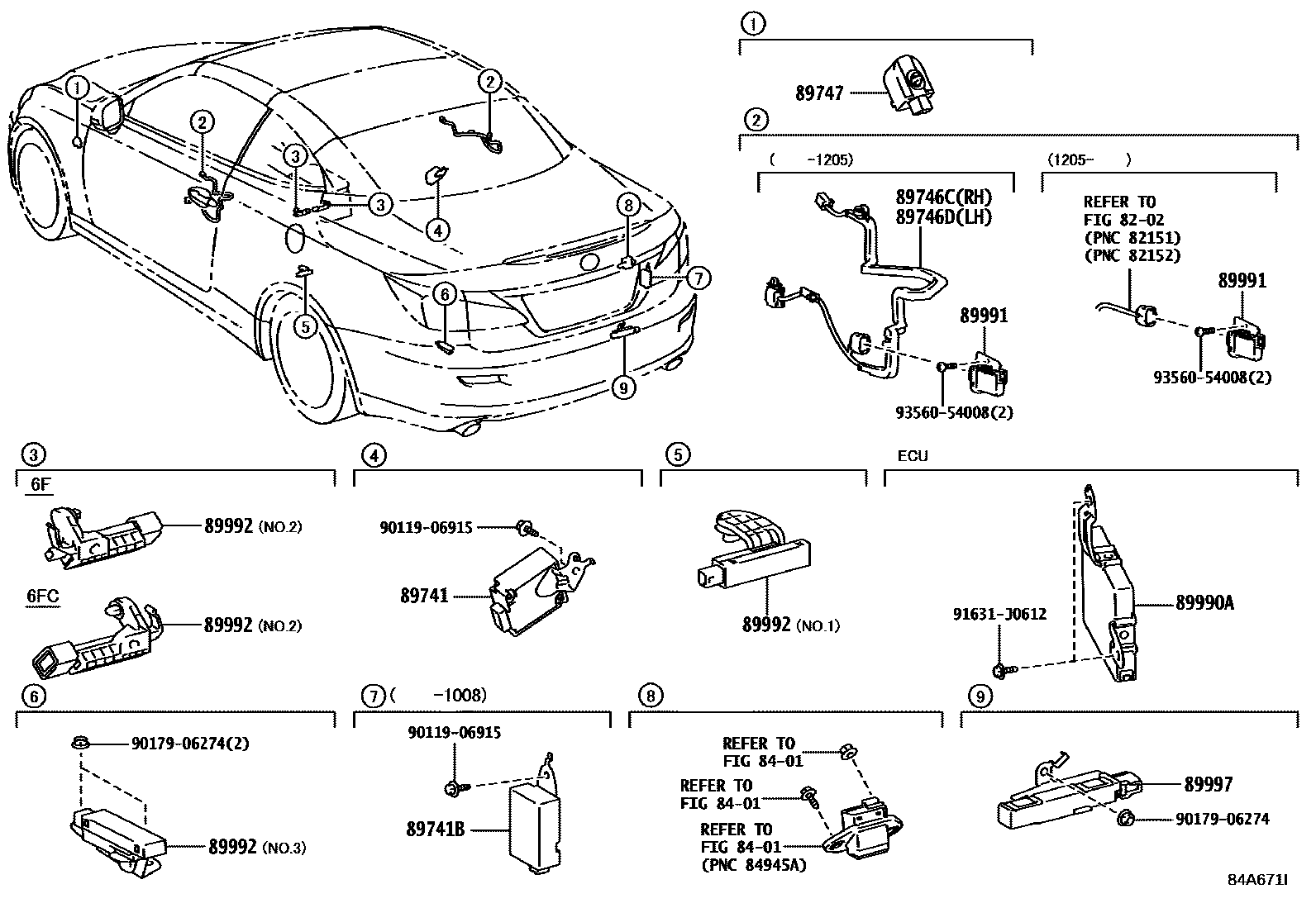

WIRELESS DOOR LOCK

0001 1 0002 1

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89741RECEIVER, DOOR CONTROL

main89740-53171iGSE20200904-201004

main89740-53172iGSE20201005

89741BRECEIVER, DOOR CONTROL, NO.2

main89740-53180iGSE20200904-201008

89746CHARNESS, ELECTRICAL KEY WIRE, NO.1

main89746-53030iGSE20200904-201205

89746DHARNESS, ELECTRICAL KEY WIRE, NO.2

main89746-53040iGSE20200904-201205

89747BUZZER, WIRELESS DOOR LOCK

main89747-52010iGSE20200904

89990ACOMPUTER ASSY, SMART KEY

main89990-53051iGSE20200904-201004

main89990-53150iGSE20201005-201105

main89990-53151iGSE20201106-201208

main89990-53152iGSE20201209-201308

main89990-53153iGSE20201309-201410

main89990-53154iGSE20201410-201507

89991OSCILLATOR, DOOR ELECTRICAL KEY

main89991-30040iGSE20200904-201507

RH

main89991-30050iGSE20200904-201507

LH

89992OSCILLATOR, INDOOR ELECTRICAL KEY

main89992-53020iGSE20200904

NO.1

main89992-53030iGSE20..RHD..6F;GSE20..LHD..6FC200904

NO.2

main89992-53040iGSE20..LHD..6F;GSE20..RHD..6FC200904-201411

NO.2

main89992-53050iGSE20200904

NO.3

89997ANTENNA, ELECTRICAL KEY

main89997-53020iGSE20200904

9011906915

main90119-06915

9017906274

main90179-06274

91631J0612

main91631-J0612

9356054008

main93560-54008

15 parts on this diagram · 2 diagrams in section
