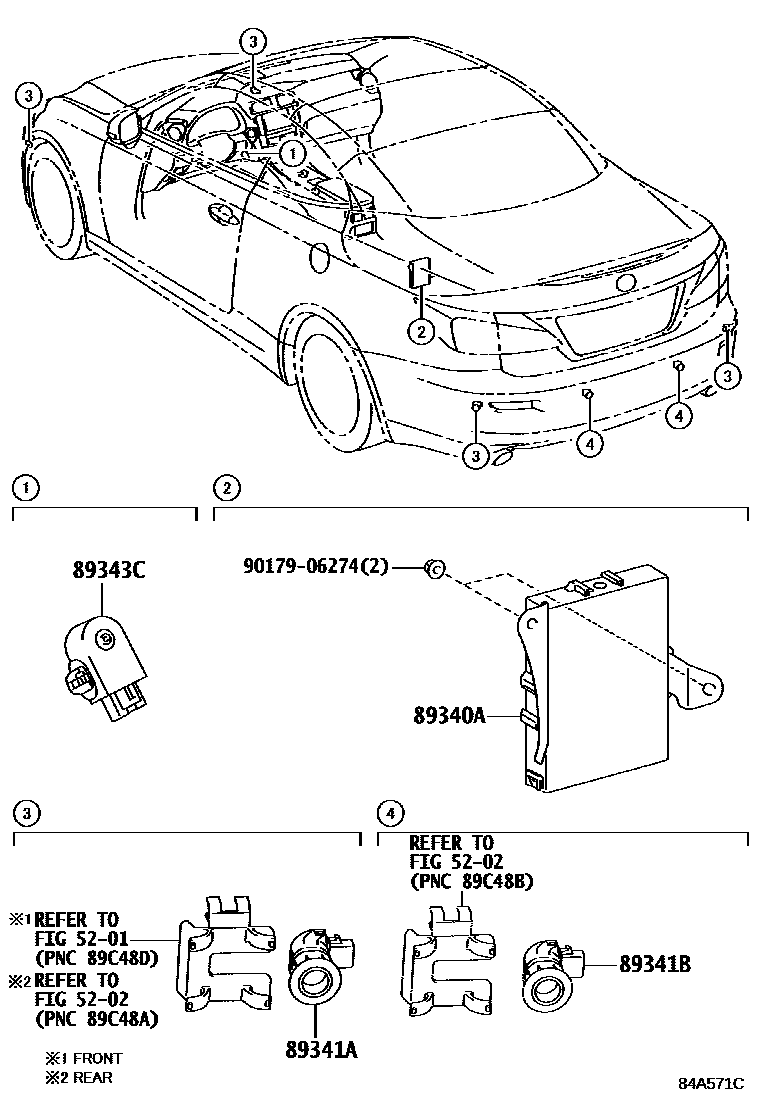

CLEARANCE & BACK SONAR
5201FRONT BUMPER & BUMPER STAY
5202REAR BUMPER & BUMPER STAY
89340ACOMPUTER ASSY, CLEARANCE WARNING
89341ASENSOR, ULTRASONIC, NO.1
WHITE PEARL CS.,077
DK.GRAY MC.,1G0
SILVER M.M.,1G1
BLACK,212
RED MC.CS.,3R1
DK.BLUE MC. CC.,8U0
BLUE ME. CC.,8U1
CATTLEYA M.M.,9AL
SILVERY BLUE ME.,8U9
WHITE PEARL CS.,077
WHITE NOVA GF.,083
SILVER M.M.,1G1
MERCURY GRAY MC.,1H9
DK.GRAY MC.,1G0
BLACK,212
STARLIGHT BLACK GF.,217
RED MC.CS.,3R1
BLUE ME.,8U1
SILVERY BLUE ME.,8U9
LAPIS LAZULI MC.,8V3
CATTLEYA M.M.,9AL
PLATINUM SILVER ME.,1J4
89341BSENSOR, ULTRASONIC, NO.2
WHITE PEARL CS.,077
DK.GRAY MC.,1G0
SILVER M.M.,1G1
BLACK,212
RED MC.CS.,3R1
DK.BLUE MC. CC.,8U0
BLUE ME.,8U1
SILVERY BLUE ME.,8U9
CATTLEYA M.M.,9AL
WHITE PEARL CS.,077
WHITE NOVA GF.,083
SILVER M.M.,1G1
MERCURY GRAY MC.,1H9
DK.GRAY MC.,1G0
BLACK,212
STARLIGHT BLACK GF.,217
RED MC.CS.,3R1
BLUE ME.,8U1
SILVERY BLUE ME.,8U9
LAPIS LAZULI MC.,8V3
CATTLEYA M.M.,9AL
PLATINUM SILVER ME.,1J4
89343CBUZZER, CLEARANCE WARNING, NO.1
9017906274
main90179-06274
7 parts on this diagram · 4 diagrams in section
