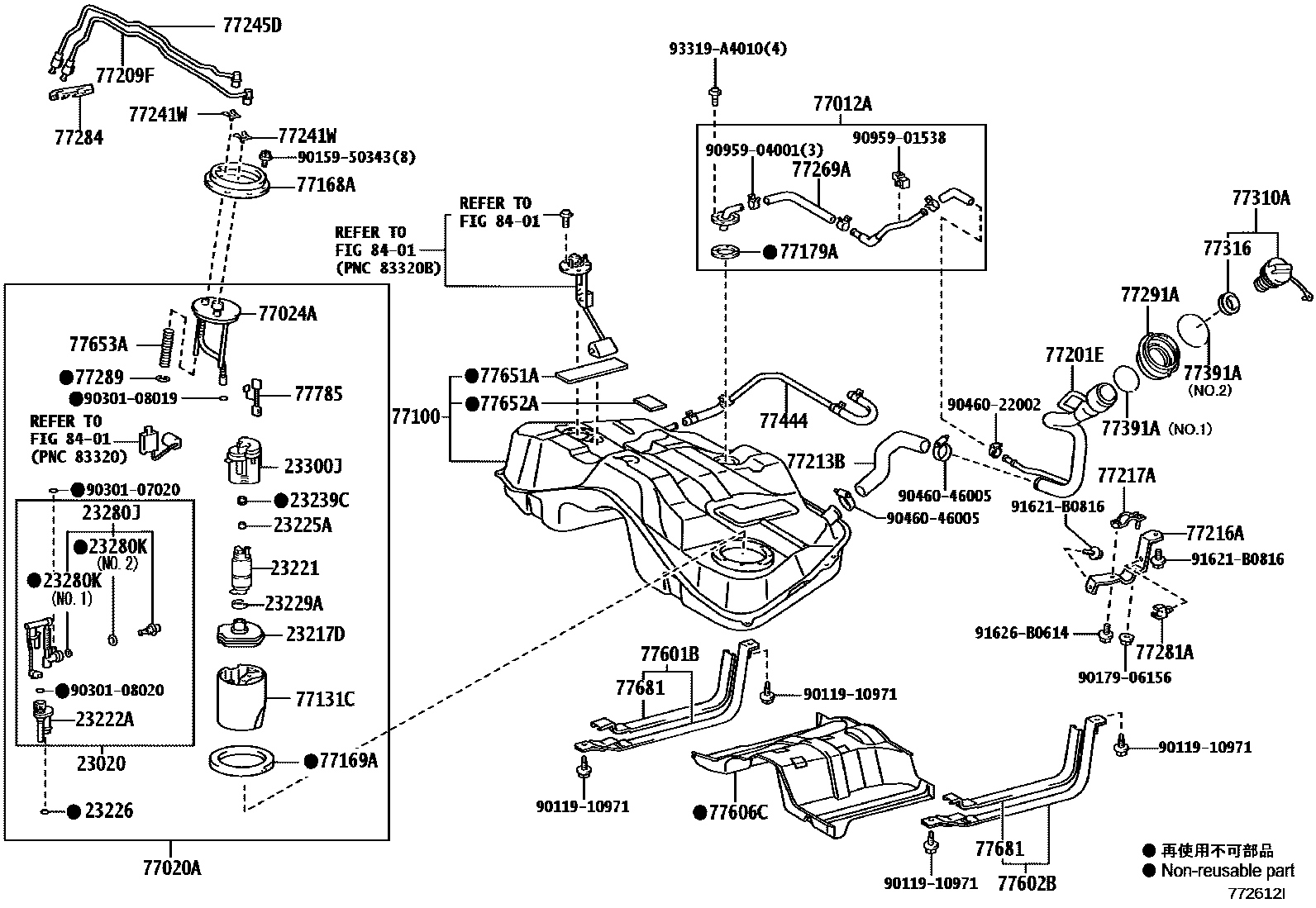

FUEL TANK & TUBE
23020REGULATOR ASSY, FUEL PRESSURE W/JET PUMP
23217DFILTER, FUEL PUMP
23222ATUBE, FUEL RETURN JET
23225ASPACER, FUEL PUMP
23226RING, O(FOR FUEL PUMP)
23229ACLIP(FOR FUEL PUMP FILTER)
23239CSEAL, FUEL PUMP FILTER
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
NO.1
NO.2
23300JFILTER ASSY, FUEL
77012ATUBE SUB-ASSY, FUEL TANK BREATHER, NO.1
77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77024APLATE SUB-ASSY, FUEL SUCTION
77100TANK ASSY, FUEL
77131CSUB-TANK, FUEL, NO.1
77168APLATE, FUEL TANK VENT TUBE SET
77169AGASKET, FUEL SUCTION TUBE SET
77179AGASKET, FUEL TANK BREATHER TUBE
77201EPIPE SUB-ASSY, FUEL TANK FILLER
77209FTUBE SUB-ASSY, FUEL TANK MAIN
77213BHOSE, FUEL TANK TO FILLER PIPE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77245DTUBE, FUEL TANK RETURN VENT
77269AHOSE, FUEL TANK BREATHER
77281ACLAMP, FUEL FILLER PIPE
77284CLAMP, FUEL TUBE
77289HOLDER, FUEL TANK PIPE SETTING
77291ASHIELD, FUEL TANK FILLER PIPE
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77444HOSE, FUEL TANK VENT
77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77606CPROTECTOR, FUEL TANK, NO.2
77651ACUSHION, FUEL TANK, NO.1
77652ACUSHION, FUEL TANK, NO.2
77653ACUSHION, FUEL TANK, NO.3
77681SEAT, FUEL TANK BAND, RH
77785HARNESS, FUEL PUMP
8401SWITCH & RELAY & COMPUTER
9011910971
main90119-10971
9015950343
main90159-50343
9017906156
main90179-06156
9030107020
main90301-07020
9030108019
main90301-08019
9030108020
main90301-08020
9046022002
main90460-22002
9046046005
main90460-46005
9095901538
main90959-01538
9095904001
main90959-04001
91621B0816
main91621-B0816
91626B0614
main91626-B0614
93319A4010
main93319-A4010
57 parts on this diagram · 3 diagrams in section
