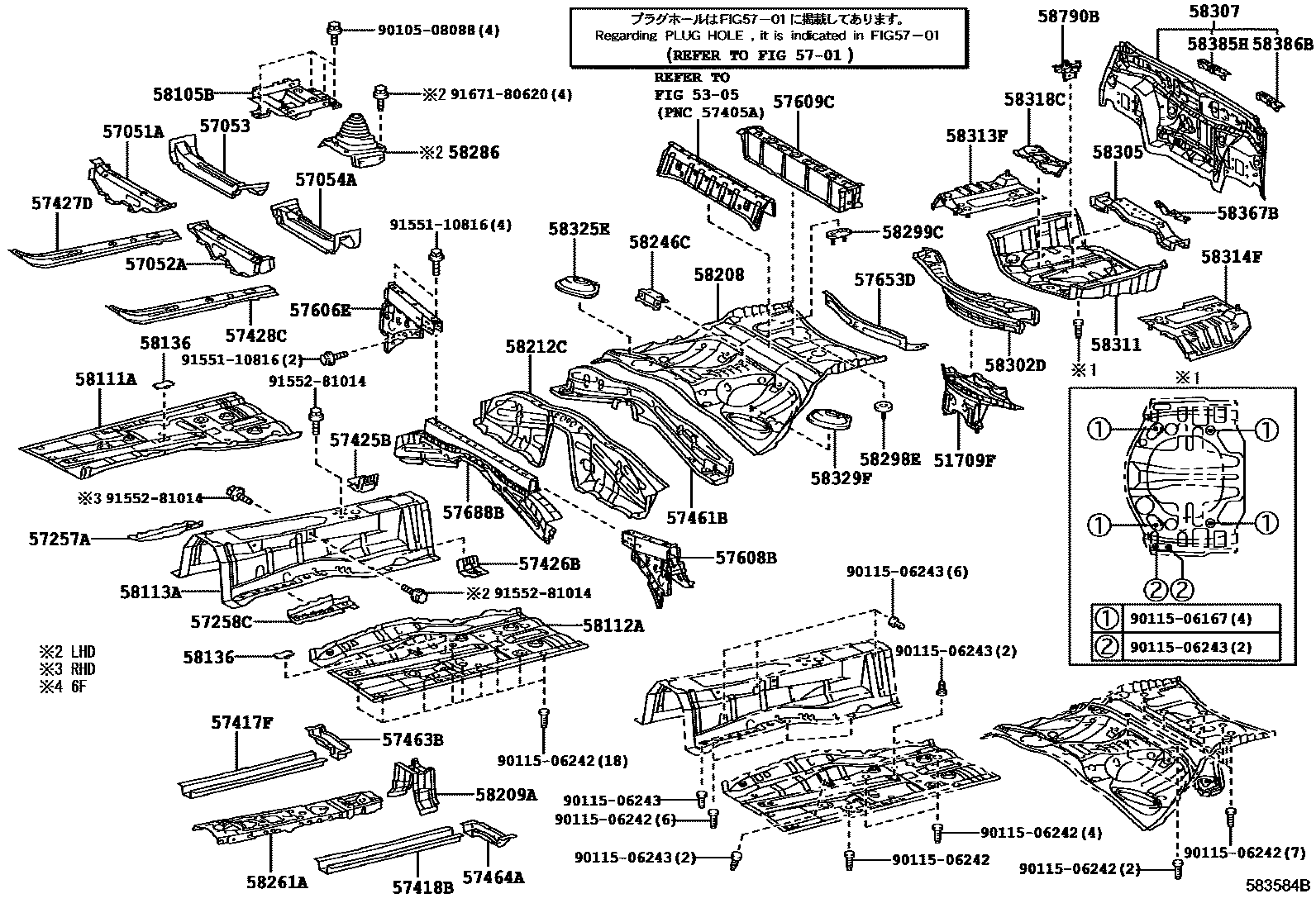

FLOOR PAN & LOWER BACK PANEL

0001 1FLOOR PAN & LOWER BACK PANEL 0002 1FLOOR UNDER COVER

51709FBRACKET SUB-ASSY, TORSION BAR

main51709-53010iGSE20200904

5305

5701

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-53030iGSE20200904

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-53030iGSE20200904

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-30071iGSE20200904

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-30071iGSE20200904

57257ABRACKET, ENGINE REAR MOUNTING MEMBER, RH

main57257-30041iGSE20200904-201406

main57257-30042iGSE20201406

57258CBRACKET, ENGINE REAR MOUNTING MEMBER, LH

main57258-30091iGSE20200904

57417FREINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-24040iGSE20201311

main57417-53020iGSE20200904-201311

57418BREINFORCEMENT, FRONT FLOOR UNDER, LH

main57417-24040iGSE20201311

main57417-53020iGSE20200904-201311

57425BREINFORCEMENT, FRONT FLOOR, NO.2 RH

main57425-30020iGSE20200904

57426BREINFORCEMENT, FRONT FLOOR, NO.2 LH

main57426-30020iGSE20200904

57427DREINFORCEMENT, FRONT FLOOR, NO.3 RH

main57427-30030iGSE20200904

57428CREINFORCEMENT, FRONT FLOOR, NO.3 LH

main57427-30030iGSE20200904

57461BMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1

main57407-30151iGSE20200904-201507

57463BREINFORCEMENT, CENTER FLOOR CROSSMEMBER, RH

main57508-30020iGSE20200904

57464AREINFORCEMENT, CENTER FLOOR CROSSMEMBER, LH

main57509-30020iGSE20200904

57606EMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57603-53010iGSE20200904

57608BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4

main57604-53010iGSE20200904

57609CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5

main57609-53030iGSE20200904

57653DMEMBER, REAR FLOOR CROSS, NO.2

main57606-30061iGSE20200904-201507

57688BREINFORCEMENT, REAR FLOOR CROSSMEMBER

main57503-53010iGSE20200904

58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB

main58105-53010iGSE20200904

58111APAN, FRONT FLOOR, RH

main58111-24050iGSE20201310-201406

sub87212-30431

main58111-24060iGSE20201406

main58111-53040iGSE20200904-201310

58112APANEL, FRONT FLOOR, LH

main58112-24040iGSE20201310

main58112-53031iGSE20200904-201310

58113APANEL, FRONT FLOOR, CENTER

main58113-53030iGSE20200904

58136COVER, FRONT FLOOR HOLE

main58136-51010×2iGSE20200904

58208PAN, CENTER FLOOR

main58211-30350iGSE20200904

58209AREINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT

main58209-30050iGSE20200904

58212CPAN, CENTER FLOOR, FRONT

main58202-30091iGSE20200904

58246CBRACKET, REAR SEAT HINGE, CENTER NO.2

main58246-22020iGSE20200904

58261ACOVER, TRANSMISSION

main58261-30231iGSE20..6FC200904

main58261-53061iGSE20..6F200904-201008

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58280-53030iGSE20..6F200904-201008

58298EBRACKET, HOT AIR INTAKE, NO.1

main58298-30030iGSE20200904

58299CBRACKET, HOT AIR INTAKE, NO.2

main58299-30010iGSE20200904

58302DPANEL SUB-ASSY, REAR FLOOR, FRONT

main58302-53010iGSE20200904

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58305-30220iGSE20200904

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-53070iGSE20200904

58311PAN, REAR FLOOR

main58311-53030iGSE20200904

58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH

main58313-53030iGSE20200904-201507

58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH

main58314-53030iGSE20200904-201507

58318CBRACKET, REAR FLOOR CROSSMEMBER

main58318-53010iGSE20200904

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-30020iGSE20200904

58329FCOVER, REAR FLOOR SERVICE HOLE, NO.2

main58329-30030iGSE20200904

58367BBRACKET, FUEL TUBE

main58367-30120iGSE20200904

58385HBRACKET, REAR BUMPER COVER, NO.1

main58385-53040iGSE20200904

58386BBRACKET, REAR BUMPER COVER, NO.2

main58386-53020iGSE20200904

58790BCARRIER ASSY, JACK

main58790-30010iGSE20200904

9010508088

main90105-08088

9011506167

main90115-06167

9011506242

main90115-06242

9011506243

main90115-06243

9155110816

main91551-10816

9155281014

main91552-81014

9167180620

main91671-80620

56 parts on this diagram · 2 diagrams in section
