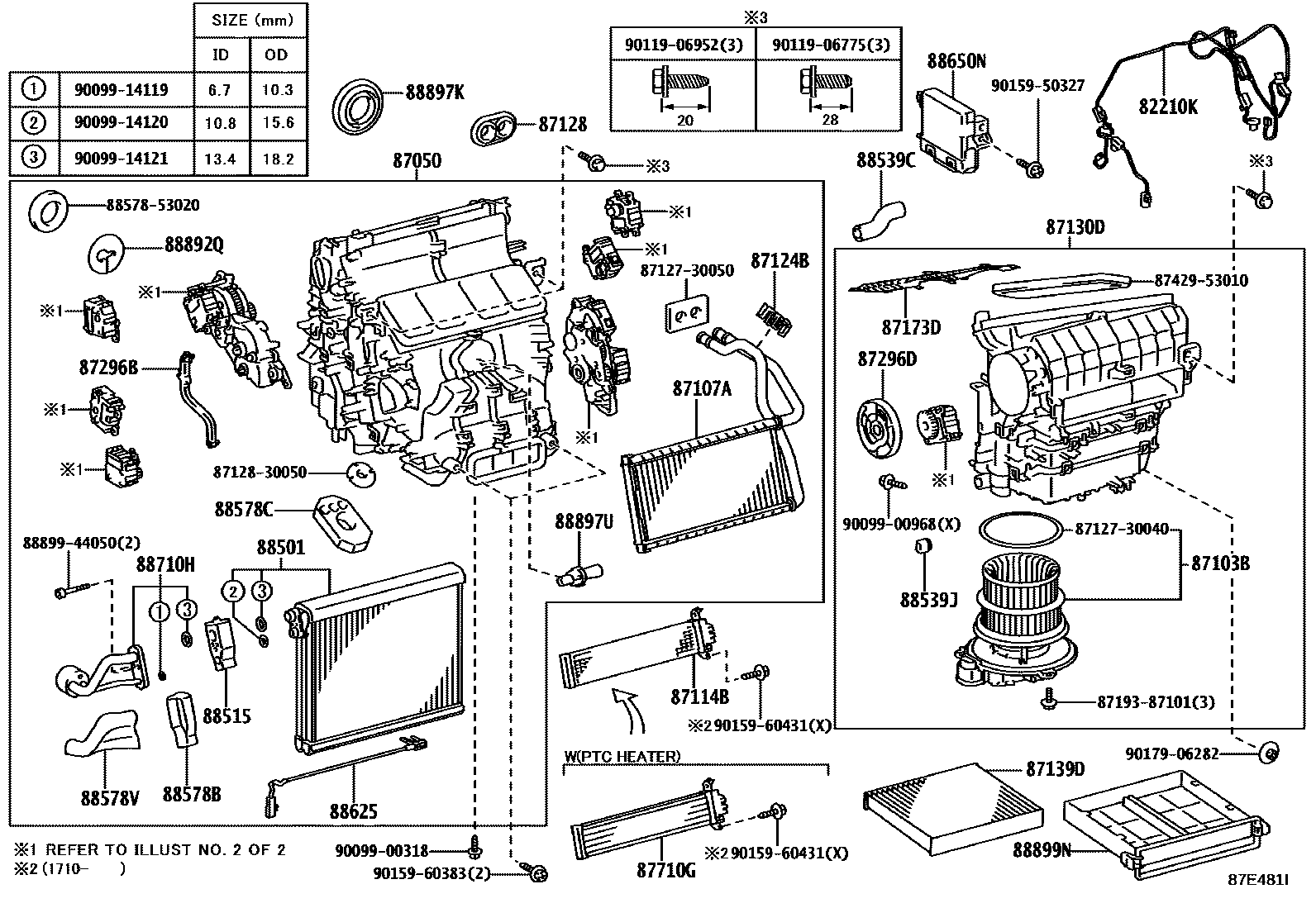

HEATING & AIR CONDITIONING - COOLER UNIT
82210KHARNESS ASSY, AIR CONDITIONER
87050RADIATOR ASSY, AIR CONDITIONER
W.V.T.A. CORRESPONDENCE-WITHOUT&WITHOUT(STOP & START SYSTEM)
WITHOUT(STOP & START SYSTEM)
WITHOUT(STOP & START SYSTEM)
87103BMOTOR SUB-ASSY, BLOWER W/FAN
87107AUNIT SUB-ASSY, HEATER RADIATOR
87114BCOVER, HEATER
87124BCLAMP, HEATER
87130DBLOWER ASSY
87139DELEMENT, AIR REFINER
87173DPROTECTOR HEATER
87296BLEVER, HEATER AIR DAMPER CONTROL
87296DLEVER, HEATER AIR DAMPER CONTROL, NO.2
87710GQUICK HEATER ASSY
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
WITHOUT(STOP & START SYSTEM)
88515VALVE, COOLER EXPANSION
88539CHOSE, COOLER UNIT DRAIN, NO.2
88539JHOSE, DRAIN COOLER
88578BPACKING, COOLING UNIT, NO.1
88578CPACKING, COOLING UNIT, NO.2
88578VPACKING, COOLING UNIT, NO.3
88625THERMISTOR, COOLER, NO.1
88650NAMPLIFIER ASSY, AIR CONDITIONER
AZERBAIJAN,ARMENIA,GEORGIA SPEC&W.V.T.A. CORRESPONDENCE-WITHOUT&WITHOUT(STOP & START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS); RUSSIA SPEC&W.V.T.A. CORRESPONDENCE-WITHOUT&WITHOUT(STOP & START SYSTEM); W.V.T.A. CORRESPONDENCE-WITHOUT&BOSNIA HERCEGOVINA SPEC&WITHOUT(STOP & START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); W.V.T.A. CORRESPONDENCE-WITHOUT&KAZAKHSTAN SPEC&WITHOUT(STOP & START SYSTEM); W.V.T.A. CORRESPONDENCE-WITHOUT&SERBIA SPEC&WITHOUT(STOP & START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); W.V.T.A. CORRESPONDENCE-WITHOUT&UKRAINE SPEC&WITHOUT(STOP & START SYSTEM)&EXHAUSTEMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
AZERBAIJAN,ARMENIA,GEORGIA SPEC&W.V.T.A. CORRESPONDENCE-WITHOUT&WITHOUT(STOP & START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS); RUSSIA SPEC&W.V.T.A. CORRESPONDENCE-WITHOUT&WITHOUT(STOP & START SYSTEM); W.V.T.A. CORRESPONDENCE-WITHOUT&BOSNIA HERCEGOVINA SPEC&WITHOUT(STOP & START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); W.V.T.A. CORRESPONDENCE-WITHOUT&KAZAKHSTAN SPEC&WITHOUT(STOP & START SYSTEM); W.V.T.A. CORRESPONDENCE-WITHOUT&SERBIA SPEC&WITHOUT(STOP & START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); W.V.T.A. CORRESPONDENCE-WITHOUT&UKRAINE SPEC&WITHOUT(STOP & START SYSTEM)
88710HTUBE & ACCESSORY ASSY, AIR CONDITIONER
88892QPLATE, COOLER
88897KGROMMET, (FOR COOLER PIPE)
88897UPIPE, ASPIRATOR
88899NPLATE, COVER
8712730040PACKING, HEATER AIR DAMPER
main87127-30040
8712730050PACKING, HEATER AIR DAMPER
main87127-30050
8712830050GROMMET, HEATER
main87128-30050
8719387101
main87193-87101
8742953010PIPE, COMBUSTION HEATER OUTLET
main87429-53010
8857853020PAKING, COOLER AIR DUCT
main88578-53020
8889944050COVER, EVAPORATOR
main88899-44050
9009900318
main90099-00318
9009900968
main90099-00968
9009914119
main90099-14119
9009914120
main90099-14120
9009914121
main90099-14121
9011906775
main90119-06775
9011906952
main90119-06952
9015950327
main90159-50327
9015960383
main90159-60383
9015960431
main90159-60431
9017906282
main90179-06282
45 parts on this diagram · 4 diagrams in section
