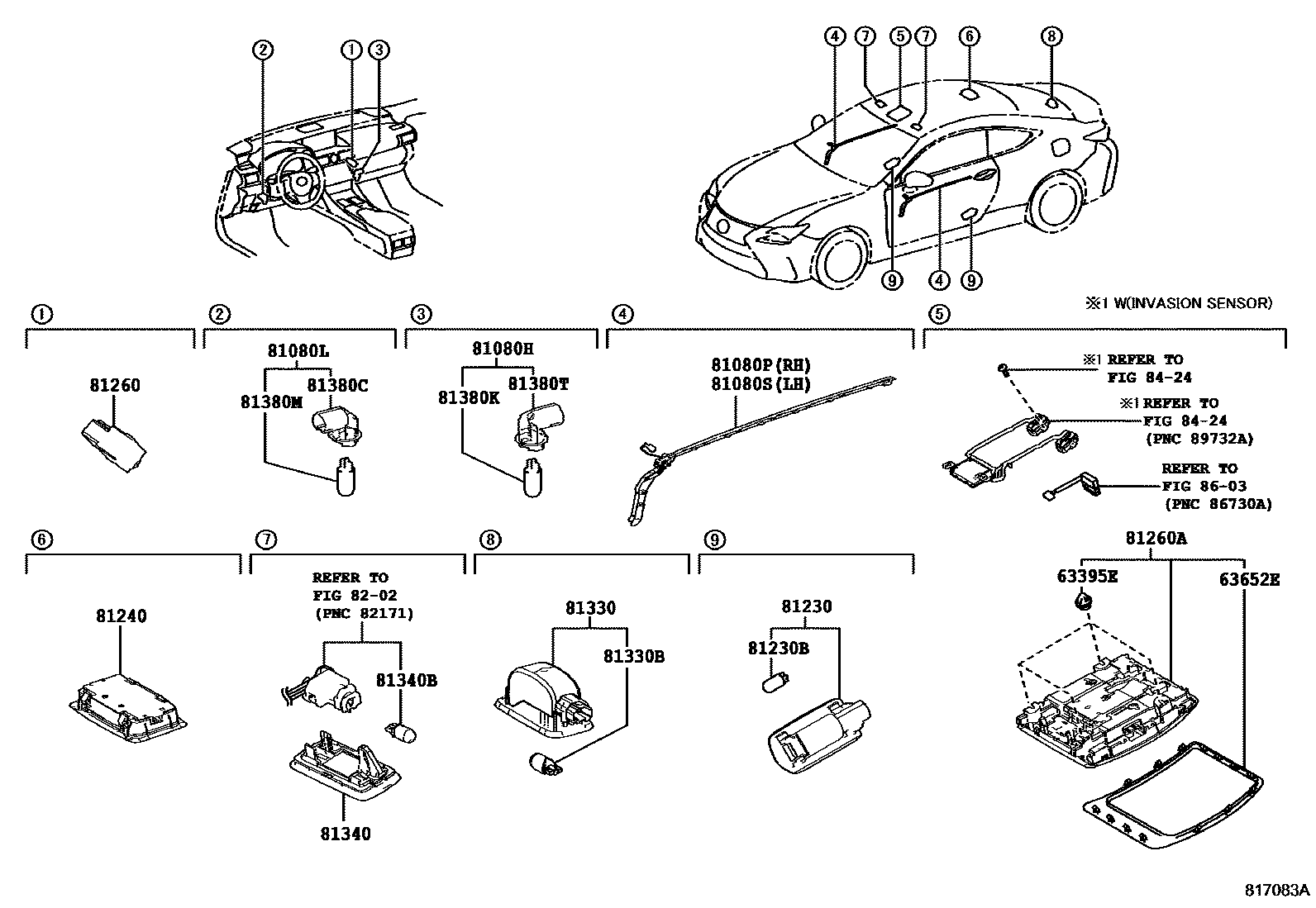

INTERIOR LAMP
63395ECLIP(FOR MAP LAMP)
NO.2
63652ECOVER, ROOF CONSOLE BOX, NO.1
BLACK,TRIM1#,2#,4#,5#
81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81080PLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080SLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81230LAMP ASSY, COURTESY
81230BBULB(FOR COURTESY LAMP)
12V 5W
81240LAMP ASSY, ROOM, NO.1
BLACK,TRIM1#,2#,3#,4#,5#
81260LAMP ASSY, GLOVE BOX
81260ALAMP ASSY, MAP
BLACK,TRIM1#,2#,3#,4#,5#
ANTI-THEFT SYSTEM-WITH(*SEH),BLACK,TRIM1#,2#,3#,4#,5#; ANTI-THEFT SYSTEM-WITH(*SEH),BLACK,TRIM1#,2#,4#,5#; ANTI-THEFT SYSTEM-WITHOUT,BLACK,TRIM1#,2#,3#,4#,5#; ANTI-THEFT SYSTEM-WITHOUT,BLACK,TRIM1#,2#,4#,5#; BLACK,TRIM1#,2#,3#,4#,5#
ANTI-THEFT SYSTEM-WITH(*SEH & *IS & *GBS),BLACK,TRIM1#,2#,3#,4#,5#; ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *GBS & *INC),BLACK,TRIM1#,2#,3#,4#,5#; ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *GBS),BLACK,TRIM1#,2#,3#,4#,5#
MOON ROOF-WITH,BLACK,TRIM1#,2#,4#,5#
ANTI-THEFT SYSTEM-WITH(*SEH & *IS & *GBS)&MOON ROOF-WITH,BLACK,TRIM1#,2#,3#,4#,5#; ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *GBS & *INC)&MOON ROOF-WITH,BLACK,TRIM1#,2#,3#,4#,5#; ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *GBS)&MOON ROOF-WITH,BLACK,TRIM1#,2#,3#,4#,5#
ANTI-THEFT SYSTEM-WITH(*SEH),BLACK,TRIM1#,2#,3#,4#,5#; ANTI-THEFT SYSTEM-WITHOUT,BLACK,TRIM1#,2#,3#,4#,5#; BLACK,TRIM1#,2#,3#,4#,5#
ANTI-THEFT SYSTEM-WITH(*SEH)&MOON ROOF-WITH,BLACK,TRIM1#,2#,3#,4#,5#; ANTI-THEFT SYSTEM-WITHOUT&MOON ROOF-WITH,BLACK,TRIM1#,2#,3#,4#,5#; MOON ROOF-WITH,BLACK,TRIM1#,2#,3#,4#,5#
ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *GBS & *INC)&MOON ROOF-WITH,BLACK,TRIM1#,2#,3#,4#,5#; ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *GBS)&MOON ROOF-WITH,BLACK,TRIM1#,2#,3#,4#,5#; MOON ROOF-WITH,BLACK,TRIM1#,2#,3#,4#,5#
ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *GBS & *INC),BLACK,TRIM1#,2#,3#,4#,5#; ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *GBS),BLACK,TRIM1#,2#,3#,4#,5#; BLACK,TRIM1#,2#,3#,4#,5#
ANTI-THEFT SYSTEM-WITH(*SEH)&MOON ROOF-WITH,BLACK,TRIM1#,2#,3#,4#,5#; ANTI-THEFT SYSTEM-WITH(*SEH)&MOON ROOF-WITH,BLACK,TRIM1#,2#,4#,5#; ANTI-THEFT SYSTEM-WITHOUT&MOON ROOF-WITH,BLACK,TRIM1#,2#,3#,4#,5#; ANTI-THEFT SYSTEM-WITHOUT&MOON ROOF-WITH,BLACK,TRIM1#,2#,4#,5#; MOON ROOF-WITH,BLACK,TRIM1#,2#,3#,4#,5#
ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *GBS & *INC)&MOON ROOF-WITH,BLACK,TRIM1#,2#,3#,4#,5#; ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *GBS)&MOON ROOF-WITH,BLACK,TRIM1#,2#,3#,4#,5#; MOON ROOF-WITH,BLACK,TRIM1#,2#,3#,4#,5#
KAZAKHSTAN SPEC&ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *GBS & *INC),BLACK,TRIM1#,2#,3#,4#,5#; RUSSIA SPEC&ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *GBS & *INC),BLACK,TRIM1#,2#,3#,4#,5#
KAZAKHSTAN SPEC&ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *GBS & *INC)&MOON ROOF-WITH,BLACK,TRIM1#,2#,3#,4#,5#; RUSSIA SPEC&ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *GBS & *INC)&MOON ROOF-WITH,BLACK,TRIM1#,2#,3#,4#,5#
ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *GBS & *INC),BLACK,TRIM1#,2#,3#,4#,5#; ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *GBS),BLACK,TRIM1#,2#,3#,4#,5#; BLACK,TRIM1#,2#,3#,4#,5#
AZERBAIJAN,ARMENIA,GEORGIA SPEC&MOON ROOF-WITH,BLACK,TRIM1#,2#,3#,4#,5#; BOSNIA HERCEGOVINA SPEC&MOON ROOF-WITH,BLACK,TRIM1#,2#,3#,4#,5#; SERBIA SPEC&MOON ROOF-WITH,BLACK,TRIM1#,2#,3#,4#,5#; UKRAINE SPEC&MOON ROOF-WITH,BLACK,TRIM1#,2#,3#,4#,5#
MOON ROOF-WITH,BLACK,TRIM0#,2#,3#,4#,5#
ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *GBS & *INC),BLACK,TRIM0#,2#,3#,4#,5#; ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *GBS),BLACK,TRIM0#,2#,3#,4#,5#; ARMENIA, GEORGIA SPEC,BLACK,TRIM0#,2#,3#,4#,5#; BLACK,TRIM0#,2#,3#,4#,5#; UKRAINE SPEC,BLACK,TRIM0#,2#,3#,4#,5#
ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *GBS & *INC)&MOON ROOF-WITH,BLACK,TRIM0#,2#,3#,4#,5#; ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *GBS)&MOON ROOF-WITH,BLACK,TRIM0#,2#,3#,4#,5#; ARMENIA, GEORGIA SPEC&MOON ROOF-WITH,BLACK,TRIM0#,2#,3#,4#,5#; MOON ROOF-WITH,BLACK,TRIM0#,2#,3#,4#,5#; UKRAINE SPEC&MOON ROOF-WITH,BLACK,TRIM0#,2#,3#,4#,5#
AZERBAIJAN,ARMENIA,GEORGIA SPEC&ANTI-THEFT SYSTEM-WITH(*SEH),BLACK,TRIM1#,2#,3#,4#,5#; AZERBAIJAN,ARMENIA,GEORGIA SPEC&ANTI-THEFT SYSTEM-WITHOUT,BLACK,TRIM1#,2#,3#,4#,5#; BOSNIA HERCEGOVINA SPEC&ANTI-THEFT SYSTEM-WITH(*SEH),BLACK,TRIM1#,2#,3#,4#,5#; BOSNIA HERCEGOVINA SPEC&ANTI-THEFT SYSTEM-WITHOUT,BLACK,TRIM1#,2#,3#,4#,5#; SERBIA SPEC&ANTI-THEFT SYSTEM-WITH(*SEH),BLACK,TRIM1#,2#,3#,4#,5#; SERBIA SPEC&ANTI-THEFT SYSTEM-WITHOUT,BLACK,TRIM1#,2#,3#,4#,5#; UKRAINE SPEC&ANTI-THEFT SYSTEM-WITH(*SEH),BLACK,TRIM1#,2#,3#,4#,5#; UKRAINE SPEC&ANTI-THEFT SYSTEM-WITHOUT,BLACK,TRIM1#,2#,3#,4#,5#
AZERBAIJAN,ARMENIA,GEORGIA SPEC&ANTI-THEFT SYSTEM-WITH(*SEH)&MOON ROOF-WITH,BLACK,TRIM1#,2#,3#,4#,5#; AZERBAIJAN,ARMENIA,GEORGIA SPEC&ANTI-THEFT SYSTEM-WITHOUT&MOON ROOF-WITH,BLACK,TRIM1#,2#,3#,4#,5#; BOSNIA HERCEGOVINA SPEC&ANTI-THEFT SYSTEM-WITH(*SEH)&MOON ROOF-WITH,BLACK,TRIM1#,2#,3#,4#,5#; BOSNIA HERCEGOVINA SPEC&ANTI-THEFT SYSTEM-WITHOUT&MOON ROOF-WITH,BLACK,TRIM1#,2#,3#,4#,5#; SERBIA SPEC&ANTI-THEFT SYSTEM-WITH(*SEH)&MOON ROOF-WITH,BLACK,TRIM1#,2#,3#,4#,5#; SERBIA SPEC&ANTI-THEFT SYSTEM-WITHOUT&MOON ROOF-WITH,BLACK,TRIM1#,2#,3#,4#,5#; UKRAINE SPEC&ANTI-THEFT SYSTEM-WITH(*SEH)&MOON ROOF-WITH,BLACK,TRIM1#,2#,3#,4#,5#; UKRAINE SPEC&ANTI-THEFT SYSTEM-WITHOUT&MOON ROOF-WITH,BLACK,TRIM1#,2#,3#,4#,5#
ANTI-THEFT SYSTEM-WITH(*SEH),BLACK,TRIM0#,2#,3#,4#,5#; ANTI-THEFT SYSTEM-WITHOUT,BLACK,TRIM0#,2#,3#,4#,5#; ARMENIA, GEORGIA SPEC&ANTI-THEFT SYSTEM-WITH(*SEH),BLACK,TRIM0#,2#,3#,4#,5#; ARMENIA, GEORGIA SPEC&ANTI-THEFT SYSTEM-WITHOUT,BLACK,TRIM0#,2#,3#,4#,5#; BLACK,TRIM0#,2#,3#,4#,5#; UKRAINE SPEC&ANTI-THEFT SYSTEM-WITH(*SEH),BLACK,TRIM0#,2#,3#,4#,5#; UKRAINE SPEC&ANTI-THEFT SYSTEM-WITHOUT,BLACK,TRIM0#,2#,3#,4#,5#
ANTI-THEFT SYSTEM-WITH(*SEH)&MOON ROOF-WITH,BLACK,TRIM0#,2#,3#,4#,5#; ANTI-THEFT SYSTEM-WITHOUT&MOON ROOF-WITH,BLACK,TRIM0#,2#,3#,4#,5#; ARMENIA, GEORGIA SPEC&ANTI-THEFT SYSTEM-WITH(*SEH)&MOON ROOF-WITH,BLACK,TRIM0#,2#,3#,4#,5#; ARMENIA, GEORGIA SPEC&ANTI-THEFT SYSTEM-WITHOUT&MOON ROOF-WITH,BLACK,TRIM0#,2#,3#,4#,5#; MOON ROOF-WITH,BLACK,TRIM0#,2#,3#,4#,5#; UKRAINE SPEC&ANTI-THEFT SYSTEM-WITH(*SEH)&MOON ROOF-WITH,BLACK,TRIM0#,2#,3#,4#,5#; UKRAINE SPEC&ANTI-THEFT SYSTEM-WITHOUT&MOON ROOF-WITH,BLACK,TRIM0#,2#,3#,4#,5#
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
12V 5W
81340LAMP ASSY, VANITY
81340BBULB (FOR VANITY LAMP)
12V 8W
81380CSOCKET, PLUG, NO.1
81380KBULB, INSTRUMET PANEL UNDER LAMP, NO.2
81380MBULB, INSTRUMET PANEL UNDER LAMP, NO.1
81380TSOCKET, PLUG, NO.2
8202WIRING & CLAMP
8424ANTI-THEFT DEVICE
8603NAVIGATION & FRONT MONITOR DISPLAY
22 parts on this diagram · 2 diagrams in section
