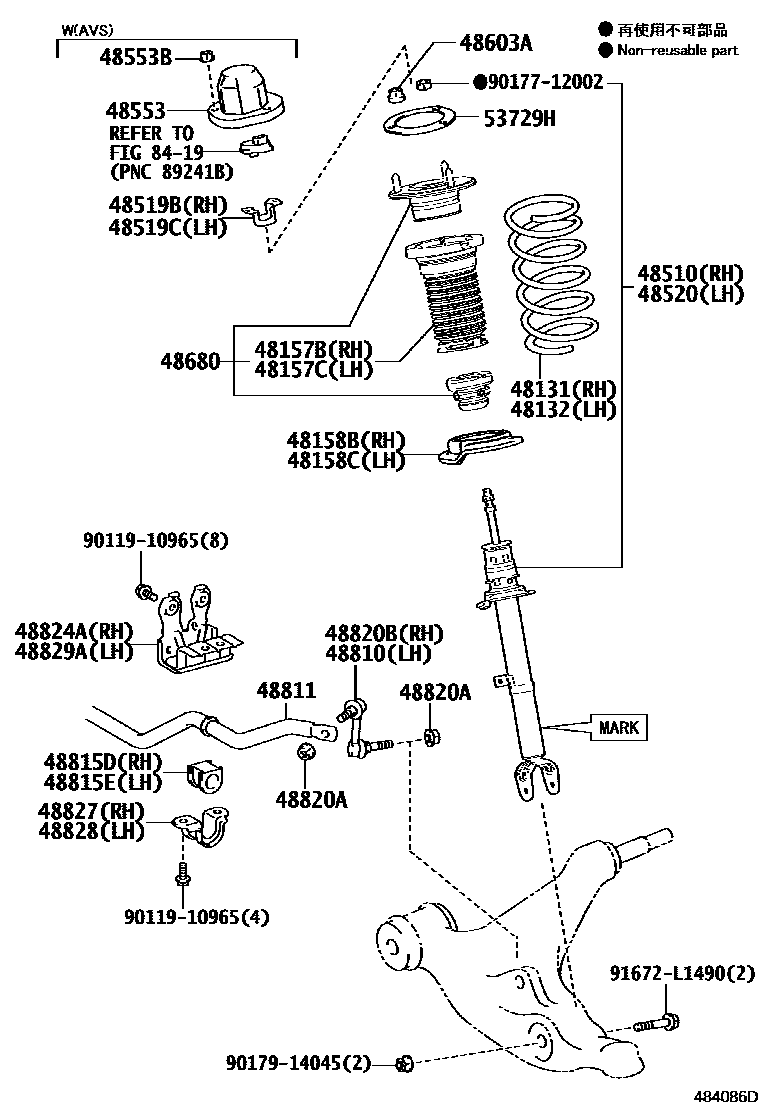

FRONT SPRING & SHOCK ABSORBER

48131SPRING, FRONT COIL, RH

main48131-24610iGSC10201409-202001

main48131-24611iASC10202002-202008

main48131-24630iAVC10201510-202001

main48131-24631iAVC10202002-202008

48132SPRING, FRONT COIL, LH

main48131-24610iASC10..RHD201409-202001

main48131-24611iASC10202002-202008

main48131-24630iAVC10201510-202001

main48131-24631iAVC10202002-202008

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-30090iAVC10;ASC10..LHD201409-202008

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-30090iASC10,AVC10201409-202008

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-30020iGSC10201409-202008

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-30020iGSC10201409-202008

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-80722iGSC10201409-201801

MARK 48510-24340

main48510-80A05iASC10..RHD201801-201810

MARK 48510-24341

main48510-80A62iASC10,AVC10201810-202008

MARK 48510-24450

48519BBRACKET, ACTUATOR SUPPORT, FRONT RH

48519CBRACKET, ACTUATOR SUPPORT, FRONT LH

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-80406iGSC10201409-201801

MARK 48520-24090

main48520-80571iASC10..RHD201801-201810

MARK 48520-24091

main48520-80622iASC10,AVC10201810-202008

MARK 48520-24180

48553CAP, SHOCK ABSORBER, UPPER

main48553-30100

main90179-10174

48553BNUT(FOR FRONT SHOCK ABSORBER CAP)

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10014iGSC10201409-202008

48680SUPPORT ASSY, FRONT SUSPENSION

main48680-24090iASC10..RHD201409-202008

48810LINK ASSY, FRONT STABILIZER, LH

main48810-30090iGSC10201409-202008

48811BAR, STABILIZER, FRONT

main48811-24140iGSC10201409-201711

main48811-30840iASC10..RHD201711-202008

48815DBUSH, FRONT STABILIZER BAR, RH

main48815-24100iGSC10201409-202008

48815EBUSH, FRONT STABILIZER BAR, LH

main48815-24100iGSC10201409-202008

48820ANUT(FOR FRONT STABILIZER LINK)

main94151-21241iGSC10201409-202008

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-30110iGSC10201409-202008

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48809-30130iGSC10201409-202008

48827BRACKET, FRONT STABILIZER, NO.2 RH

main48824-30150iGSC10201409-202008

48828BRACKET, FRONT STABILIZER, NO.2 LH

main48824-30150iGSC10201409-202008

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48809-30130iGSC10201409-202008

53729HREINFORCEMENT, FRONT SPRING SUPPORT, NO.3

main53729-53020iGSC10201409-202008

8419ELECTRONIC MODULATED SUSPENSION

→ Go to FIG 84-19

9011910965

main90119-10965

9017712002

main90177-12002

9017914045

main90179-14045

91672L1490

main91672-L1490

30 parts on this diagram · 1 diagram in section
